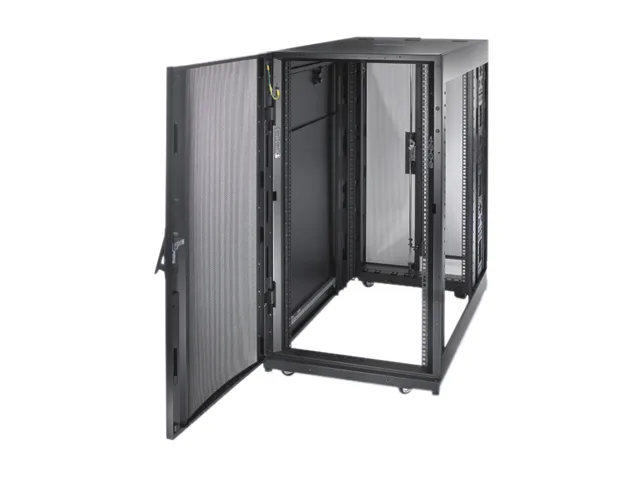

Black 24U server rack enclosure 600mm wide 1070mm deep with doors and side panels

APC

APC AR3104SP1 NetShelter SX 24U 600mm x 1070mm Server Rack

SKU CH-67T7-KSDPW MPN AR3104SP1

A 24U server rack holding up to 567 kg of equipment with adjustable 191 mm to 915 mm mounting depth and pre-installed casters

  • TypeRack Enclosure
  • Rack Units24U
  • ColorBlack
  • Weight Capacity1363.64 KG (static load), 1022.73 KG (dynamic load)
  • SpecificationMinimum Mounting Depth: 191.00 mm Maximum Mounting Depth: 91
  • FeaturesFeature-rich enclosures optimized for easy installation, man
  • 24U height fits dense server deployments in compact 600mm footprint
  • 64 KG static load capacity secures heavy converged systems
  • Adjustable 191.00 mm to 915.00 mm mounting depth accepts varied equipment
  • Pre-installed casters plus leveling feet enable easy positioning and stable installation
  • UL 2416 and ISTA 3E certifications confirm safe shipping and operational safety

24U Server Rack for 19-inch Equipment

This 24U NetShelter SX enclosure accepts all EIA-310-E compliant 19-inch devices. It suits server rooms and data centres that need a standard-width cabinet for mounting networking gear, servers and patch panels. The frame supports a static load of 1363.64 KG and a dynamic load of 1022.73 KG.

Mounting Depth Range and Load Limits

Equipment must fit within the adjustable mounting depth range of 191.00 mm to 915.00 mm. The cabinet itself weighs 89.09 KG and measures 1200.00 mm high, 600.00 mm wide and 1070.00 mm deep. It is certified to UL 2416 and tested to ISTA 3E shipping standards.

Floor Space and Access Requirements

Verify that the installation area accommodates the 600 mm by 1070 mm footprint plus clearance for door swing and cable management. The unit ships on a shock-absorbing pallet with ramps and pre-installed casters for positioning. Buyers needing more than 24U of rack space or a deeper maximum mounting depth should consider a larger enclosure.

Highlights

  • 24U height fits dense server deployments in compact 600mm footprint
  • 64 KG static load capacity secures heavy converged systems
  • Adjustable 191.00 mm to 915.00 mm mounting depth accepts varied equipment
  • Pre-installed casters plus leveling feet enable easy positioning and stable installation
  • UL 2416 and ISTA 3E certifications confirm safe shipping and operational safety

Specifications

BrandAPC
ModelAR3104SP1
TypeRack Enclosure
Rack Units24U
ColorBlack
Weight Capacity1363.64 KG (static load), 1022.73 KG (dynamic load)
SpecificationMinimum Mounting Depth: 191.00 mm
Maximum Mounting Depth: 915.00 mm
FeaturesFeature-rich enclosures optimized for easy installation, managing cables, integrating power distribution, and maximizing airflow.
Industry StandardEIA-310-E
Included AccessoryBaying hardware, Documentation CD, Doors, Installation guide, Keyed-alike doors and side panels, Leveling feet, Mounting Hardware, Pallet ramps, Pre-installed casters, Reusable packaging, Roof, Side Panels, User Manual.
Unit DimensionMaximum Height: 1200.00 mm
Maximum Width: 600.00 mm
Maximum Depth: 1070.00 mm
Unit Weight89.09 KG
Shipping weight106.82 kg
Package size1350 × 1219 × 899 mm

Questions about this item

Is the 24U height with a 600mm width and 1070mm depth the right size for my equipment?

The enclosure provides 24U of vertical space, a maximum mounting depth of 915mm, and a 600mm width that follows the EIA-310-E standard for 19-inch rack gear.

What does the 1363.64 kg static load rating mean once the rack is installed and loaded?

It confirms the cabinet can safely hold up to 1363.64 kg of stationary equipment on a level floor, while the dynamic rating of 1022.73 kg applies when the unit is moved on its pre-installed casters.

How does the EIA-310-E standard affect what I can mount and how deep the rails can go?

EIA-310-E guarantees vendor-neutral 19-inch mounting hole spacing, and the adjustable rails support equipment from 191mm up to 915mm deep within the 1070mm overall depth.
