Black 42U server rack enclosure 800mm wide by 1200mm deep with side panels and doors

APC

APC AR2580 NetShelter SV 42U 800mm x 1200mm server rack

SKU CH-1YME-9AEMP MPN AR2580

A 42U floor-standing enclosure measuring 800mm wide by 1200mm deep with pre-installed casters, keyed-alike doors, side panels and baying hardware for 19-inch equipment

  • TypeWall Mount Cabinet
  • Rack Units42U
  • SpecificationForm Factor:19" 42U
  • FeaturesPackage Contents: NetShelter SV 42U 800mm Wide x 1200mm Deep
  • Unit DimensionHeight:81.0" x Width:31.5" x Depth:47.2"
  • Unit Weight306.90 lb
  • 42U capacity fits dense server deployments in standard 19-inch form factor
  • 800mm width and 1200mm depth accommodate deep equipment and cable management
  • Pre-installed casters and leveling feet enable mobility and stable positioning
  • Keyed-alike doors and side panels provide unified physical security
  • Baying hardware and bolt-down brackets included for multi-rack integration

42U 19-inch Server Rack

The APC AR2580 NetShelter SV is a 42U floor-standing enclosure built to the 19-inch standard. It ships with side panels, keyed-alike doors, leveling feet, pre-installed casters and four bolt-down brackets. The cabinet suits data-centre rows or server rooms that need a full-height rack with integrated mobility and physical security.

Physical Constraints of the 19-inch Form Factor

The 19-inch mounting width fixes the usable space between the front and rear rails, so equipment depth must fit within the 1200 mm overall depth. The 800 mm width allows side cable routing but limits the number of rack-mount PDUs or vertical managers that can be added. Baying hardware is included, yet the unit weight of 306.90 lb means structural floor loading must be verified before installation.

Capacity and Headroom for Dense Deployments

Forty-two rack units give ample vertical space for dense blade chassis, storage arrays or mixed compute nodes. The 1200 mm depth accommodates deep servers and rear-door heat exchangers without blocking rear-door closure. Casters ease positioning, but the bolt-down brackets are required for seismic or permanent installations. Buyers needing more than 42U of contiguous height or a narrower footprint for tight aisles should consider alternative form factors.

Highlights

  • 42U capacity fits dense server deployments in standard 19-inch form factor
  • 800mm width and 1200mm depth accommodate deep equipment and cable management
  • Pre-installed casters and leveling feet enable mobility and stable positioning
  • Keyed-alike doors and side panels provide unified physical security
  • Baying hardware and bolt-down brackets included for multi-rack integration

Specifications

BrandAPC
ModelAR2580
TypeWall Mount Cabinet
Rack Units42U
SpecificationForm Factor:19" 42U
FeaturesPackage Contents:
NetShelter SV 42U 800mm Wide x 1200mm Deep Enclosure with Sides Black
Baying Hardware
Doors
Key(s)
Keyed-Alike Doors
Side Panels
Leveling Feet
Mounting Hardware
Pre-Installed Casters
4 x Bolt-Down Brackets
Roof
Side Panels
Unpacking Sheet
Unit DimensionHeight:81.0" x Width:31.5" x Depth:47.2"
Unit Weight306.90 lb
Shipping weight160.06 kg
Package size2210 × 1250 × 850 mm

Questions about this item

Should I choose the 800 mm wide version or a narrower rack for my 19-inch equipment?

The 800 mm width provides extra side clearance for cable management and PDU mounting while still accepting standard 19-inch gear.

What does the 42U height mean for actual server installation?

You gain 42 rack units of vertical space, allowing up to 42 single-U devices or a mix of taller servers within the 81.0-inch overall height.

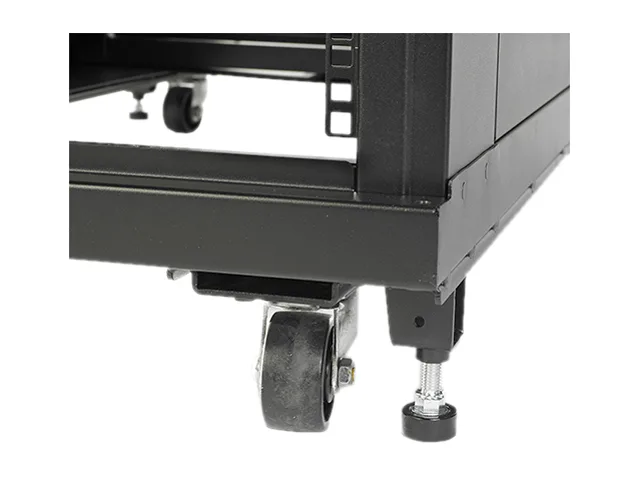

How do the pre-installed casters and leveling feet work together on a 306.90 lb cabinet?

Casters let you roll the empty rack into position; once placed, the leveling feet take the weight and lock it securely to the floor.
