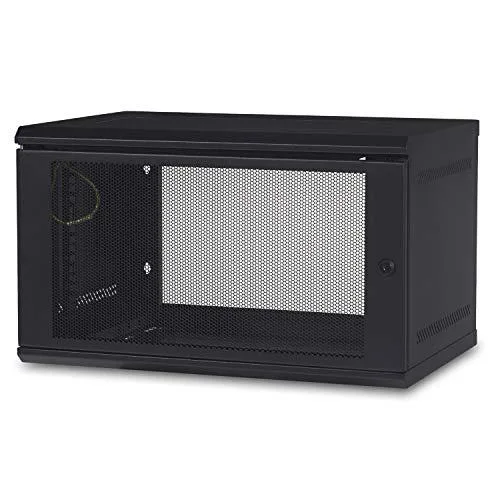

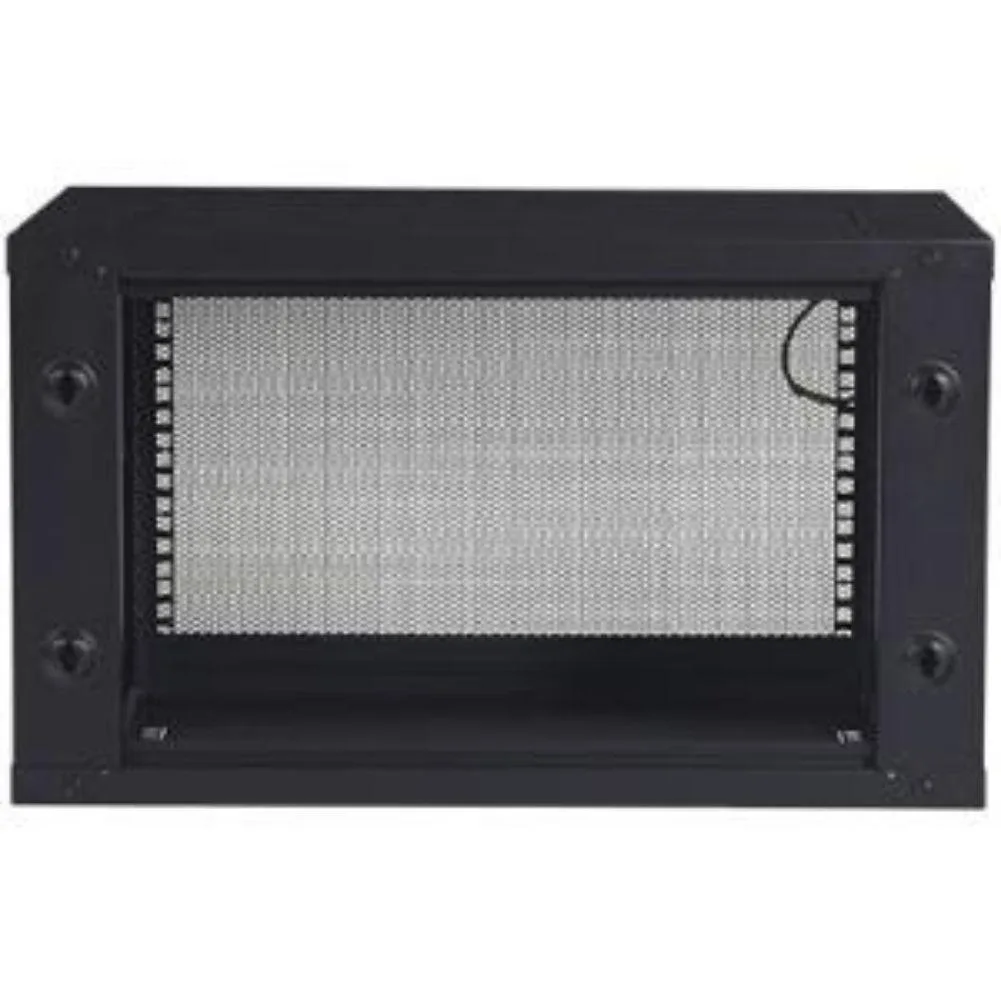

Black wall-mount server cabinet 6U 19in rack 12.95in deep

APC

APC AR106 6U Wall Mount Server Rack 19" 12.95" Deep

SKU CH-N3N7-9X33Q MPN AR106

A 6U wall-mount cabinet with 19-inch rack width and 12.95-inch depth for servers or LAN switches

  • TypeWall Mount Cabinet
  • Rack Units6U
  • SpecificationForm Factor:Wall Mountable
  • Unit DimensionHeight:14" x Width:23.6" x Depth:15.7"
  • Unit Weight20.70 lb
  • 6U height fits six rack units in a 14" tall cabinet
  • 19" rack width accepts standard servers and LAN switches
  • 95" usable depth suits compact equipment
  • Wall-mountable design saves floor space in small rooms
  • 42 lb static weight capacity supports heavy hardware

Wall Mount Cabinet 6U 19" 12.95" Deep

The APC AR106 is a 6U wall mount cabinet designed for servers and LAN switches in space constrained environments. It provides a 19 inch rack width and 12.95 inch rack depth within a 14 by 23.6 by 15.7 inch footprint. The unit weighs 20.70 lb and mounts directly to a wall. It suits small offices or branch locations needing secure equipment housing.

Capacity and Weight Limits

The cabinet supports a static stationary weight capacity of 200.42 lb for installed hardware. Six rack units accommodate patch panels, a small switch and a short depth server or appliance. Deeper servers or multi U storage arrays will exceed the 12.95 inch usable depth. Buyers needing more rack space or deeper equipment should consider floor standing alternatives.

Wall Mount Installation Constraints

Wall mounting requires a structure capable of holding the cabinet plus the full 200.42 lb load. The 15.7 inch overall depth projects from the wall and must clear doors or walkways. No floor space is used but vertical clearance for 6U height is needed. The fixed depth cannot be adjusted for longer chassis.

Highlights

  • 6U height fits six rack units in a 14" tall cabinet
  • 19" rack width accepts standard servers and LAN switches
  • 95" usable depth suits compact equipment
  • Wall-mountable design saves floor space in small rooms
  • 42 lb static weight capacity supports heavy hardware

Specifications

BrandAPC
ModelAR106
TypeWall Mount Cabinet
Rack Units6U
SpecificationForm Factor:Wall Mountable
Unit DimensionHeight:14" x Width:23.6" x Depth:15.7"
Unit Weight20.70 lb
Shipping weight14.97 kg
Package size673 × 483 × 279 mm

Questions about this item

Will the 12.95-inch rack depth fit my existing 19-inch patch panel and switch?

The cabinet provides 12.95 inches of usable rack depth and a 19-inch mounting width, so standard patch panels and switches that meet those dimensions will install directly.

How can I confirm the AR106 is securely mounted after installation?

Verify the cabinet is level, all mounting bolts are torqued to the wall structure, and the total loaded weight does not exceed the 200.42 lb static capacity.

Does the AR106 ship with cage nuts and wall anchors, or must I buy them separately?

The unit includes the wall-mount cabinet itself; cage nuts, screws, and appropriate wall anchors for your specific wall type are not included and must be purchased separately.
