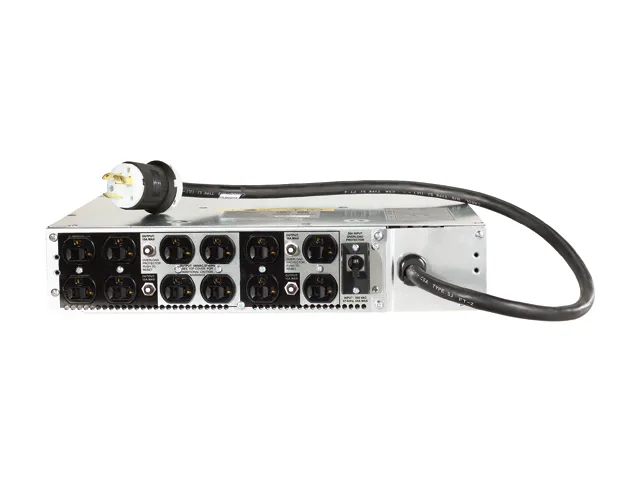

Silver 2U rack-mount transformer with twelve NEMA 5-20R outlets and NEMA L6-30P input

APC

APC AP9626 30A 208V to 120V Step-Down Transformer Power Inverter

SKU CH-1XTD-SRN60 MPN AP9626

A 2U rack-mountable step-down transformer converts 208V input to 120V output at 30A with twelve NEMA 5-20R receptacles

  • Input208V
  • Maximum Input Amps / Watts30A
  • Output Voltage120V AC
  • FeaturesStep down transformer placed upstream of the UPS to avoid in
  • Steps 208 V down to 120 V for compatible equipment
  • Handles 30 A input current without oversizing
  • Mounts in a 19-inch rack using 2U space
  • Provides 12 NEMA 5-20R outlets for multiple loads
  • Weighs 95 lb for stable installation

Purpose-built voltage conversion

The APC AP9626 is a 30A step-down transformer that accepts 208V input and delivers 120V AC output for rack-mounted equipment. It installs in a standard 19-inch rack using the included mounting brackets and occupies 2U of space.

Suited for mixed-voltage racks

This unit serves environments where 208V supply must feed 120V loads without oversizing the transformer, and its design limits inrush current and saturation. It does not suit installations that require 208V output, higher amperage than 30A, or a non-rack form factor.

Bundled hardware simplifies deployment

The package supplies rack-mounting brackets and a user manual so the transformer can be secured and configured immediately. These items remove the need to source separate mounting hardware or documentation for initial setup.

Highlights

  • Steps 208 V down to 120 V for compatible equipment
  • Handles 30 A input current without oversizing
  • Mounts in a 19-inch rack using 2U space
  • Provides 12 NEMA 5-20R outlets for multiple loads
  • Weighs 95 lb for stable installation

Specifications

BrandAPC
ModelAP9626
Input208V
Maximum Input Amps / Watts30A
Output Voltage120V AC
FeaturesStep down transformer placed upstream of the UPS to avoid inrush current and saturation eliminating need to oversize transformer
APC Step-Down Transformer , Input: 208V , Input Connections: NEMA L6-30P , Output: 120V , Output Connections: NEMA 5-20R
Shipping weight49.90 kg
Package size787 × 660 × 254 mm

Questions about this item

What input receptacle must my facility provide for the AP9626 to connect?

The unit requires a NEMA L6-30P receptacle delivering 208 V at up to 30 A per phase.

Can I keep my existing 120 V equipment that uses NEMA 5-20 plugs?

Yes, the transformer provides 12 x NEMA 5-20R outlets at 120 V, each rated for 20 A.

How do I confirm the AP9626 is delivering 120 V after installation?

Measure the output receptacles with a multimeter; they should read 120 V AC nominal when the input is live.
