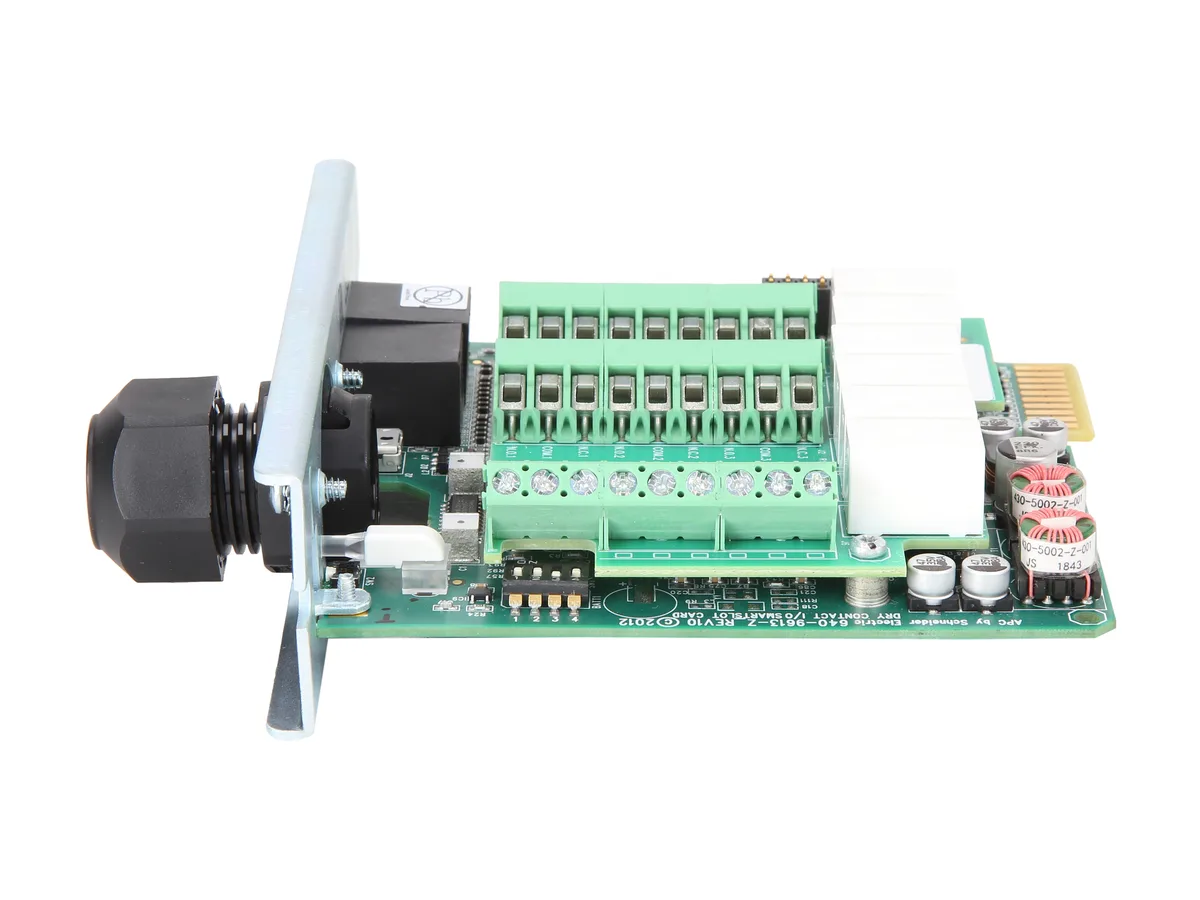

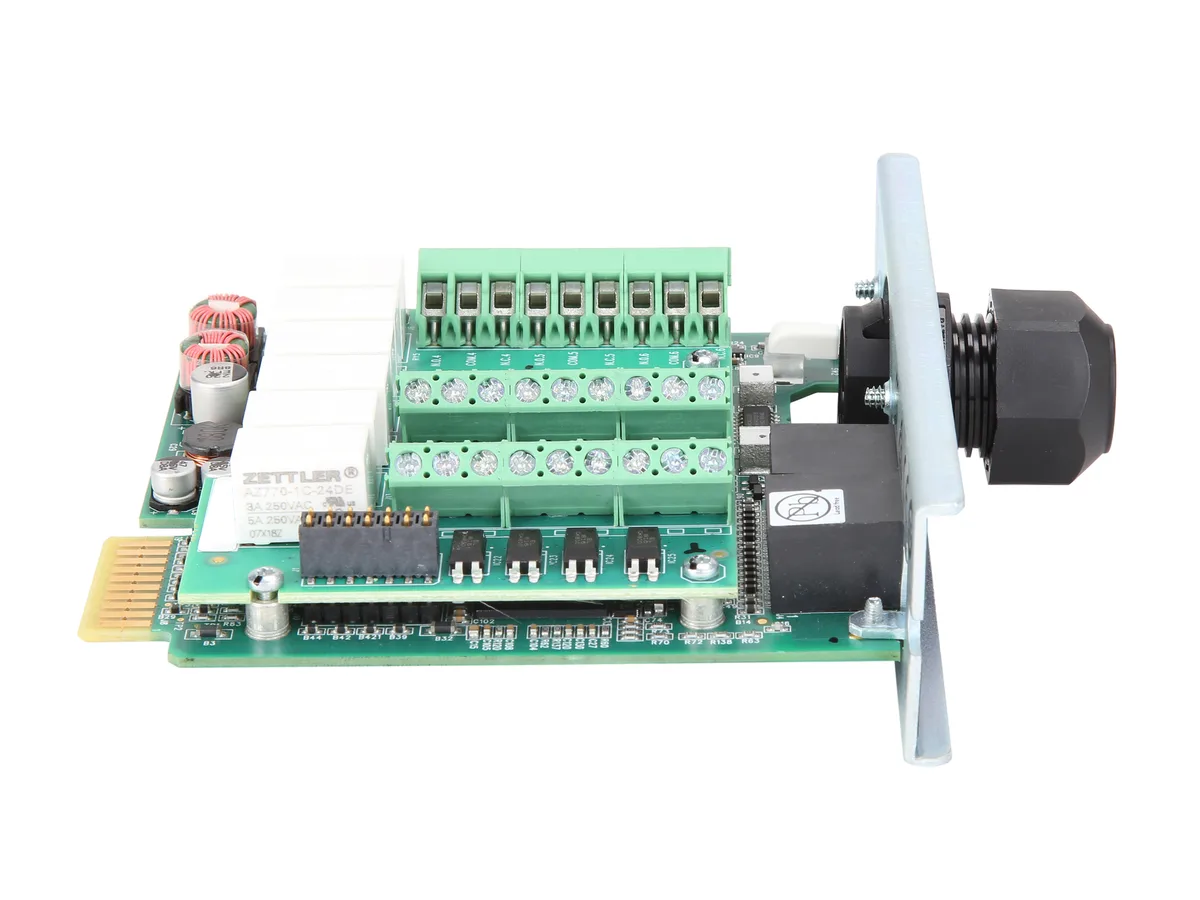

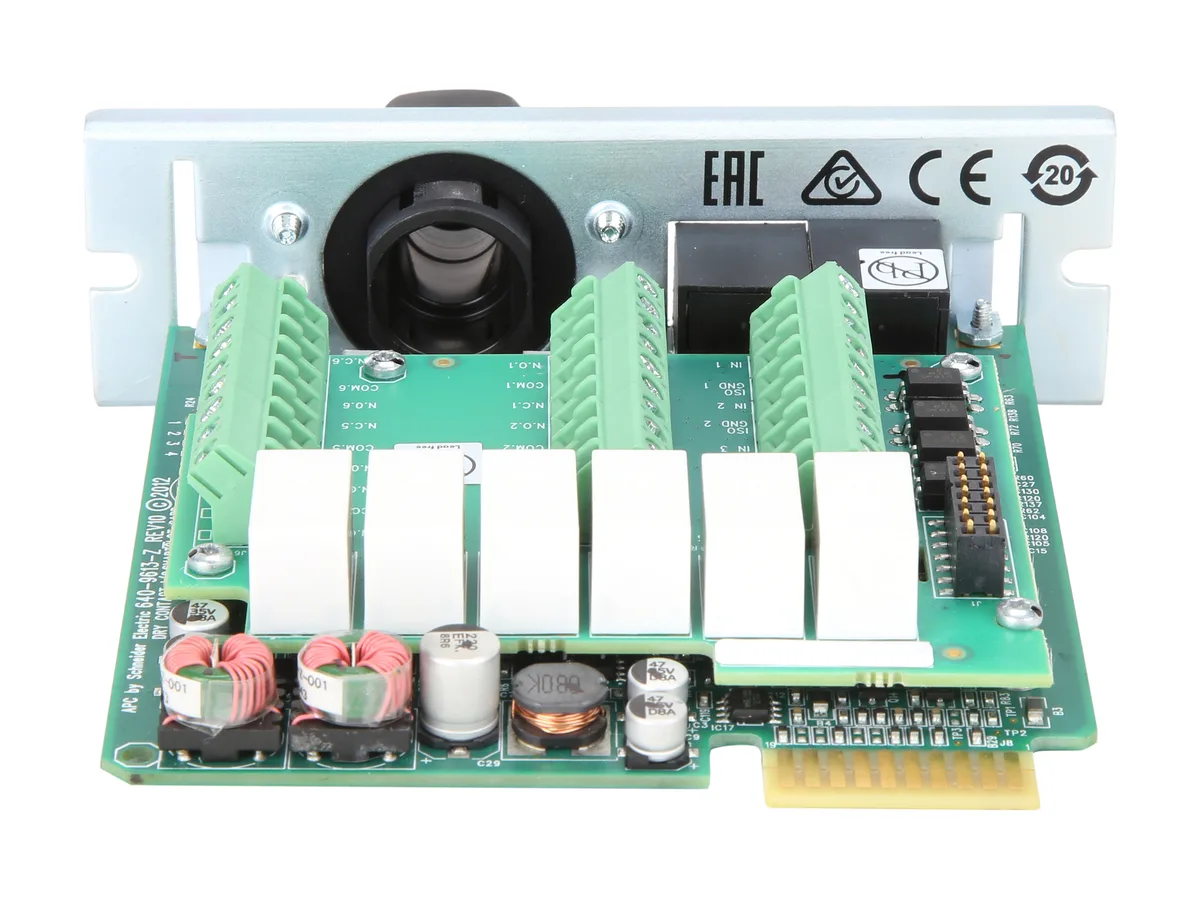

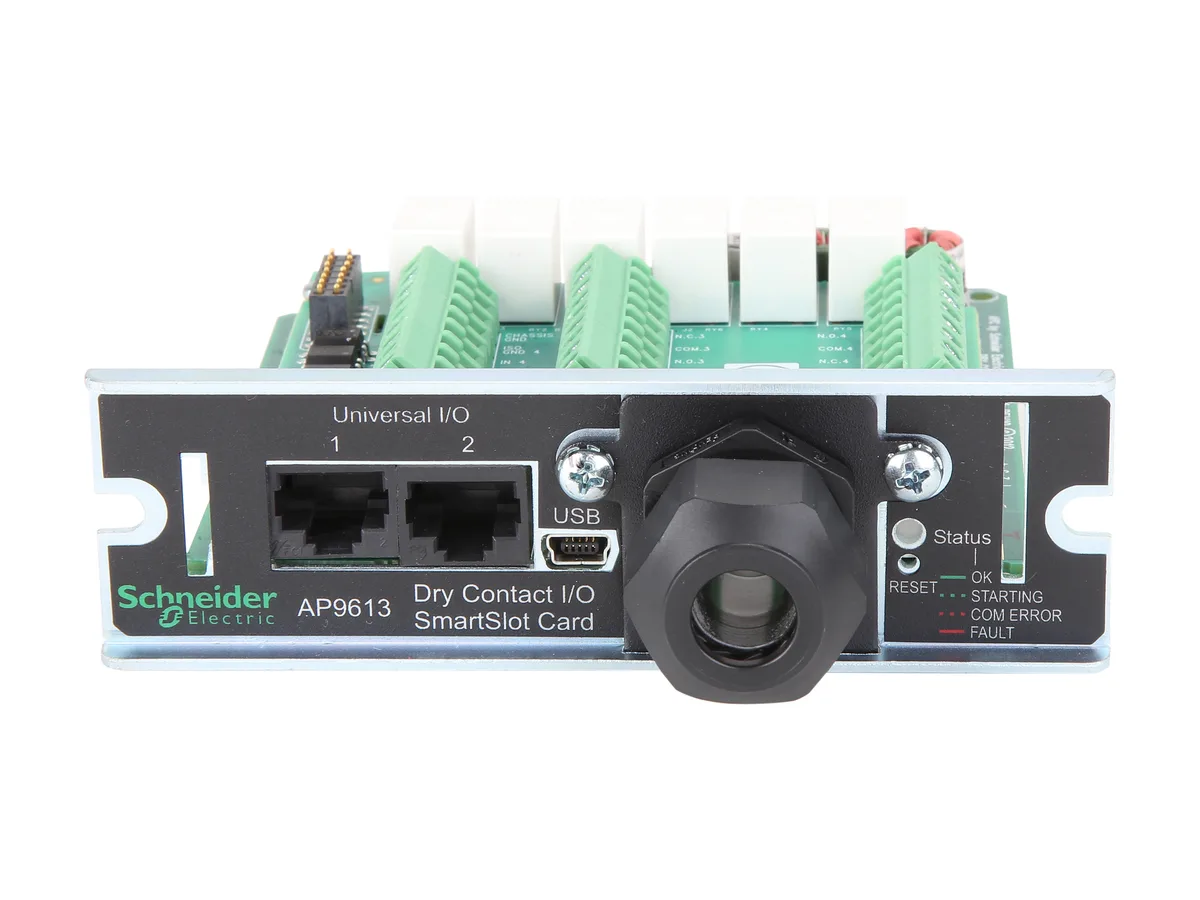

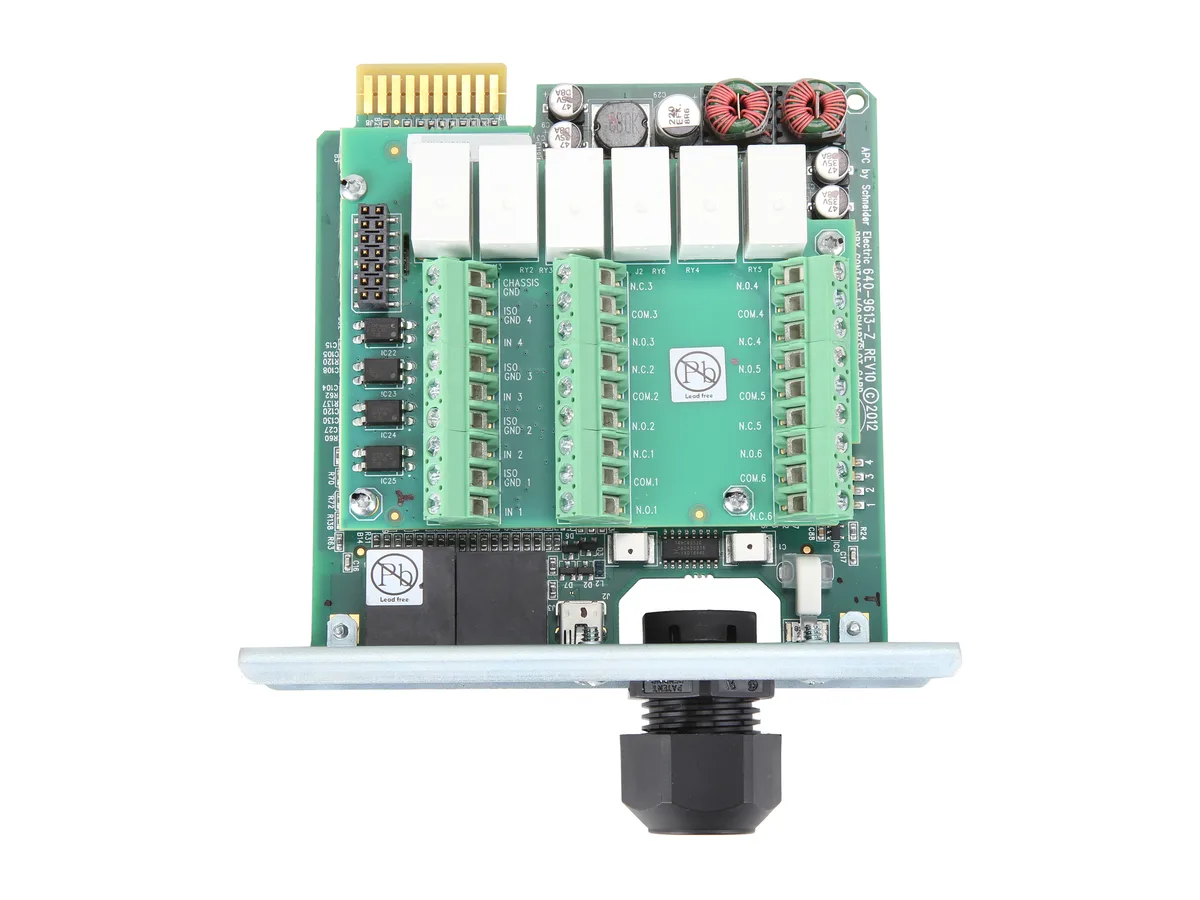

APC AP9613 Relay I/O SmartSlot module, rectangular card with metal bracket, green PCB visible, DB9 and terminal block connectors

APC

APC AP9613 Relay I/O SmartSlot Module accessory

SKU CH-R73S-3PKPD MPN AP9613

SmartSlot module provides six configurable output relays and optional dry-contact I/O for UPS monitoring and external device control

  • TypeModule
  • CompatibilityUPC
  • Features6 Configurable Output Relays In response to the UPS or input
  • Dimensions4.75" x 4.5" x 1.5" (H x W x D)
  • Weight0.46 lbs.
  • Control external devices via 6 configurable output relays
  • Trigger actions on state changes with optional delay
  • Monitor power status through dry-contact interface
  • Fits standard SmartSlot with compact 4.75" x 4.5" x 1.5" form factor
  • Lightweight .46 lbs module adds management without bulk

Relay I/O SmartSlot Module

The APC AP9613 is a Relay I/O SmartSlot module designed for UPS management expansion. It provides six configurable output relays that trigger actions on external devices when the UPS or input contacts change state. This accessory suits administrators who need dry-contact control and monitoring for power infrastructure. It is not suited for installations that lack a compatible SmartSlot bay.

Six configurable output relays

Each relay responds to UPS or input-contact state changes with an optional customisable delay. The dry-contact interface allows direct integration with building-management or alarm systems. This specification determines whether the module can drive the external circuits your environment requires.

Installs into a SmartSlot bay

The card measures 4.75" x 4.5" x 1.5" and weighs .46 lbs, fitting the standard slot without tools. Installation fails if the UPS firmware does not recognise the AP9613 or if the slot is already occupied by another management card.

Highlights

  • Control external devices via 6 configurable output relays
  • Trigger actions on state changes with optional delay
  • Monitor power status through dry-contact interface
  • Fits standard SmartSlot with compact 4.75" x 4.5" x 1.5" form factor
  • Lightweight .46 lbs module adds management without bulk

Specifications

BrandAPC
ModelAP9613
TypeModule
CompatibilityUPC
Features6 Configurable Output Relays In response to the UPS or input contacts changing states, and optionally including a customizable delay, trigger actions on external devices.
Optional Dry Contact I/O Accessory Each Dry Contact I/O Accessory increases the number of input contacts by 2 and output relays by 1
Expandable Input and Output Ports Supports the Temperature Sensor, Temperature and Humidity Sensor and Dry Contact I/O Accessory
4 Configurable Input Contacts Monitor external devices to trigger actions such as notifications or a change in output relay state with custom delay
Compatibl
Dimensions4.75" x 4.5" x 1.5" (H x W x D)
Weight0.46 lbs.
Shipping weight0.91 kg
Package size235 × 159 × 51 mm

Questions about this item

How do the six configurable output relays behave once the card is installed in a UPS?

Each relay changes state when the UPS or input contacts change, and you can add a custom delay before the relay triggers an external device.

What SmartSlot interface does the AP9613 use and what does it connect to?

The card fits an APC SmartSlot bay and provides a dry-contact interface for monitoring and controlling power equipment.

What are the exact dimensions and weight for rack-mount planning?

The module measures 4.75 inches high by 4.5 inches wide by 1.5 inches deep and weighs .46 lbs.
