Silver horizontal 1U rack PDU with ten front outlets and a 12 ft cord

APC

APC AP9563 Basic PDU 1U 100-120V 20A 10x5-20R 12ft

SKU CH-SRB2-WGZSK MPN AP9563

Distributes 120 V power to ten NEMA 5-20R outlets from a single 20 A NEMA 5-20P input with a 12 ft cord in a 1U horizontal rack-mount unit

  • TypeBasic
  • Rack Size1U
  • StyleHorizontal
  • Front Panel LEDs1U
  • CertificationscUL Recognized,CSA,UL 1363,UL Recognized
  • Input Voltage100V, 120V
  • Distributes power to ten rack devices from one branch whip
  • 1U horizontal form factor fits standard rack enclosures

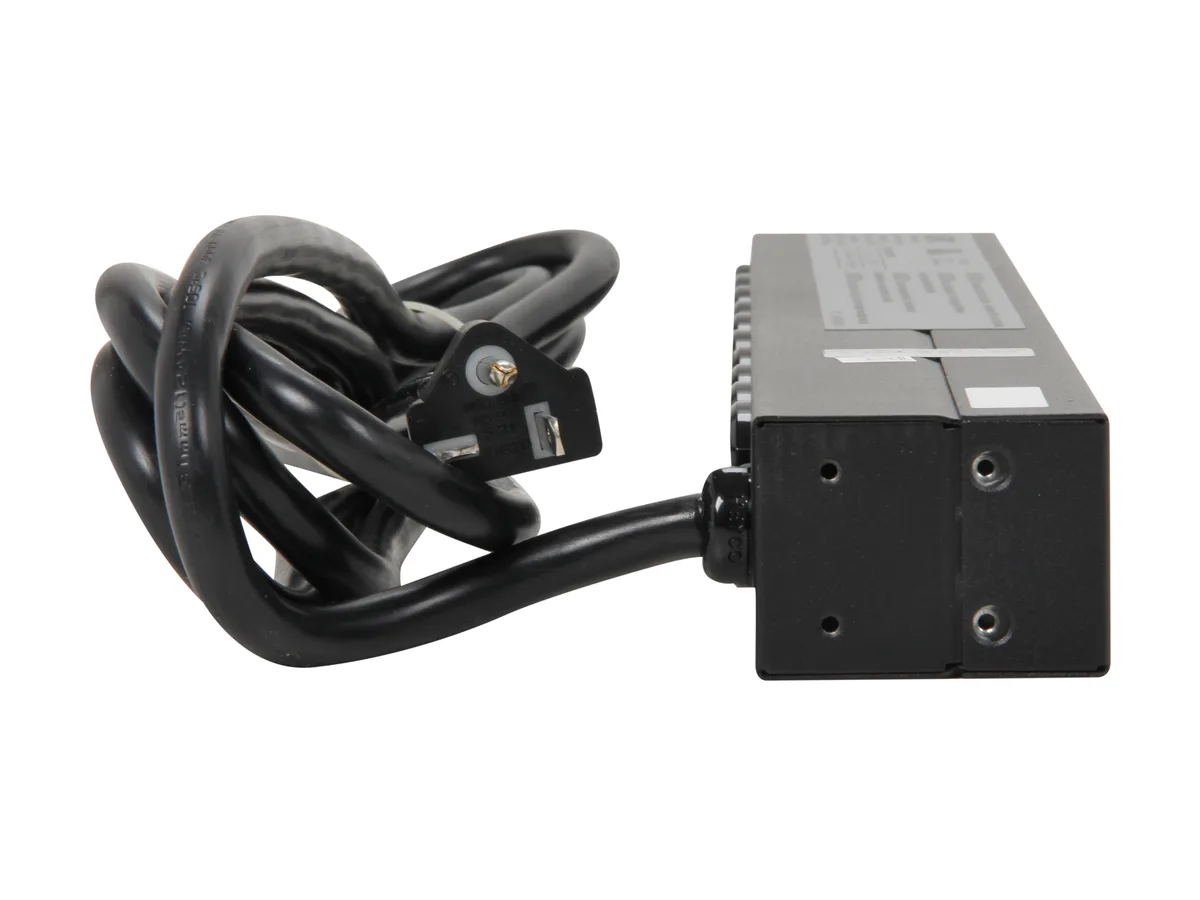

  • 12 ft input cord with NEMA 5-20P plug reaches distant power sources
  • Supports up to 2400 VA load at 120 V output
  • Certified to UL 1363, cUL and CSA safety standards

Rackmount PDU for 120V server racks

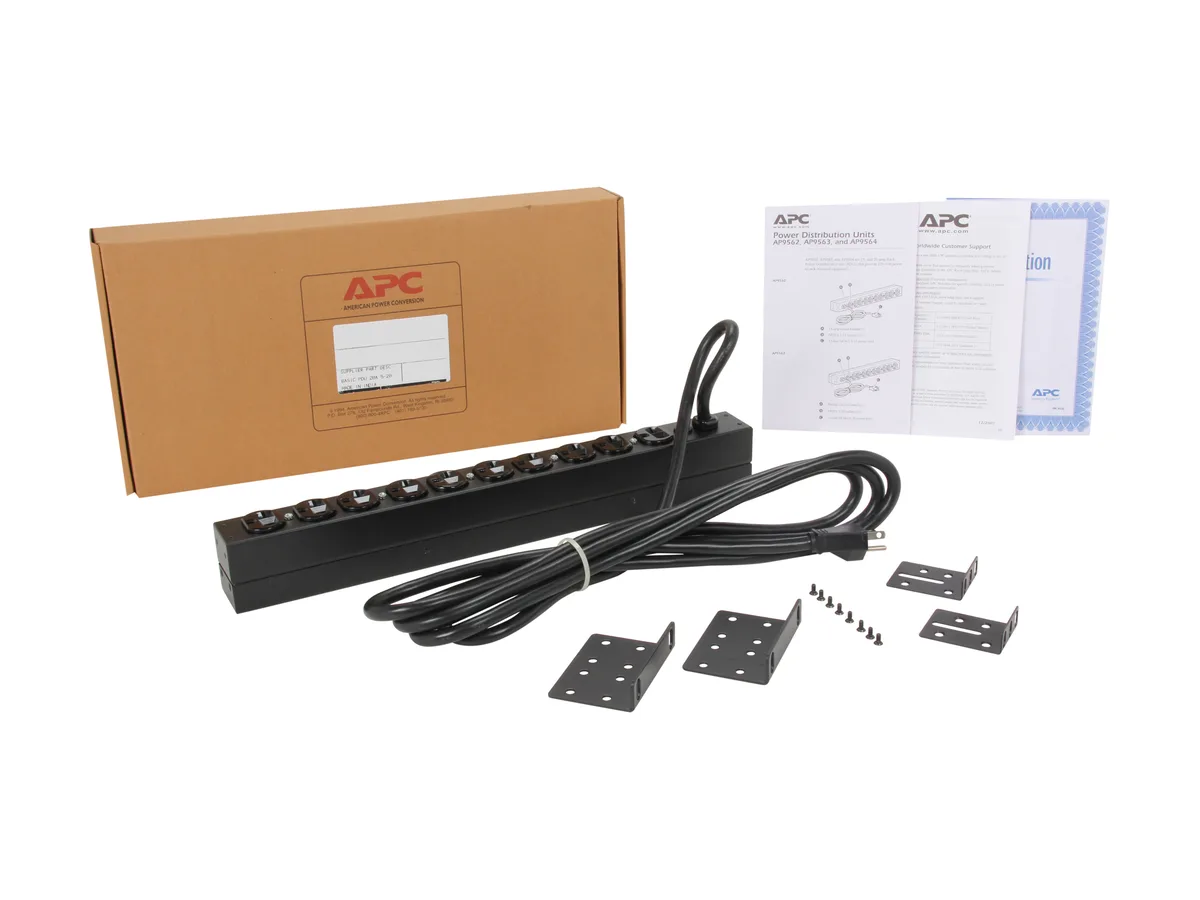

The APC AP9563 is a basic 1U horizontal power distribution unit that accepts a single 100V to 120V branch circuit and provides ten NEMA 5-20R outlets for rack-mounted equipment. It connects through a 12 ft cord terminated with a NEMA 5-20P plug and is certified to cUL, CSA and UL 1363 standards. The unit includes mounting brackets and an installation guide for immediate deployment.

Thermal and electrical behaviour in normal operation

The PDU operates reliably from -5 °C to 45 °C at up to 95 percent relative humidity and elevations up to 10000 ft. Input frequency is 50 or 60 Hz with a maximum input current of 20A, though regulatory derating limits continuous draw to 16A. Total load capacity is 2400 VA, and the unit produces no audible fan noise because it contains no active cooling components.

Sustained load characteristics

Under continuous load the PDU remains within its 16A derated rating as long as the connected equipment does not exceed 2400 VA. The 12 ft input cord and horizontal 1U form factor keep power distribution close to the rack without adding thermal load to the enclosure. Storage tolerance extends from -25 °C to 65 °C, allowing the unit to withstand non-operational temperature extremes between deployments.

Highlights

  • Distributes power to ten rack devices from one branch whip
  • 1U horizontal form factor fits standard rack enclosures
  • 12 ft input cord with NEMA 5-20P plug reaches distant power sources
  • Supports up to 2400 VA load at 120 V output
  • Certified to UL 1363, cUL and CSA safety standards

Specifications

BrandAPC
ModelAP9563
TypeBasic
Rack Size1U
StyleHorizontal
Front Panel LEDs1U
CertificationscUL Recognized,CSA,UL 1363,UL Recognized
Input Voltage100V, 120V
Input Frequency50/60 Hz
Maximum Input Current20A
Regulatory Derated Input Current16A
Input Connector(s)NEMA 5-20P
Cord Length12 ft
Output Voltage120V
Output Watts (VA)Load Capacity: 2400 VA
Output Connector(s)10 x NEMA 5-20R (Battery Backup)
Operating Environment-5 - 45 ºC
Operating Relative Humidity0 - 95%
Operating Elevation0 - 10000 ft ( 0 - 3000 meters )
Storage Temperature-25 - 65 ºC
Storage Relative Humidity0 - 95%
Storage Elevation0-50000ft ( 0-15000meters )
FeaturesAPC Basic Rack 2.4kVA PDU - 10 x NEMA 5-20R - 2.4kVA - 1U 19" Rack-mountable
DimensionsH x W x D: 1.75" x 17.60" x 2.25"
Weight5.50 lbs.
Shipping weight4.08 kg
Package size660 × 381 × 330 mm

Questions about this item

How do I mount the 1U horizontal PDU in a standard rack, and which step is often missed?

Attach the included rack-mounting brackets to the unit, then secure the brackets to the rack rails with cage nuts or screws; the step often missed is tightening both front and rear bracket screws to prevent the PDU from sagging under cable weight.

What maintenance or replacement will the AP9563 need during its service life?

No user-serviceable parts are inside; periodically inspect the 12 ft input cord and NEMA 5-20P plug for damage, verify that the 10 NEMA 5-20R outlets grip plugs firmly, and keep ventilation paths clear so the unit stays within its -5 to 45 °C operating range.

What is the first limit reached when the PDU runs near full load continuously?

The regulatory derated input current of 16 A is the first limit; although the breaker is rated at 20 A, sustained loads above 1.9 kW (16 A at 120 V) exceed the derated rating and will trip the breaker or violate code compliance.
