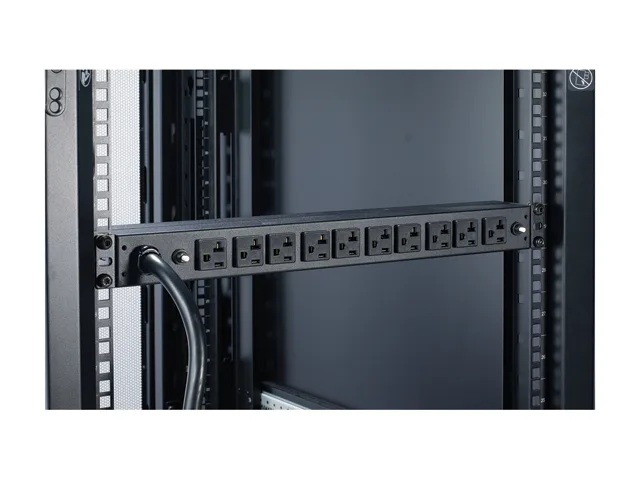

Black metal 1U rack PDU with ten front outlets and a 12 ft cord ending in a locking plug

APC

APC AP9560 Basic PDU 1U 100-120V 30A 10x5-20R 12ft

SKU CH-JTY1-RMRA6 MPN AP9560

Distributes 120 V power to ten NEMA 5-20R outlets from a single 30 A NEMA L5-30P input with a 12 ft cord in a 1U rackmount unit

  • TypeBasic
  • Rack Size1U
  • CertificationscUL Listed,CSA,UL 60950,UL Listed
  • Input Voltage100V,120V
  • Input Frequency50/60 Hz
  • Maximum Input Current30A
  • Distributes 2880 VA to ten NEMA 5-20R outlets
  • 30 A input via NEMA L5-30P plug with 12 ft cord
  • Fits 1U horizontal rack space for dense deployments
  • Certified to UL 60950, cUL Listed and CSA standards
  • Derated 24 A continuous load protects branch circuits

Basic 30A Rack PDU for 1U Installations

The APC AP9560 is a new basic power distribution unit that mounts horizontally in a single rack unit. It accepts 100-120V input through a NEMA L5-30P plug on a 12 ft cord and delivers 120V output across ten NEMA 5-20R receptacles. The unit is rated for 2880 VA with a regulatory derated input current of 24A.

Suited for dense 120V rack rows.

This PDU fits administrators who need simple, high-density 120V power distribution in a 1U horizontal form factor. The ten 5-20R outlets support typical North American rack gear without extra adapters. Sites that require outlet-level metering, remote switching, or environmental sensors should select a managed PDU instead.

Single-branch 30A input with ten 5-20R outputs

The defining specification is the NEMA L5-30P input feeding ten NEMA 5-20R outlets at 2880 VA. Verify that your facility provides a 30A 120V branch circuit and that your equipment uses 5-20P plugs before ordering.

Highlights

  • Distributes 2880 VA to ten NEMA 5-20R outlets
  • 30 A input via NEMA L5-30P plug with 12 ft cord
  • Fits 1U horizontal rack space for dense deployments
  • Certified to UL 60950, cUL Listed and CSA standards
  • Derated 24 A continuous load protects branch circuits

Specifications

BrandAPC
ModelAP9560
TypeBasic
Rack Size1U
CertificationscUL Listed,CSA,UL 60950,UL Listed
Input Voltage100V,120V
Input Frequency50/60 Hz
Maximum Input Current30A
Regulatory Derated Input Current24A
Input Connector(s)NEMA L5-30P
Cord Length12 ft
Output Voltage120V
Output Watts (VA)2880 VA
Output Connector(s)(10) NEMA 5-20R
Weight7.15 lbs.
Shipping weight4.08 kg
Package size486 × 177 × 146 mm

Questions about this item

How do I decide between the 10-outlet 1U model and other configurations?

This unit provides ten NEMA 5-20R outlets in a single 1U horizontal rack space, suited for dense 120 V equipment rows.

What does the 2880 VA rating mean for my connected gear?

It represents the maximum apparent power the PDU can distribute; the regulatory derated input current is 24 A, so plan loads accordingly.

What does the NEMA L5-30P input plug cap in practice?

The locking L5-30P plug connects to a 30 A, 120 V branch circuit and the 11.8 ft cord reaches distant power sources.
