APC

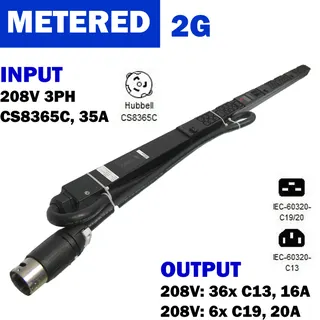

APC AP8868 Metered PDU 10.0kW 208V 3PH 35A CS8365 (36) C13 (6) C19
A metered power distribution unit delivering 10.0 kW at 208 V three-phase with 36 C13 and 6 C19 outlets, 35 A input via CS8365 plug, and real-time load monitoring
- TypeMetered
- Rack Size0U
- CertificationscUL Listed,EN 55022 Class A,EN 55024,EN 61000-3-2,EN 61000-3
- ROHSYes
- Input Voltage208V 3PH
- Input Frequency50/60 Hz
- Metered monitoring enables energy optimisation and circuit protection
- 0 kW output at 208 V three-phase powers dense rack loads
- 35 A maximum input current with CS8365 connector fits 35 A branch circuits
- 36 C13 plus 6 C19 outlets support mixed-density equipment
- ZeroU vertical form factor preserves horizontal rack space
10 kW 3-phase metered PDU
The APC AP8868 is a ZeroU metered rack power distribution unit rated for 10.0 kW at 208 V three-phase with a 35 A CS8365 input. It suits data-centre operators who need per-outlet energy visibility and overload alerts on high-density racks.
36 C13 and 6 C19 outlets
The unit provides thirty-six IEC 320 C13 and six IEC 320 C19 receptacles, allowing mixed server and networking gear to connect without adapter cables. Active metering with user-defined alarm thresholds delivers real-time local and remote warnings before a circuit approaches its 35 A limit.
208 V three-phase supply and 6 ft cord
Verify that the facility delivers 208 V three-phase power at 50 or 60 Hz and that the CS8365 plug matches the upstream receptacle. The 1.83 m cord length restricts placement to within that distance of the source, and the operating envelope is 0 to 55 °C at up to 95 % humidity.
Highlights
- Metered monitoring enables energy optimisation and circuit protection
- 0 kW output at 208 V three-phase powers dense rack loads
- 35 A maximum input current with CS8365 connector fits 35 A branch circuits
- 36 C13 plus 6 C19 outlets support mixed-density equipment
- ZeroU vertical form factor preserves horizontal rack space
Specifications
| Brand | APC |
|---|---|
| Model | AP8868 |
| Type | Metered |
| Rack Size | 0U |
| Certifications | cUL Listed,EN 55022 Class A,EN 55024,EN 61000-3-2,EN 61000-3-3,FCC Part 15 Class A,ICES-003,UL Listed,VCCI Class A |
| ROHS | Yes |
| Input Voltage | 208V 3PH |
| Input Frequency | 50/60 Hz |
| Maximum Input Current | 35A |
| Input Connector(s) | CS8365 |
| Cord Length | 6 ft |
| Output Voltage | 208V |
| Output Watts (VA) | 10.0kW |
| Output Connector(s) | (36) IEC 320 C13 (6) IEC 320 C19 |
| Overload Protection | Yes |
| Operating Environment | 0 - 55 degree C |
| Operating Relative Humidity | 5 - 95% |
| Operating Elevation | 0 - 3000 m |
| Storage Temperature | -25 - 65 ºC |
| Storage Relative Humidity | 5 - 95% |
| Storage Elevation | 0 - 15000 m |
| Features | APC Rack PDU 2G, Metered, ZeroU, 10.0kW, 208V, (36) C13 & (6) C19 - 36 x IEC 60320 C13, 6 x IEC 60320 C19 - 10 kVARack-mountable |
| Dimensions | 72.01" x 2.2" x 2.01" |
| Weight | 18.78 lbs. |
Questions about this item
When will the IEC 320 C13 and C19 outlets need replacement under normal rack use?
The outlets are rated for the unit's 35 A maximum current draw and 10.0 kW capacity; replacement is only required if physical damage or overheating occurs during operation within the 0–55 °C range.
What is the first limit reached when running the PDU continuously at full 10.0 kW load?
The 35 A input current limit on the CS8365 connector is reached before any thermal or voltage threshold at 208 V three-phase.
How much heat does the AP8868 add to the rack when metering 10.0 kW all day?
As a passive distribution unit it adds negligible heat; the rack environment must simply stay within the 0–55 °C operating temperature and 5–95 % humidity limits.
