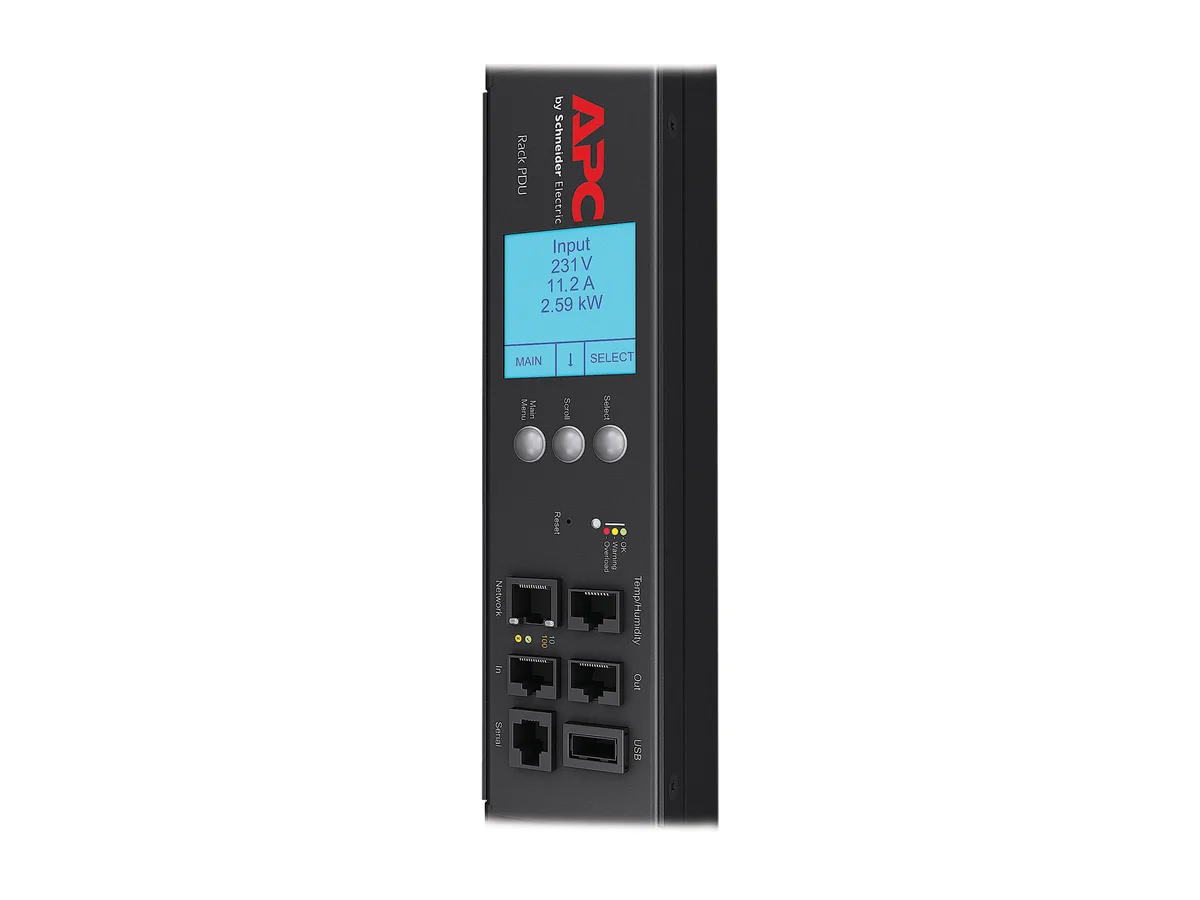

Vertical black metal PDU with 36 C13 and 6 C19 outlets, NEMA L6-30P plug, 9.8 ft cord

APC

APC AP8841 Metered PDU 200-208V 30A 36×C13 6×C19 0U Vertical

SKU CH-E5RJ-BYP63 MPN AP8841

A metered PDU delivering 200-208V power with 36 C13 and 6 C19 outlets, NEMA L6-30P input, and remote monitoring for load management

  • TypeMetered
  • CertificationsCSA C22.2 No. 60950, IEC 60950, METI Denan, UL 60950-1, VDE
  • ROHSYes
  • Input Voltage200 V, 208 V, 230 V
  • Input Frequency50/60 Hz
  • Maximum Input Current30A
  • Active metering enables energy optimisation and circuit protection
  • 36 C13 plus 6 C19 outlets power dense rack equipment
  • 0U vertical mount saves horizontal rack space
  • 24 A derated input prevents overload on 30 A circuits

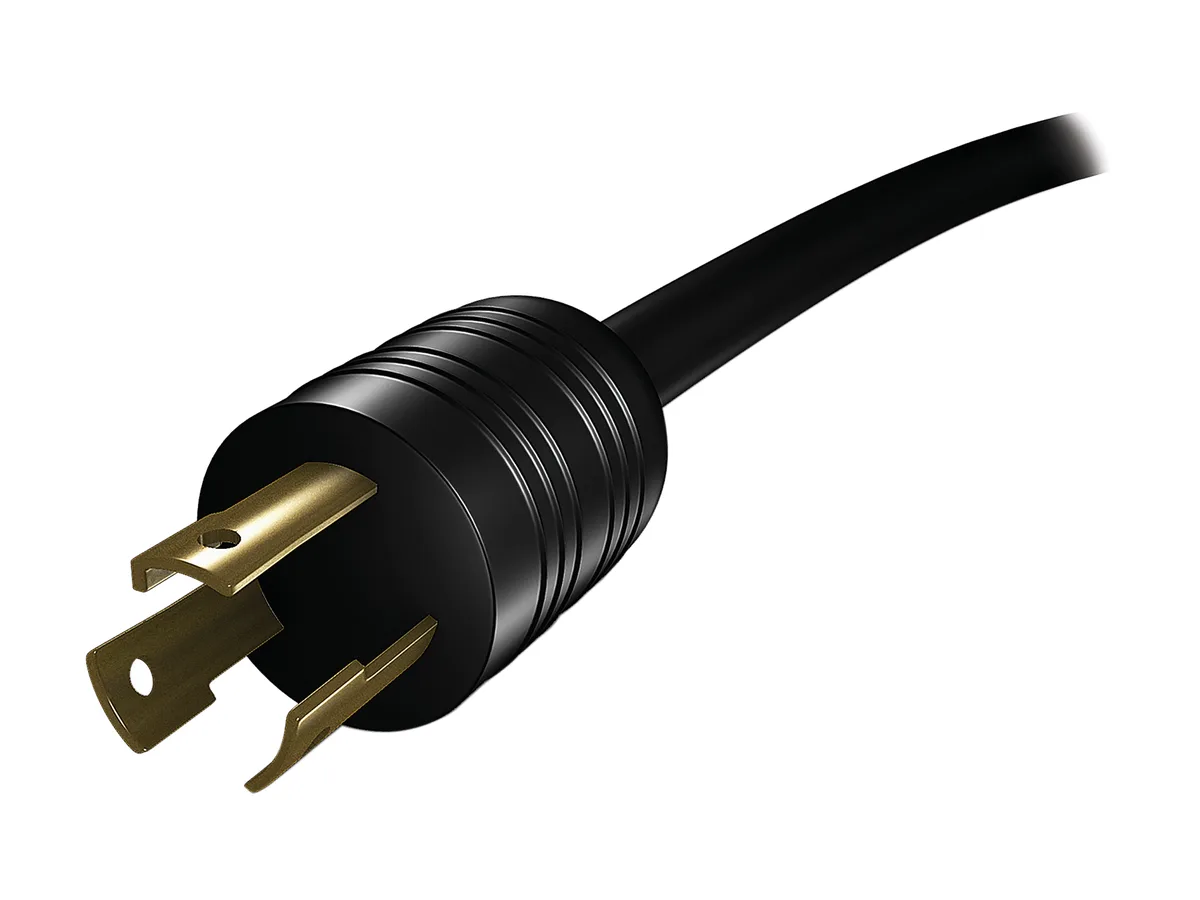

  • 8 ft cord with NEMA L6-30P reaches distant power sources

Rack PDU for metered power distribution

The APC AP8841 is a metered vertical rack Power Distribution Unit built for 200-208 V three-phase environments. It delivers 36 IEC C13 and 6 IEC C19 outlets from a single NEMA L6-30P input. Data-centre operators use it to monitor real-time load and receive SNMP or web alerts before circuits reach the 24 A derated limit.

Verify input voltage and receptacle match

Confirm your facility supplies 200 V, 208 V or 230 V at 50/60 Hz and that the upstream breaker can sustain 30 A through a NEMA L6-30P plug. The 9.84 ft cord must reach the panel without strain. Ensure attached equipment uses C13 or C19 plugs and that total draw stays within the 5.0 kW rated capacity.

Zero-U vertical mount saves rack space

The 0U form factor mounts in the rear of standard cabinets without consuming horizontal U height, freeing room for servers and switches. Locking IEC receptacles prevent accidental disconnects under vibration. A temperature-humidity sensor port adds environmental monitoring while ultra-low-profile breakers keep the profile tight against the rack rail.

Highlights

  • Active metering enables energy optimisation and circuit protection
  • 36 C13 plus 6 C19 outlets power dense rack equipment
  • 0U vertical mount saves horizontal rack space
  • 24 A derated input prevents overload on 30 A circuits
  • 8 ft cord with NEMA L6-30P reaches distant power sources

Specifications

BrandAPC
ModelAP8841
TypeMetered
CertificationsCSA C22.2 No. 60950,
IEC 60950,
METI Denan,
UL 60950-1,
VDE
ROHSYes
Input Voltage200 V, 208 V, 230 V
Input Frequency50/60 Hz
Maximum Input Current30A
Regulatory Derated Input Current24A
Input Connector(s)NEMA L6-30P
Cord Length9.84 ft.
Output Voltage200 V, 208 V
Output Connector(s)IEC 320 C13
IEC 320 C19
Overload ProtectionYes
Operating Environment5 - 45 Celcius degree
Operating Relative Humidity5 - 95%
Operating Elevation0-10000 feet (0-3000 meters)
Storage Temperature-25 - 65 Celcius degree
Storage Relative Humidity5 - 95%
Storage Elevation0 - 50000 Feet
FeaturesColor: Black
Dimensions70.51" x 2.20" x 1.73"
Weight15.08 lbs.
Shipping weight9.12 kg
Package size1994 × 114 × 114 mm

Questions about this item

Does the AP8841 include mounting brackets or do I need to order them separately?

The PDU is designed for 0U vertical mounting in a standard rack; brackets are integrated so no separate kit is required.

Should I choose the 36 C13 plus 6 C19 outlet mix or a different configuration for my servers?

This model provides exactly 36 IEC C13 and 6 IEC C19 outlets, suited for a blend of standard and high-density equipment.

What does the 30 A / 5.0 kW rating mean once the unit is installed in my rack?

The regulatory derated limit is 24 A, giving up to 5.0 kW at 200-208 V for continuous three-phase load balancing.
