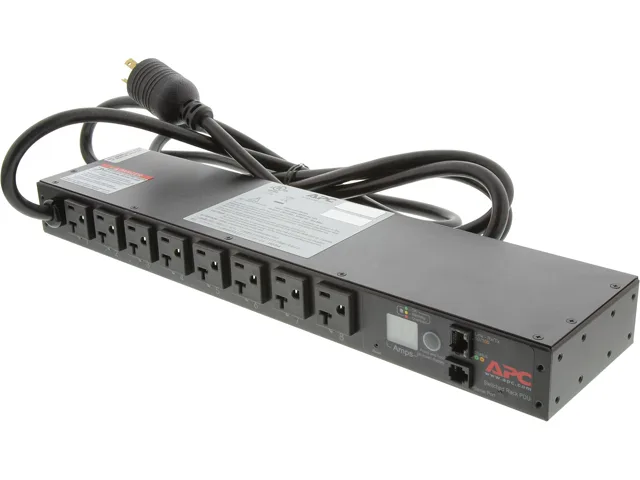

Black metal 1U rackmount power strip with eight front outlets and a long cord

APC

APC AP7901B Switched PDU 1U 20A 120V 8 Outlets

SKU CH-MWPN-RA8N9 MPN AP7901B

A 1U rackmount switched PDU delivering 120 V through eight NEMA 5-20R outlets with remote on/off control and a 12 ft NEMA L5-20P input cord

  • TypeSee Details
  • Rack Size1U
  • StyleRackmount
  • CertificationscUL Listed, CSA, FCC Part 15 Class A, ICES-003, Industry Can
  • Input Voltage120V
  • Input Frequency50/60 Hz
  • Switched outlet control enables remote power cycling per socket
  • 1U rackmount design fits standard cabinets with 1.73" height
  • 12 ft input cord with NEMA L5-20P plug reaches distant power sources
  • Eight NEMA 5-20R outlets deliver 120 V power to connected equipment
  • cUL and UL 60950 listings confirm tested electrical safety

Switched PDU for rack power management

The APC AP7901B is a 1U rackmount power distribution unit that delivers switched outlet control for IT equipment. It accepts a 120V 20A supply through a NEMA L5-20P plug and provides eight NEMA 5-20R outlets. Network administrators can remotely cycle power on individual outlets to reboot hung servers or sequence startup order.

Outlet-level switching and sequencing

The switched architecture lets operators turn each of the eight outlets on or off independently over the network. This enables remote reboot of locked-up devices without a site visit and supports ordered power-up sequences to avoid inrush currents. The 12 ft input cord gives flexibility when connecting to a branch circuit or upstream UPS.

16 A derated continuous load limit

Although the input plug is rated for 20 A, regulatory derating restricts continuous draw to 16 A. The unit operates between 0 °C and 45 °C at up to 95 % relative humidity and up to 3000 m elevation. It carries cUL, CSA, FCC Part 15 Class A and UL 60950 certifications for compliance in commercial environments.

Highlights

  • Switched outlet control enables remote power cycling per socket
  • 1U rackmount design fits standard cabinets with 1.73" height
  • 12 ft input cord with NEMA L5-20P plug reaches distant power sources
  • Eight NEMA 5-20R outlets deliver 120 V power to connected equipment
  • cUL and UL 60950 listings confirm tested electrical safety

Specifications

BrandAPC
ModelAP7901B
TypeSee Details
Rack Size1U
StyleRackmount
CertificationscUL Listed, CSA, FCC Part 15 Class A, ICES-003, Industry Canada, UL 60950, UL Listed
Input Voltage120V
Input Frequency50/60 Hz
Maximum Input Current20A
Regulatory Derated Input Current16A
Input Connector(s)NEMA L5-20P
Cord Length12 ft
Output Connector(s)(8) NEMA 5-20R (Battery Backup)
Operating Environment32 - 113 degree F (0 - 45 degree C)
Operating Relative Humidity0 - 95 %
Operating Elevation0 - 3000 m
Storage Temperature-25 - 65 ºC
Storage Relative Humidity0 - 95%
Storage Elevation0 - 15000 m
Dimensions1.73" x 17.50" x 4.25"
Weight5.00 lbs.
Shipping weight4.04 kg
Package size489 × 343 × 70 mm

Questions about this item

Will the NEMA L5-20P input cord need periodic inspection or replacement?

The 12 ft cord is fixed to the unit; inspect it during routine rack maintenance and replace the entire PDU if the plug or cable shows damage.

Which limit appears first when the PDU runs continuously at high load?

The regulatory derated input current of 16 A is the effective continuous ceiling, lower than the 20 A plug rating.

How loud is the fan when the AP7901B operates all day in a 45 °C rack?

The unit has no internal fan, so it adds no audible noise; heat is dissipated passively within the 0 – 45 °C operating range.
