Four aqua duplex fibre cables with LC connectors, eight metres each

AOSU

AOSU OM4 LC-LC Duplex Fibre Optic Cable 8 m 4-pack

SKU CH-NJ0N-MGPE5

Four eight-metre OM4 duplex patch cables with LC connectors, 50/125 µm multimode fibre, LSZH jacket and 7.5 mm bend radius for 10G, 40G and 100G links up to 300 m

  • Supports 10G, 40G and 100G Ethernet links
  • 4-pack OM4 duplex cables, each 8 m long
  • 5 mm bend radius for dense cabinet routing
  • Low 0.3 dB insertion loss and 30 dB return loss

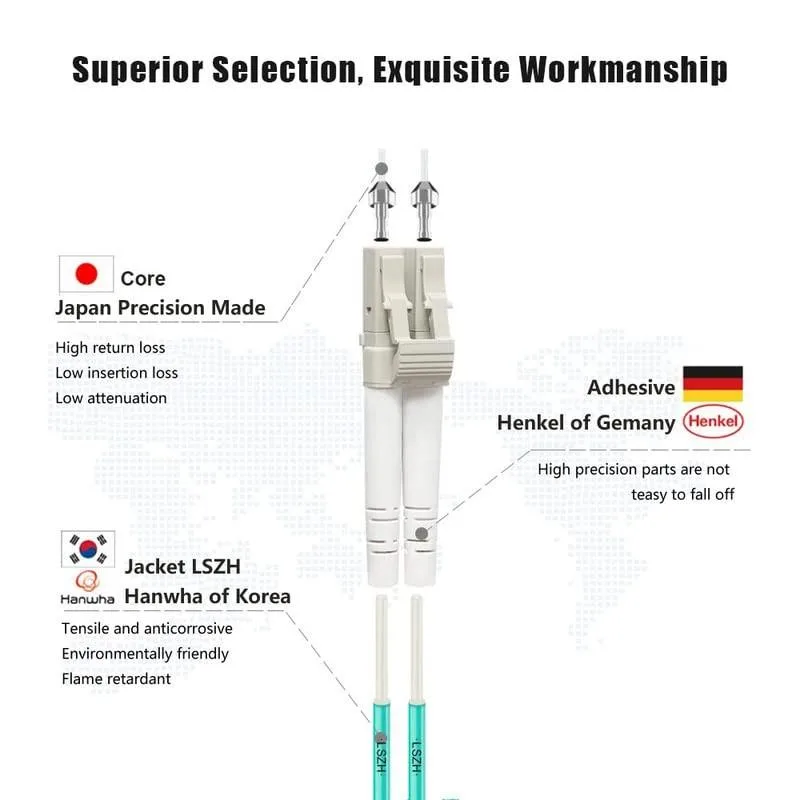

  • LSZH jacket with adjustable clips for individual fibre access

High-density OM4 LC-LC patch cables

This four-pack supplies eight-metre OM4 duplex fibres with LC connectors on both ends. They are built for 10, 40 and 100 gigabit Ethernet links in data centres, campus LANs and storage-area networks. The 50/125 µm multimode core supports 2000 MHz·km bandwidth at 850 nm wavelength. LSZH jacketing meets low-smoke requirements for dense cabinet runs.

Suits installers needing pre-terminated 40/100G

Network engineers who want factory-polished LC duplex jumpers for QSFP+ or SFP+ transceivers will find the 0.3 dB insertion loss and 30 dB return loss within spec. The 7.5 mm bend radius eases routing in cabinets that demand twenty or more tight turns. Buyers who require single-mode reach, armoured sheathing or MPO connectors should select a different cable family.

Handles 100G up to 200 metres

At 100 gigabit Ethernet the guaranteed reach is 200 metres; 40 gigabit extends to 300 metres and 10 gigabit to 300 metres. Gigabit Ethernet runs up to 550 metres on the same fibre. Beyond those distances the link budget is exceeded and a different fibre type or active equipment is needed.

Highlights

  • Supports 10G, 40G and 100G Ethernet links
  • 4-pack OM4 duplex cables, each 8 m long
  • 5 mm bend radius for dense cabinet routing
  • Low 0.3 dB insertion loss and 30 dB return loss
  • LSZH jacket with adjustable clips for individual fibre access

Specifications

No published specifications for this item yet.

Questions about this item

What transceivers do I need to use these 8 m OM4 LC-LC cables?

The cables are designed for 40G BIDI SR, 10G SR, QSFP+ and SFP+ transceivers operating at 850 nm for 10G, 40G or 100G Ethernet links.

Will these cables work with my existing OM3 patch panels and transceivers?

Yes, OM4 is backward compatible with OM3; the 50/125 µm core matches, so you can mix them while staying within OM3 distance limits.

How can I verify the links are performing correctly after installation?

Check that insertion loss is at or below 0.3 dB and return loss is at least 30 dB using a light source and power meter at 850 nm.
