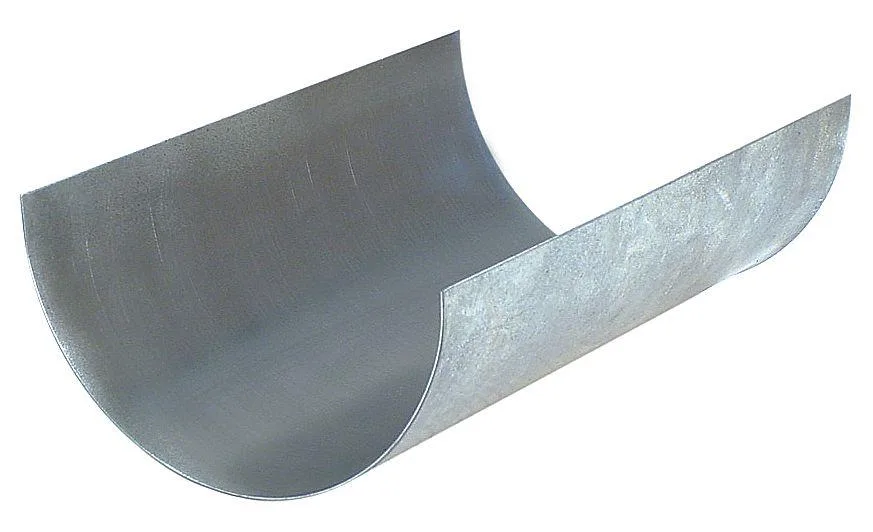

Galvanised carbon steel insulation shield for 1 to 3 inch pipe

Anvil

Anvil 0500340070 Insulation Protection Shield trap

SKU CH-X3C5-7HDMC MPN 0500340070

Galvanised carbon-steel shield protects 1–3 in pipe insulation, 12 in long, 18 gauge, meets A-A-1192A Type 40, WW-H-171-E Type 41, ANSI/MSS SP-69 and MSS SP-5 Type 40

  • TypeDrain Components
  • Galvanised carbon steel resists corrosion on pipe runs
  • Fits 1 to 3 inch pipe with 1 to 2 inch insulation thickness
  • 12 inch length covers standard joint spacing
  • 18 gauge construction meets ANSI/MSS SP-69 and MSS SP-5 Type 40
  • Complies with A-A-1192A Type 40 and WW-H-171-E Type 41 standards

Purpose-built pipe shield

The Anvil 0500340070 Insulation Protection Shield is a drain component designed for pipe sizes 1 to 3 In. It suits installers who need a galvanised carbon-steel guard that meets A-A-1192A Type 40, WW-H-171-E Type 41, ANSI/MSS SP-69 and MSS SP-5 Type 40 standards. Builders requiring a different pipe range or insulation thickness must select another model.

Sustained-load behaviour

The 18-gauge galvanised carbon steel resists deformation when supporting insulated pipework over long runs. Its 12 In length distributes weight evenly across the shield surface, maintaining alignment without permanent set. The construction satisfies the listed Type 40 and Type 41 approvals for continuous service in approved installations.

Thermals, noise and power

The passive metal shield adds no operational noise and draws no power. Galvanised finish reduces surface temperature transfer between pipe insulation and surrounding structure. No moving parts or electrical connections are present, so thermal performance depends entirely on the insulation system it protects.

Highlights

  • Galvanised carbon steel resists corrosion on pipe runs
  • Fits 1 to 3 inch pipe with 1 to 2 inch insulation thickness
  • 12 inch length covers standard joint spacing
  • 18 gauge construction meets ANSI/MSS SP-69 and MSS SP-5 Type 40
  • Complies with A-A-1192A Type 40 and WW-H-171-E Type 41 standards

Specifications

TypeDrain Components
BrandAnvil
Model0500340070

Questions about this item

Does the Anvil 0500340070 shield generate any heat or noise during continuous operation?

The Anvil 0500340070 is a passive carbon steel shield with no moving parts, so it produces no heat or noise during use.

What pipe size must the installer already have for this 18-gauge shield to fit correctly?

This shield fits pipe sizes from 1 to 3 inches and accommodates insulation thickness of 1 to 2 inches.

Will the Anvil 0500340070 meet the same ANSI/MSS SP-69 standard as older hangers already in the system?

Yes, it complies with ANSI/MSS SP-69 and MSS SP-5 (Type 40), matching the standards used for many existing pipe supports.
