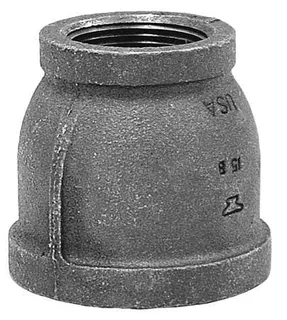

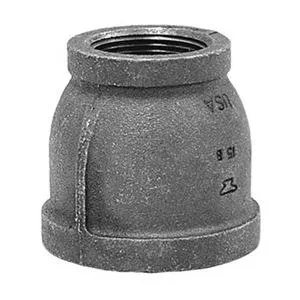

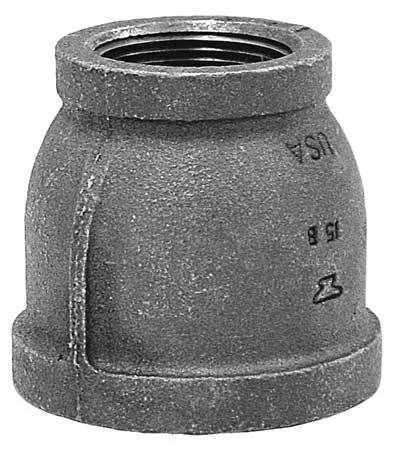

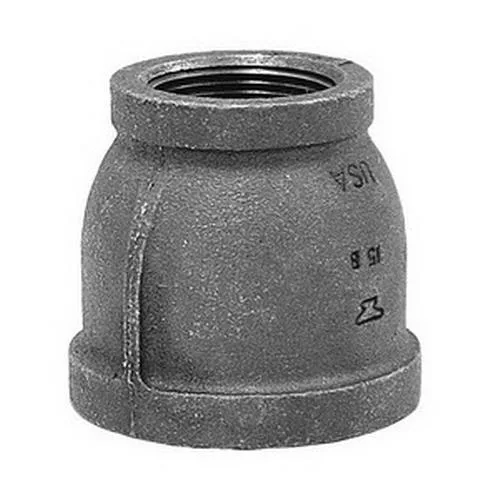

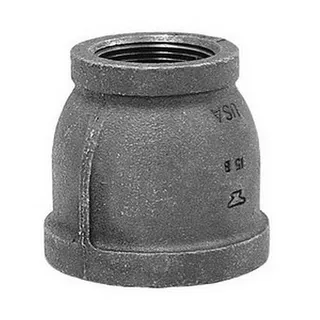

Black malleable iron reducer coupling with female NPT threads

Anvil

Anvil 0310090204 Reducer Coupling Class 150

SKU CH-MXK1-S98ME MPN 0310090204

Malleable iron reducer coupling rated Class 150 for Schedule 40 pipe with 300 psi maximum operating pressure

  • TypeDrain Components
  • Malleable iron construction resists corrosion
  • Class 150 rating handles 300 psi at 150 °F
  • Reduces 2 1/2 in to 1 1/2 in NPT threads
  • Schedule 40 compatibility fits standard piping
  • Black finish protects against surface wear

Anvil Malleable Iron Reducer Coupling

The Anvil 0310090204 is a Class 150 reducing coupling made from malleable iron for Schedule 40 pipe systems. It connects a 2 1/2 inch female NPT thread to a 1 1/2 inch female NPT thread in plumbing and industrial piping installations.

Black Iron Construction With NPT Threads

The black malleable iron body provides mechanical strength for pressurized water, oil, or gas lines rated to 300 psi at 150 degrees Fahrenheit. Tapered National Pipe Threads on both ends create a seal when tightened with thread sealant, allowing direct assembly without welding or flanges.

Ready For Immediate Installation

No gaskets, bushings, or additional sealing hardware are included in the package. The coupling ships as a single finished fitting, so installers only need to supply pipe thread compound or tape to complete the joint.

Highlights

  • Malleable iron construction resists corrosion
  • Class 150 rating handles 300 psi at 150 °F
  • Reduces 2 1/2 in to 1 1/2 in NPT threads
  • Schedule 40 compatibility fits standard piping
  • Black finish protects against surface wear

Specifications

TypeDrain Components
BrandAnvil
Model0310090204

Questions about this item

What pressure and temperature does the Class 150 rating allow for this reducer coupling?

Class 150 provides a maximum operating pressure of 300 psi at 150 degrees Fahrenheit for this malleable iron fitting.

Which pipe schedules and thread sizes does the Anvil 0310090204 accept?

It connects Schedule 40 pipe with a 2 1/2 inch female NPT end to a 1 1/2 inch female NPT end.

How do I seal the NPT threads on the Anvil 0310090204 without causing cracks?

Apply PTFE tape or pipe dope to the male threads only, then tighten one to two turns past hand-tight; over-tightening malleable iron can split the hub.
