AMD

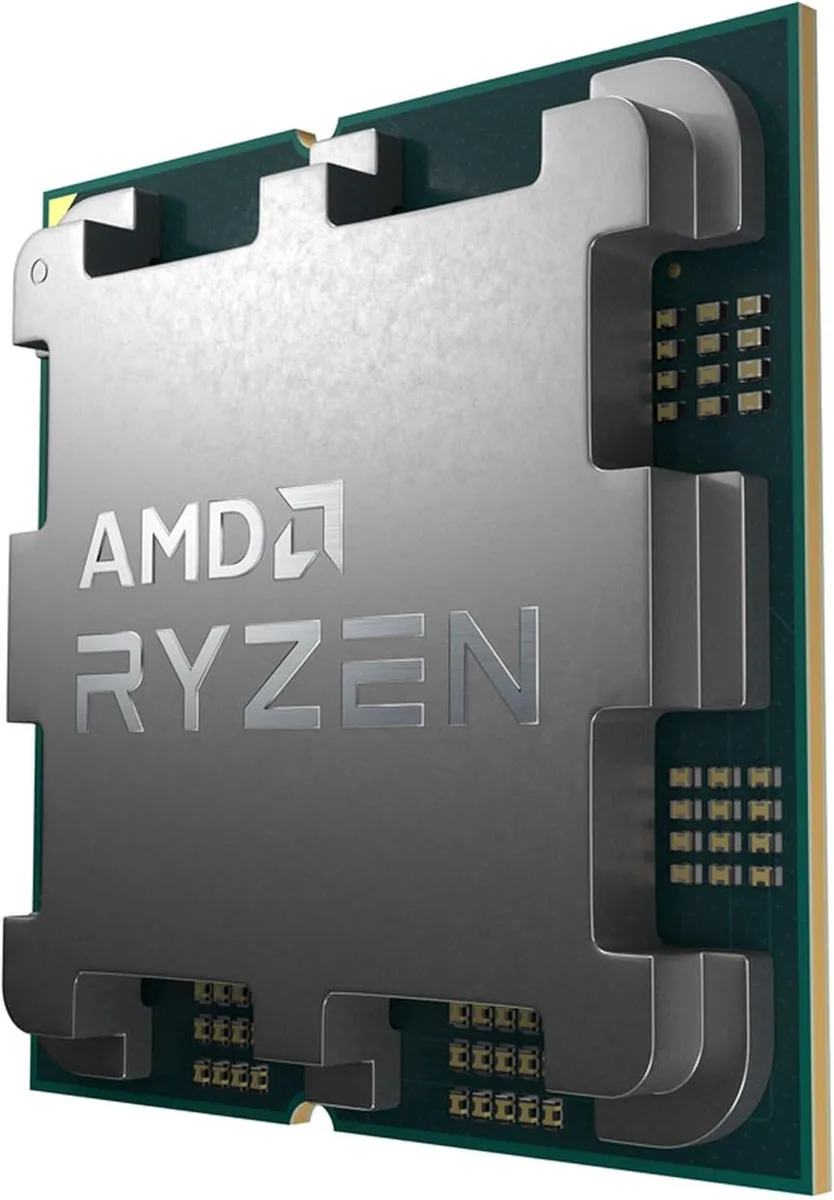

AMD Ryzen 7 8700G desktop processor
Eight-core desktop processor with integrated Radeon 780M graphics for gaming without a discrete card, 4.2 GHz base and 5.1 GHz boost, DDR5-5200 support on Socket AM5
- Processors TypeDesktop
- NameRyzen 7 8700G
- CPU Socket TypeSocket AM5
- # of Cores8-Core
- # of Threads16-Threads
- Operating Frequency4.2 GHz
- Integrated Radeon 780M graphics enable high-definition gaming without a discrete card
- 8 cores and 16 threads on Zen 4 architecture deliver strong multi-tasking performance
- 1 GHz max boost frequency with unlocked multiplier allows overclocking headroom
- DDR5-5200 dual-channel support up to 256 GB provides fast memory bandwidth
- Socket AM5 platform with PCIe 4.0 and 3.0 ensures upgrade path for future components
Built-in Radeon 780M graphics
The AMD Ryzen 7 8700G is an eight-core desktop processor with sixteen threads and integrated Radeon 780M graphics. It targets gamers and creators who want high-definition play or content work without buying a discrete graphics card. The chip runs at a 4.2 GHz base clock and can boost to 5.1 GHz on the AM5 platform.
Drop-in AM5 install with BIOS check
Installation follows the standard AM5 procedure: lift the socket lever, align the triangle marker, seat the processor and lower the lever. The included Wraith Spire cooler mounts with spring screws. Most boards need a BIOS update before they recognise the chip; without that update the system will not post.
DDR5-5200 dual-channel memory controller
The memory controller supports DDR5 5200 in two channels up to 256 GB total capacity. This spec decides whether the processor matches your planned memory kit and motherboard layout.
Highlights
- Integrated Radeon 780M graphics enable high-definition gaming without a discrete card
- 8 cores and 16 threads on Zen 4 architecture deliver strong multi-tasking performance
- 1 GHz max boost frequency with unlocked multiplier allows overclocking headroom
- DDR5-5200 dual-channel support up to 256 GB provides fast memory bandwidth
- Socket AM5 platform with PCIe 4.0 and 3.0 ensures upgrade path for future components
Specifications
| Brand | AMD |
|---|---|
| Processors Type | Desktop |
| Series | Ryzen 7 8000-G Series |
| Name | Ryzen 7 8700G |
| Model | 100-100001236SBX |
| CPU Socket Type | Socket AM5 |
| # of Cores | 8-Core |
| # of Threads | 16-Threads |
| Operating Frequency | 4.2 GHz |
| Max Turbo Frequency | 5.1 GHz |
| L2 Cache | 8MB |
| L3 Cache | 16MB |
| Manufacturing Tech | 4nm |
| Instruction Set | 64-Bit |
| Memory Types | DDR5 5200 |
| Memory Channel | 2 |
| Max Memory Size | 256 GB |
| Integrated Graphics | AMD Radeon 780M |
| Graphics Max Dynamic Frequency | 2.9 GHz |
| PCI Express Revision | 4.0 / 3.0 |
| Thermal Design Power | 65W |
| Cooling Device | Wraith Spire Cooler |
| Operating System Supported | Windows 11 - 64-Bit Edition Windows 10 - 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit *Operating System (OS) support will vary by manufacturer. |
| AI Features | Dedicated AI Engine AI-Optimized Radeon Graphics Engine Dedicated AI engine designed for AI processing efficiency |
Questions about this item
How do I confirm the Ryzen 7 8700G is running at its 5.1 GHz max turbo frequency after installation?
Use monitoring software to observe core clocks under load; the processor should reach 5.1 GHz on active cores when thermal and power headroom allow.
Does the box include the AMD Wraith Spire cooler or do I need to purchase a separate CPU cooler?
The retail package includes the premium AMD Wraith Spire cooler, so no separate cooler purchase is required for standard operation.
Which DDR5 memory speed should I select to match the Ryzen 7 8700G's supported specification?
The processor officially supports DDR5 5200; kits rated at that speed will run at the guaranteed frequency without manual tuning.
