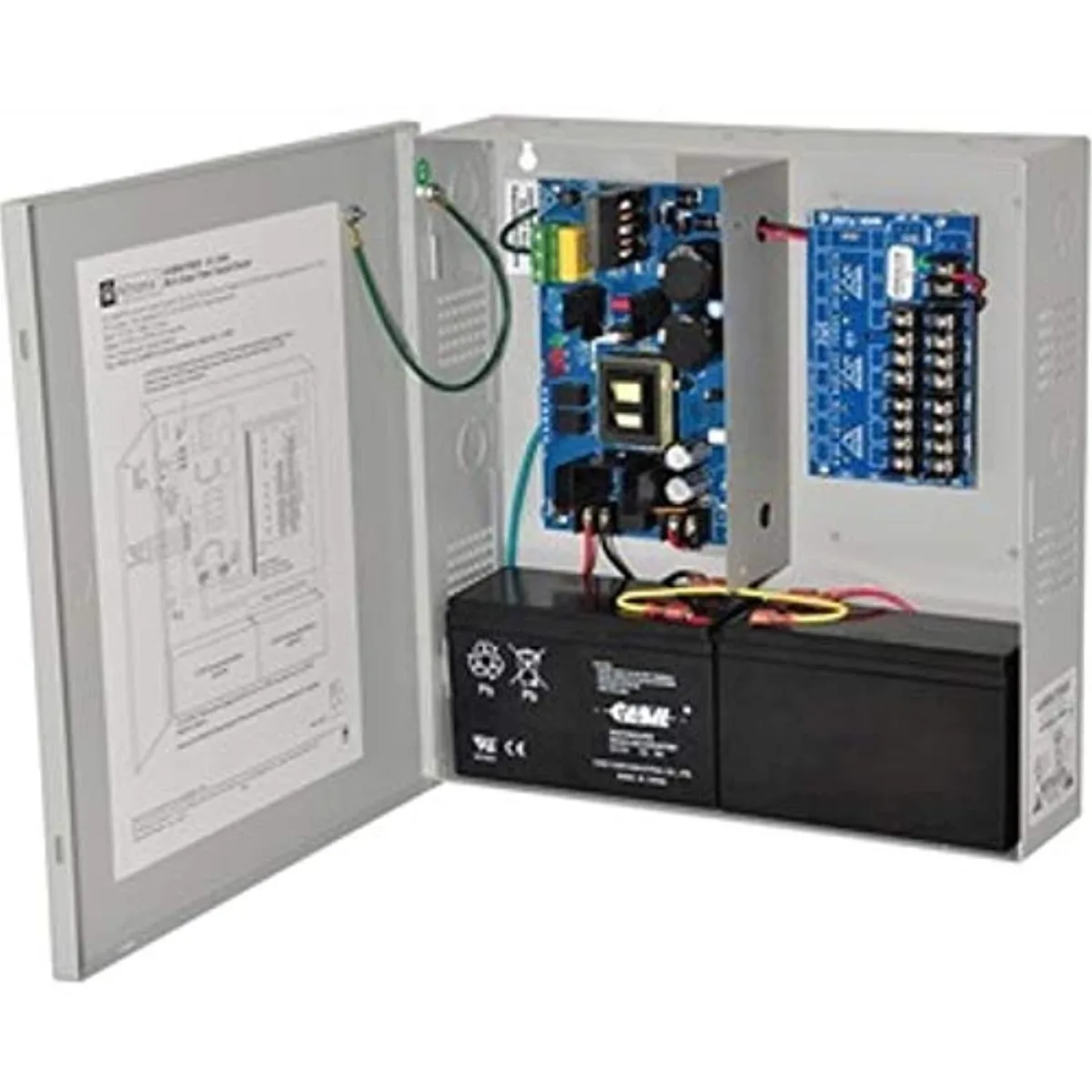

Metal wall-mount enclosure with eight PTC output terminals, grey finish

ALTRONIX

ALTRONIX AL600ULPD8CB security power supply 115VAC 60Hz 12/24VDC 6A 8 PTC outputs

SKU CH-WSFS-FW7S1 MPN AL600ULPD8CB

Converts 115VAC 60Hz to 12 or 24VDC at 6A across eight PTC-protected Class 2 outputs in a wall-mount enclosure

  • TypeProprietary Power Supply
  • Delivers 6 A continuous power for reliable security operation
  • Eight PTC-protected Class 2 outputs prevent overload on each circuit
  • Switchable 12 V DC or 24 V DC output matches diverse devices
  • Wall-mount form factor saves space in equipment rooms
  • RoHS-certified and built in the United States

Security power supply for access control

The ALTRONIX AL600ULPD8CB converts 115VAC 60Hz mains input into a continuous 6A supply at 12VDC or 24VDC for security installations. Eight PTC-protected Class 2 rated outputs distribute power to devices such as door controllers, readers and locks. The unit mounts on a wall and carries a lifetime warranty from Altronix Corporation. RoHS compliance confirms environmentally friendly construction.

Replaces single-output supplies

Installations that currently rely on a single 12VDC or 24VDC output and basic fuse protection gain eight individually protected circuits in one enclosure. The jump is worth it when you need to power multiple access-control devices from one location while keeping each circuit Class 2 compliant. The PTC devices auto-reset after a fault, reducing service calls compared with replaceable fuses.

Verify input voltage and output selection before

Confirm the site provides 115VAC 60Hz service; the unit is not rated for other mains voltages. Check that every connected device operates at the same chosen output voltage, either 12VDC or 24VDC, because the supply delivers one voltage across all eight outputs. Ensure the wall-mount footprint of 13.5 by 13 by 3.3 inches fits the available enclosure space.

Highlights

  • Delivers 6 A continuous power for reliable security operation
  • Eight PTC-protected Class 2 outputs prevent overload on each circuit
  • Switchable 12 V DC or 24 V DC output matches diverse devices
  • Wall-mount form factor saves space in equipment rooms
  • RoHS-certified and built in the United States

Specifications

BrandAltronix
TypeProprietary Power Supply
Shipping weight4.08 kg
Package size373 × 337 × 108 mm

Questions about this item

What wall space is needed for the 13.5 by 13 inch enclosure?

The unit measures 13.5 inches high by 13 inches wide and 3.3 inches deep, so allow that footprint plus clearance for wiring.

How are the eight Class 2 outputs wired, and what mistake causes a dead circuit?

Each output is PTC protected; the common error is exceeding the 6 amp total across all eight outputs, which trips the self-resetting protectors.

What ongoing care does the 7.90 lb wall-mount chassis require?

No user-serviceable parts inside; periodically verify the enclosure is secure, vents are clear, and the PTC outputs have not latched off due to overload.
