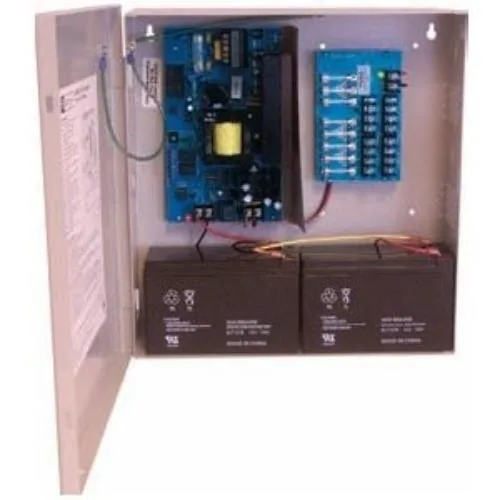

Wall-mounted metal enclosure with eight fuse-protected outputs

ALTRONIX

ALTRONIX AL600ULPD8 12V/24V 6A 8-Fuse Security Power Supply

SKU CH-B5EF-HS3KT MPN AL600ULPD8

Converts 115 V AC to 12 V DC or 24 V DC at 6 A across eight fuse-protected outputs for access control and fire signalling systems

  • TypeProprietary Power Supply
  • Dual 12 V / 24 V output powers diverse security devices
  • 6 A continuous current sustains heavy access-control loads
  • Eight fuse-protected outputs isolate faults per zone
  • Wall-mount enclosure fits standard 13.5 in height
  • RoHS certified and built in the United States

Power for Access-Control and Fire-Signalling Panels

The AL600ULPD8 converts a 115 VAC 60 Hz supply into either 12 VDC or 24 VDC at 6 amps continuous current, feeding eight individually fused outputs. It is designed for installers wiring access-control or fire-protective signalling systems that require a single wall-mounted power source.

Eight Fused Outputs Simplify Wiring

Each of the eight outputs carries its own fuse, so a short on one circuit will not drop power to the remaining seven. This layout reduces troubleshooting time and lets the installer run separate feeds to locks, readers or notification appliances from one enclosure.

Verify Input Voltage and Mounting Space

Confirm the site provides 115 VAC at 60 Hz before ordering. The wall-mount chassis measures 13.5 by 13 by 3.3 inches and weighs 7.80 lb, so ensure the mounting surface can support that footprint and weight.

Highlights

  • Dual 12 V / 24 V output powers diverse security devices
  • 6 A continuous current sustains heavy access-control loads
  • Eight fuse-protected outputs isolate faults per zone
  • Wall-mount enclosure fits standard 13.5 in height
  • RoHS certified and built in the United States

Specifications

BrandAltronix
TypeProprietary Power Supply
Shipping weight4.13 kg
Package size373 × 337 × 108 mm

Questions about this item

How often do the eight output fuses need to be checked or replaced?

The unit provides eight fuse-protected non power-limited outputs at 12 V DC or 24 V DC; fuses should be inspected after any fault event and replaced only when a specific circuit has opened.

Which limit is reached first when the supply runs continuously at full 6 A load?

The 6 A continuous current rating at either 12 V DC or 24 V DC is the primary limit; sustained full-load operation will hit this current ceiling before any other specified threshold.

How much heat and noise does the wall-mount enclosure produce during all-day operation?

The 13.5 × 13 × 3.3 inch steel enclosure relies on passive convection cooling with no fan, so audible noise is negligible while the case surface warms under the 6 A continuous load.
