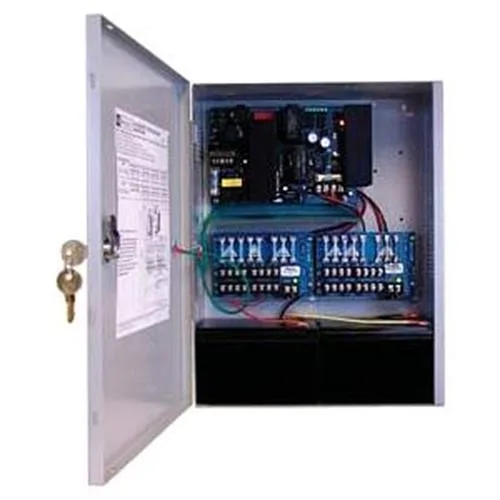

Wall-mounted metal enclosure with sixteen PTC-protected output terminals

ALTRONIX

ALTRONIX AL1024ULXPD16CB 16 PTC 24VDC 10A security power supply

SKU CH-Y3TE-E89J4 MPN AL1024ULXPD16CB

Converts 115VAC 60Hz to 24VDC at 10A across sixteen PTC-protected Class 2 outputs for access control and fire alarm systems

  • TypeProprietary Power Supply
  • Delivers 24 V DC at 10 A for access control
  • Supplies 8 A continuous and 10 A during fire alarm
  • Sixteen PTC protected Class 2 rated outputs
  • Accepts 115 V AC 60 Hz input voltage
  • Wall mount form factor measures 15.5 by 12.2 by 4.5 inches

16-output PTC power supply

The ALTRONIX AL1024ULXPD16CB converts a 115VAC 60Hz input into a regulated 24VDC supply rated at 10A. It distributes power through sixteen PTC protected Class 2 rated outputs. The unit is designed for wall mounting and carries a RoHS environmental certification.

Access control and fire alarm systems

This supply suits installers powering access control panels or fire protective signaling systems that require multiple Class 2 circuits. It is not intended for applications needing fused output protection instead of PTC, or for systems operating on input voltages other than 110V AC.

10A at 24VDC continuous rating

The continuous 10A output at 24VDC determines whether the unit can meet the total load of connected devices. Verify the aggregate current draw of all sixteen outputs against this limit before installation.

Highlights

  • Delivers 24 V DC at 10 A for access control
  • Supplies 8 A continuous and 10 A during fire alarm
  • Sixteen PTC protected Class 2 rated outputs
  • Accepts 115 V AC 60 Hz input voltage
  • Wall mount form factor measures 15.5 by 12.2 by 4.5 inches

Specifications

BrandAltronix
TypeProprietary Power Supply
Shipping weight5.49 kg
Package size417 × 343 × 150 mm

Questions about this item

What are the wall-mount dimensions for the ALTRONIX AL1024ULXPD16CB power supply?

The unit measures 15.5 inches in height, 12.2 inches in width, and 4.5 inches in depth for wall-mount installation.

How do I connect the 115VAC 60Hz input to the ALTRONIX AL1024ULXPD16CB, and what is the common wiring mistake?

Connect the 115VAC 60Hz supply to the designated input terminals; the common mistake is reversing line and neutral conductors.

When should I replace the PTC protectors on the sixteen Class 2 outputs of the ALTRONIX AL1024ULXPD16CB?

Replace a PTC protector only after it has tripped due to an overcurrent fault on its output circuit.
