AIRGAIN, INC. MULTIMAX MIMO 6-in-1 Antenna 15ft Black
A rugged IP65-rated antenna with two MIMO cell/LTE ports, three Wi-Fi ports and GNSS, 15 ft cables and MIL-STD 810G vibration resistance
- TypeAntenna
- ColorBlack
- 6-in-1 antenna covers cellular MIMO, Wi-Fi MIMO and GNSS in one housing
- Two LTE elements deliver 698–960 MHz at 3 dBi and 1710–2700 MHz at 6.5 dBi
- Three Wi-Fi elements support 2.4 GHz and 5.5 GHz bands with up to 8 dBi gain
- GNSS element covers 1550–1610 MHz with 30.50 dBi gain for precise positioning
- IP65 rated, MIL-STD-810G vibration and -55 °C to 85 °C temperature tested for vehicle use
Multi-band vehicle antenna

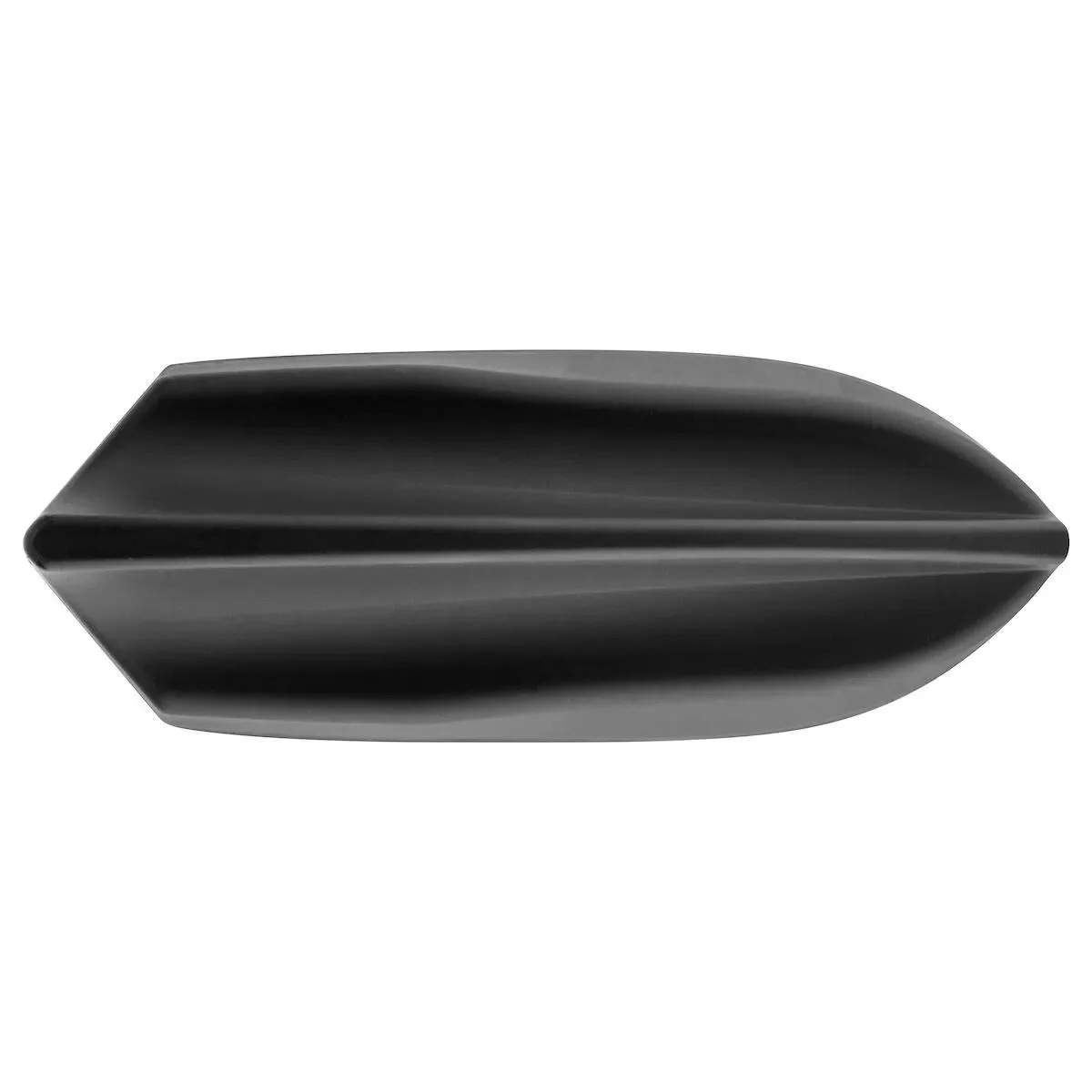

The Airgain Multimax is a 6-in-1 external antenna built for fleet and public-safety vehicles. It combines two cellular MIMO elements, three Wi-Fi elements and a GNSS receiver in a single low-profile housing. The unit mounts on a vehicle roof and connects to compatible routers or modems via 15 ft coaxial leads.
IP65 rugged construction

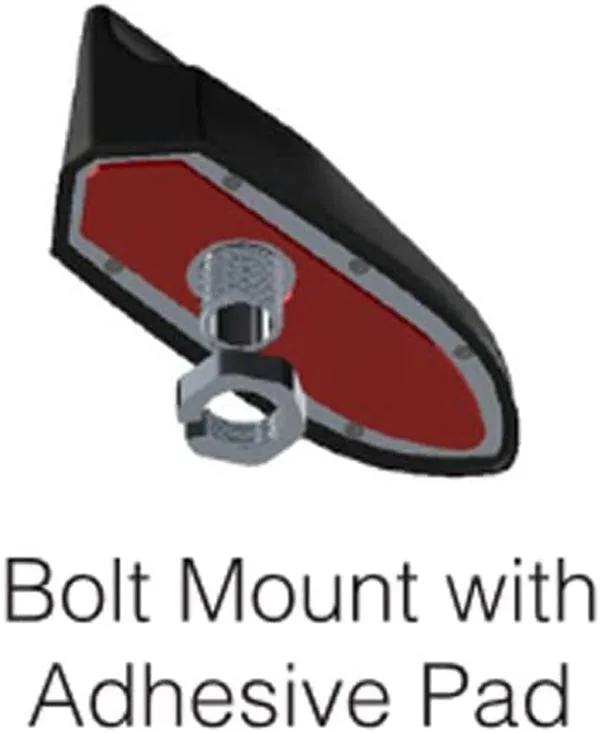

The radome meets IP65 for dust and water ingress and complies with MIL-STD 810G Method 501.5 for vibration and temperature extremes from -55 °C to 85 °C. Thread mounting secures the antenna against car washes, ice, salt spray and branch impact. SMA connectors terminate the cellular and GNSS cables while RP-SMA serves the Wi-Fi leads.
Ready-to-install cable set
Each of the six elements ships with its own 15 ft coax pigtail and the correct SMA or RP-SMA plug, so installers can route cables directly to the router without extra adapters. The bundled hardware eliminates the need to source separate antennas, mounts or jumper cables for a complete vehicle connectivity kit.
Highlights
- 6-in-1 antenna covers cellular MIMO, Wi-Fi MIMO and GNSS in one housing
- Two LTE elements deliver 698–960 MHz at 3 dBi and 1710–2700 MHz at 6.5 dBi
- Three Wi-Fi elements support 2.4 GHz and 5.5 GHz bands with up to 8 dBi gain
- GNSS element covers 1550–1610 MHz with 30.50 dBi gain for precise positioning
- IP65 rated, MIL-STD-810G vibration and -55 °C to 85 °C temperature tested for vehicle use
Specifications
| Part Number | AP-MMF-CCWWWG-Q-S222222-RP345-BL |
|---|---|
| Type | Antenna |
| Color | Black |
Questions about this item
What frequency bands and gains do the SMA and RP-SMA connectors support?
The two SMA cell ports cover 698-960 MHz at 3 dBi and 1710-2700 MHz at 6.5 dBi. The three RP-SMA Wi-Fi ports deliver 2.4 GHz at 8 dBi and 5.5 GHz at 7 dBi. The GPS SMA port operates at 1550-1610 MHz with 30.50 dBi gain.
What mounting style and cable length does this antenna require?
It uses a thread mount for vehicle installation and ships with 15 ft of coaxial cable on each of the six leads.
How do you correctly attach the six coaxial leads to the router?
Connect the two SMA cell cables and the SMA GPS cable to the router's SMA jacks, then attach the three RP-SMA Wi-Fi cables to the router's RP-SMA jacks — matching SMA to SMA and RP-SMA to RP-SMA is the step most often reversed.
