AIRGAIN, INC.

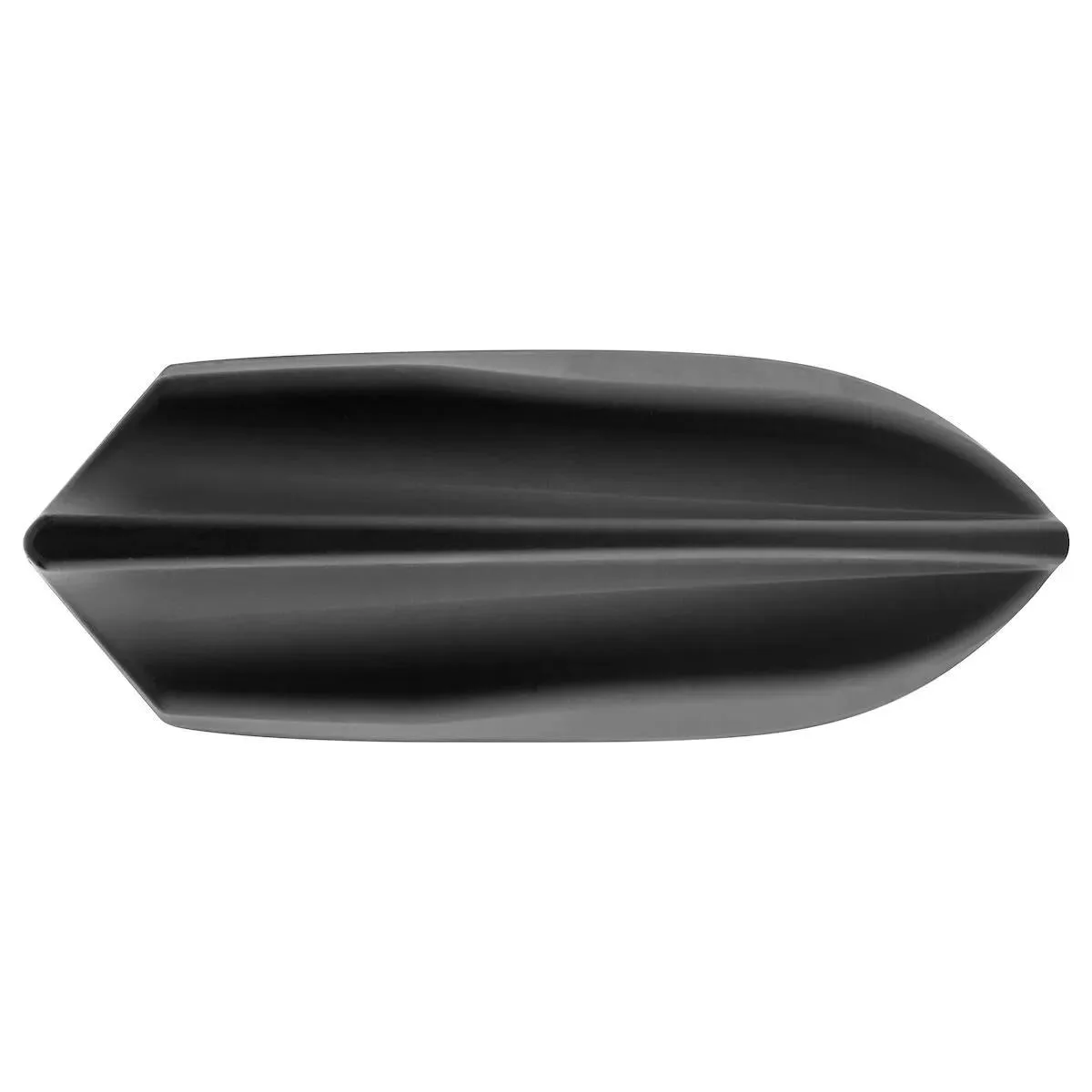

AIRGAIN, INC. MULTIMAX 5-in-1 MIMO Antenna Thread Mount Black 15ft
Combines two cellular, two Wi-Fi and one GNSS element with IP65-rated housing, 15 ft coax and thread mount
- TypeAntenna
- ColorBlack
- 5-in-1 MIMO antenna covers cellular, Wi-Fi and GNSS in one housing
- Two LTE elements operate 698–960 MHz at 3 dBi and 1710–2700 MHz at 6.5 dBi
- Dual Wi-Fi elements deliver 8 dBi at 2.4 GHz and 7 dBi at 5.5 GHz
- Integrated GNSS element provides 30.50 dBi gain across 1550–1610 MHz
- IP65-rated enclosure survives -55 °C to 85 °C and MIL-STD-810G vibration testing
Multi-antenna for fleet and public-safety routers
This five-in-one antenna combines two cellular MIMO elements, two Wi-Fi elements and a GNSS receiver in a single rugged housing. It is built for vehicles and assets that need reliable outdoor connectivity across multiple networks simultaneously.
Frequency coverage and gain figures
Cellular elements cover 698-960 MHz at 3 dBi and 1710-2700 MHz at 6.5 dBi, while Wi-Fi elements operate at 2.4 GHz and 5.5 GHz with 8 dBi and 7 dBi gain. The GNSS element provides 30.50 dBi gain across 1550-1610 MHz, giving clear headroom for positioning. Builders needing additional cellular bands or higher gain on a specific band will need a different antenna.
Connector mix and mounting hardware
The bundle supplies SMA connectors on the cellular and GNSS leads and RP-SMA on the Wi-Fi leads, matched to 15ft coaxial cables for direct router attachment. A thread-mount base secures the unit to the vehicle roof. Installers who require bulkhead adapters, shorter cables or magnetic mounting must source those parts separately.
Highlights
- 5-in-1 MIMO antenna covers cellular, Wi-Fi and GNSS in one housing
- Two LTE elements operate 698–960 MHz at 3 dBi and 1710–2700 MHz at 6.5 dBi
- Dual Wi-Fi elements deliver 8 dBi at 2.4 GHz and 7 dBi at 5.5 GHz
- Integrated GNSS element provides 30.50 dBi gain across 1550–1610 MHz
- IP65-rated enclosure survives -55 °C to 85 °C and MIL-STD-810G vibration testing
Specifications
| Brand | Airgain |
|---|---|
| Model | MULTIMAX |
| Part Number | AP-MMF-CCWWG-Q-S22222-RP34-BL |
| Type | Antenna |
| Color | Black |
Questions about this item
Will the 15 ft SMA cables on the two cellular elements reach my existing router without extra extensions?
The antenna includes 15 ft coax leads terminated in SMA for both Cell/LTE elements, so measure your cable run to the router before deciding if extensions are needed.
How can I confirm each of the five elements is performing after installation?
Check router signal metrics: two cellular bands at 698-960 MHz and 1710-2700 MHz, two Wi-Fi bands at 2.4 GHz and 5.5 GHz, and GNSS lock on 1550-1610 MHz.
Does the thread-mount kit include the 15 ft cables and all five connectors, or must I buy pigtails separately?
The package supplies the antenna with integrated 15 ft coax, SMA on the two Cell/LTE and GNSS ports, RP-SMA on the two Wi-Fi ports, and the thread-mount hardware.
