Airgain
Airgain AntennaPlus 6-1 Antenna for AirLink MP70 Router Thread Mount Black
Combines two LTE, three Wi-Fi and one GNSS antenna with 15 ft cables for the AirLink MP70 router
- 6-in-1 antenna simplifies vehicle installs with single mount
- Dual LTE antennas boost 4G throughput via MIMO
- Three Wi-Fi antennas cover 802.11 abgn ac bands
- GPS plus second GNSS gives 55 combined satellites
- 15 ft LMR195 and RG174U cables reach router locations
AirLink MP70 combo antenna
This antenna kit is built for the Sierra Wireless AirLink MP70 vehicle router and supplies six elements in one low-profile housing. Fleet operators and mobile-network installers use it to add LTE, Wi-Fi and GNSS reception without drilling multiple holes.

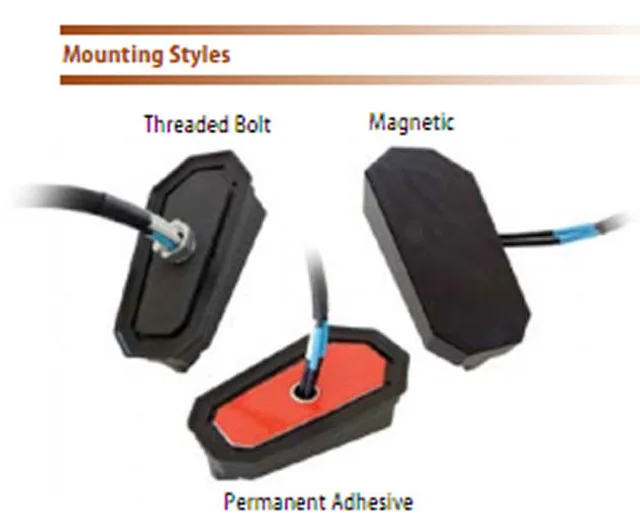

Threaded bolt mount and fixed cables
The antenna attaches with a threaded bolt mount and ships with six pre-terminated cables, each 15 feet long. Two LMR195 leads carry LTE to SMA male connectors, three LMR195 leads carry Wi-Fi to RP-SMA male connectors, and one RG174U lead carries GNSS to an SMA male connector.
Verify router ports and cable routing
Confirm the MP70 presents two SMA female LTE ports, three RP-SMA female Wi-Fi ports and one SMA female GNSS port before ordering. Ensure the 15-foot cable runs can reach those ports inside the vehicle without sharp bends or strain on the connectors.
Highlights
- 6-in-1 antenna simplifies vehicle installs with single mount
- Dual LTE antennas boost 4G throughput via MIMO
- Three Wi-Fi antennas cover 802.11 abgn ac bands
- GPS plus second GNSS gives 55 combined satellites
- 15 ft LMR195 and RG174U cables reach router locations
Specifications
No published specifications for this item yet.
Questions about this item
Should I choose the version with two LTE antennas, three Wi-Fi antennas and one GNSS antenna for my AirLink MP70?
Yes — the AP-MP70-Q-BL is built as a 6-1 combo with exactly that antenna count to match the MP70's six RF ports.
What does the 55 combined satellites figure mean for GPS accuracy in my vehicle?
It means the antenna can track both GPS and GLONASS constellations simultaneously, giving up to 55 satellites in view for stronger rural and urban-canyon positioning.
How do the SMA male, RP-SMA male and SMA male connectors on the 15 ft cables limit what I can plug into the router?
The two LTE leads use SMA male, the three Wi-Fi leads use RP-SMA male, and the GNSS lead uses SMA male — each matches the corresponding port on the AirLink MP70.
