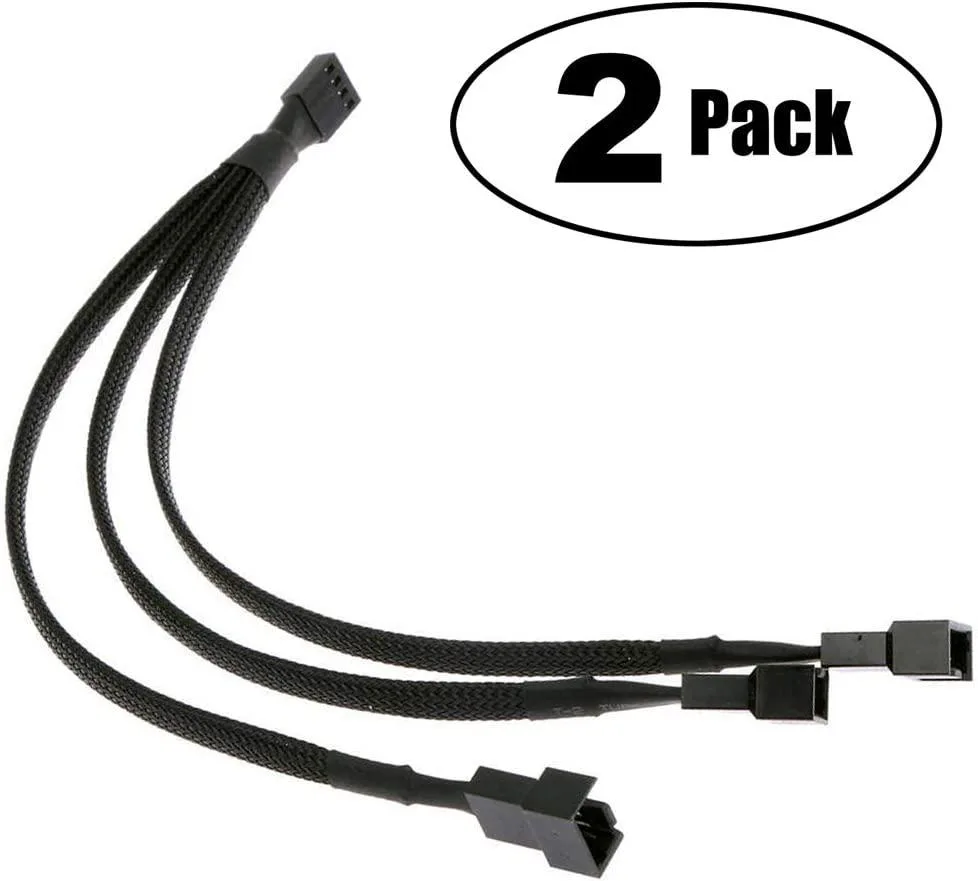

Two black braided cables each splitting one 4-pin female into three male connectors

aibileec

aibileec PWM Fan Splitter Cable 1-to-3 10 in Black 2 Pack

SKU CH-9AGQ-YE5RC

Connects three case fans to one motherboard header with a 10-inch braided cable; only the 4-pin connector reports RPM while 3-pin fans run at full speed

  • TypeFan power splitter cable
  • ColorBlack
  • Length10 inches
  • Cable Length10 in.
  • Connector A1x TX4 female
  • Connector B3x TX3/TX4 male
  • Splits one motherboard header into three fan connections with a single 10 in cable

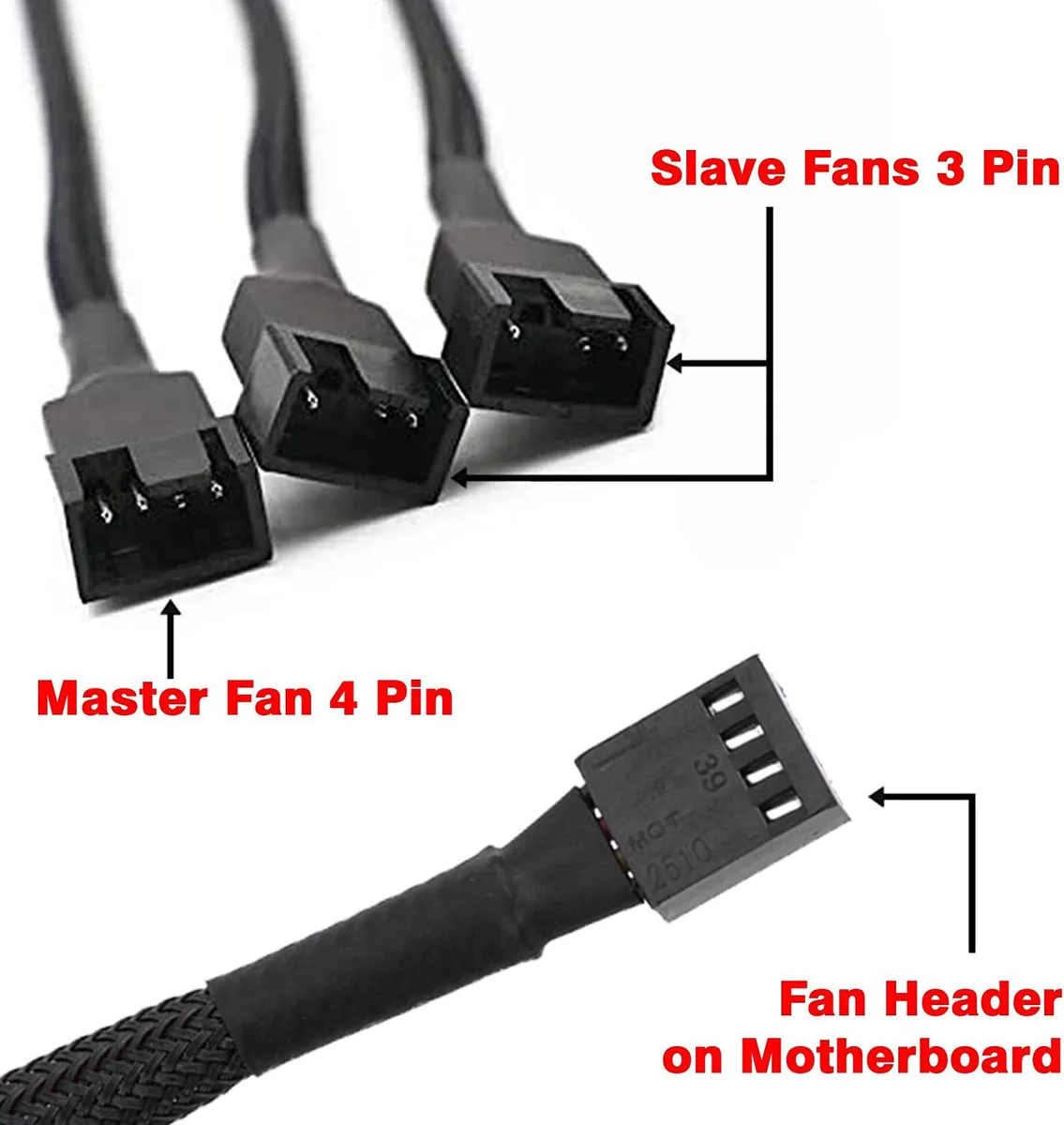

  • One 4-pin and two 3-pin outputs let you mix PWM and voltage-controlled fans
  • Sleeved black braiding protects wires and simplifies cable routing inside the case
  • Only the 4-pin fan reports RPM so the board can monitor a single speed signal
  • All attached fans follow the same PWM curve for synchronised speed control

Connect Three Fans to One Header

This PWM fan splitter cable connects a single four-pin motherboard header to three case fans. One branch carries a full four-pin connector for RPM monitoring while the other two use three-pin plugs. The ten-inch length keeps routing tidy inside compact builds.

Sleeved Cable Simplifies Routing

Black braided sleeving protects the wires and makes cable management easier behind the motherboard tray. The splitter draws all fan power from the single header, so the board must supply enough current for the combined load. No extra power connectors or adapters are required.

Ideal for Unified Speed Control

Builders who want all three fans to spin at the same PWM duty cycle will appreciate the shared signal design. Users needing independent speed curves per fan or RPM feedback from every unit should look at a fan controller with multiple headers instead.

Highlights

  • Splits one motherboard header into three fan connections with a single 10 in cable
  • One 4-pin and two 3-pin outputs let you mix PWM and voltage-controlled fans
  • Sleeved black braiding protects wires and simplifies cable routing inside the case
  • Only the 4-pin fan reports RPM so the board can monitor a single speed signal
  • All attached fans follow the same PWM curve for synchronised speed control

Specifications

Brandaibileec
TypeFan power splitter cable
ColorBlack
Length10 inches
Cable Length10 in.
Connector A1x TX4 female
Connector B3x TX3/TX4 male
Connector Number4
FeaturesFeatures This TX4 4-pin multi-fan splitter cable connects to your motherboard and controls three PWM fans. Since only one RPM signal can be read by one motherboard connector, only one 4 TIPS CONNECTOR of the fan splitter cable carries an RPM signal; thus the motherboard will only read the RPM signal of the PWM device that is connected to full 4-pin connector. The other two male connectors are missing the pins of tachometric signal,ensure your fan speed monitor won't bounce all over the place from getting three sense signals.Guarantee motherboard getting an accurate RPM signal. Only o

Questions about this item

How many fans can draw power from a single motherboard header using this splitter?

The splitter connects three fans to one header, but only the fan on the 4-pin connector reports RPM data to the motherboard for monitoring.

Do all three fans share the same PWM speed curve when the system is under continuous load?

Yes, every connected fan follows the identical PWM signal so they ramp together, though 3-pin fans will ignore the signal and run at full speed.

Which motherboard headers accept the female connector on this cable?

The 4-pin female end plugs into any standard CPU_Fan or SYS_Fan header on the motherboard.
