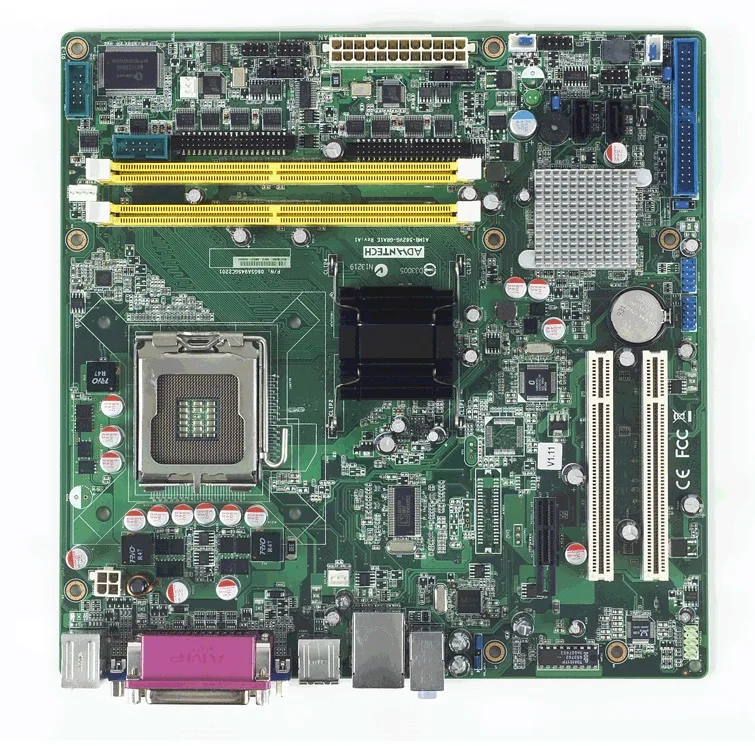

Green Micro ATX server motherboard with silver ports and black slots

Advantech

Advantech AIMB-562VG-GRA1E server motherboard

SKU CH-DYD5-0AMW7 MPN AIMB-562VG-GRA1E

Micro ATX server board with Intel 945G chipset, LGA775 socket, dual-channel DDR2 up to 4 GB, integrated GMA 950 graphics, single gigabit LAN, two SATA II ports, eight USB.

  • Supports up to 4 GB DDR2 memory via dual-channel 533/667 MHz DIMM slots
  • Intel 945G chipset with integrated GMA 950 graphics sharing 224 MB system memory
  • Gigabit Ethernet through Realtek 8111C controller on single RJ-45 connector
  • Ten serial ports including eight RS-232 and two RS-232/422/485 with auto flow control
  • Two SATA II ports at 300 MB/s plus eight USB and legacy parallel connectivity

Intel 945G micro-ATX server board

The Advantech AIMB-562VG-GRA1E is a micro-ATX server motherboard built around the Intel 945G chipset and an LGA775 socket. It supports dual-channel DDR2 memory at 533 or 667 MHz with a maximum capacity of 4 GB across two DIMM slots. Integrated Intel GMA 950 graphics share 224 MB of system memory.

Maintenance and legacy deployments

This board suits technicians maintaining existing LGA775 platforms or deploying replacement units in industrial systems that require 10 serial ports and parallel I/O. It does not suit builders who need more storage bandwidth than two SATA 300 MB/s ports provide, or anyone requiring modern memory standards or additional network interfaces.

LGA775 socket and DDR2 limit

The LGA775 socket and DDR2 memory architecture define the upgrade ceiling; processor and memory choices are confined to that generation. Verify that your chassis and power connections match the micro-ATX layout before ordering.

Highlights

  • Supports up to 4 GB DDR2 memory via dual-channel 533/667 MHz DIMM slots
  • Intel 945G chipset with integrated GMA 950 graphics sharing 224 MB system memory
  • Gigabit Ethernet through Realtek 8111C controller on single RJ-45 connector
  • Ten serial ports including eight RS-232 and two RS-232/422/485 with auto flow control
  • Two SATA II ports at 300 MB/s plus eight USB and legacy parallel connectivity

Specifications

No published specifications for this item yet.

Questions about this item

Does the Advantech AIMB-562VG-GRA1E ship with any cables or accessories, or must I source SATA cables and I/O brackets separately?

The board is supplied new with accessories included; no separate purchase of cables or brackets is required for the listed SATA II ports and rear I/O.

Should I choose DDR2-533 or DDR2-667 modules for the two 240-pin DIMM slots to reach the 4 GB maximum capacity?

Both DDR2-533 and DDR2-667 are supported in dual-channel mode; install two matching modules up to 2 GB each to hit the 4 GB limit.

How much system memory does the integrated Intel GMA 950 graphics reserve when the board is running with 4 GB installed?

The GMA 950 reserves 224 MB of system memory for graphics, leaving the remainder available to the operating system.
