Three blue 24-inch SATA cables with 90-degree connectors

ADCAUDX DC-0055 SATA cable 24 inch 3-pack 90-degree blue

SKU CH-59TS-6XSKT

Three 24-inch blue SATA-III cables with 90-degree locking connectors for tight internal drive bays

  • TypeSATA Cables
  • ColorBlue
  • Length24
  • Terminal GenderFemale-to-Female
  • Speed6 gigabits_per_second
  • Conductortin

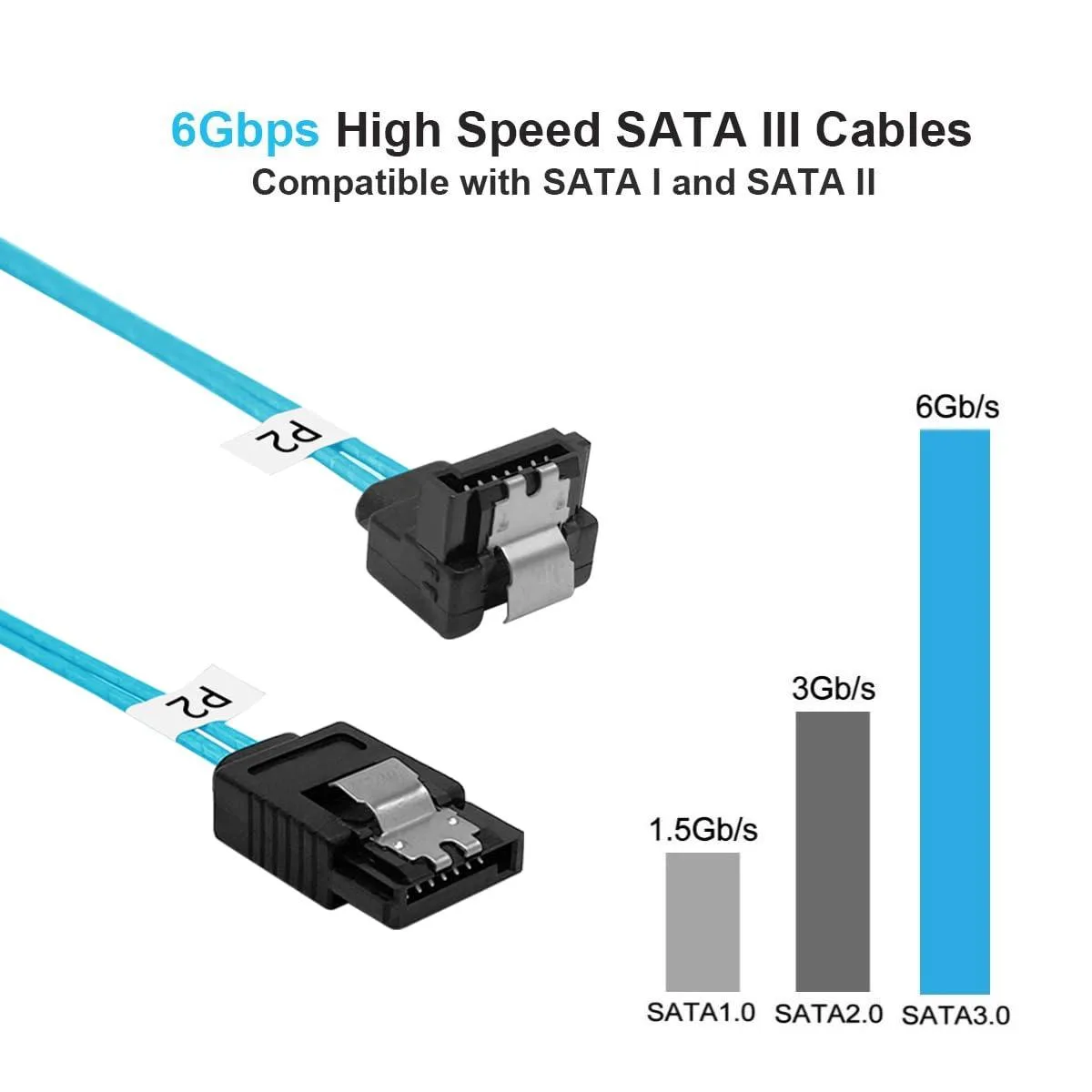

  • 6 Gbps transfer rate with SATA III spec
  • Three cables included for spare or RAID use
  • 90-degree connectors fit tight spaces

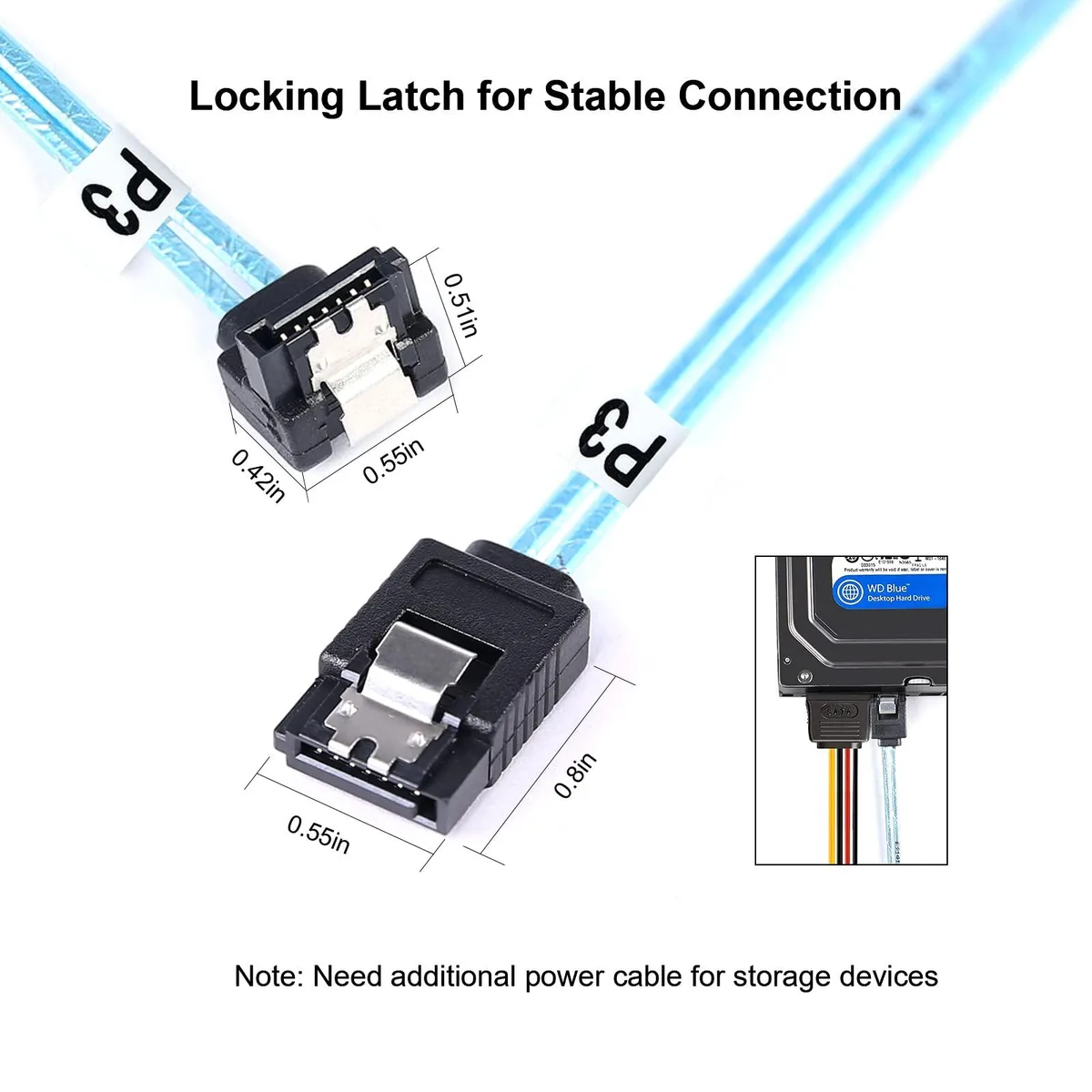

  • Locking latches keep connections secure
  • 24-inch length suits standard chassis layouts

Pack contents and purpose

This pack supplies three blue SATA III cables, each 24 inches long, with a 90-degree connector on one end and a straight connector on the other. They carry data only and do not deliver power to the attached drive. Builders expanding internal storage in a desktop, server or embedded chassis will use them to link 2.5 or 3.5 SSDs, HDDs or optical drives to a motherboard or host controller.

Build integration

The right-angle plug reduces the cable bend radius, helping route wires in tight spaces behind drive cages or near expansion cards. Each connector includes a locking latch that resists accidental disconnection during transport or vibration. Cables are labelled P1 to P3 so installers can trace individual runs in multi-drive or RAID arrays. No software or driver is required; the link is purely passive copper.

Sustained operation

Rated for 6 Gbps, the cables are backward compatible with SATA I and II devices and will run at the speed of the slowest attached component. The 30 AWG conductors use a tin solder process intended to maintain signal integrity over continuous read and write workloads. Performance is limited by the drive and controller specifications, not by the cable itself.

Highlights

  • 6 Gbps transfer rate with SATA III spec
  • Three cables included for spare or RAID use
  • 90-degree connectors fit tight spaces
  • Locking latches keep connections secure
  • 24-inch length suits standard chassis layouts

Specifications

BrandADCAUDX
ModelDC-0055
TypeSATA Cables
ColorBlue
Length24
Terminal GenderFemale-to-Female
Speed6 gigabits_per_second
Conductortin
FeaturesData Transfer

Questions about this item

What is the maximum data rate this SATA III cable supports?

The cable supports up to 6 Gbps, matching the SATA III specification, and is backwards compatible with SATA I and II drives.

How much heat or noise do these cables generate during continuous operation?

As passive copper cables they produce no noise and negligible heat; the 30 AWG thin conductors keep resistance low during all-day data transfers.

Which devices must I already have to use these right-angle SATA cables?

You need a motherboard or host controller with standard 7-pin SATA ports and SATA drives such as 2.5 or 3.5 inch SSDs, HDDs or optical drives; power cables are separate.
