Three blue right-angle SATA cables, 12 inch each

ADCAUDX DC-0054 SATA cable 12 inch 3 pack right angle 90 degree blue

SKU CH-N688-MYMCT

Three 12-inch blue SATA III cables with right-angle connectors and locking latches for 6 Gbps data transfer in tight spaces

  • TypeSATA Cables
  • ColorBlue
  • Length12
  • Connector DetailSata 7pin
  • Speed6 gigabits_per_second
  • Conductortin
  • 6 Gbps transfer rate for fast storage upgrades
  • 90-degree low-profile connectors fit tight server cases

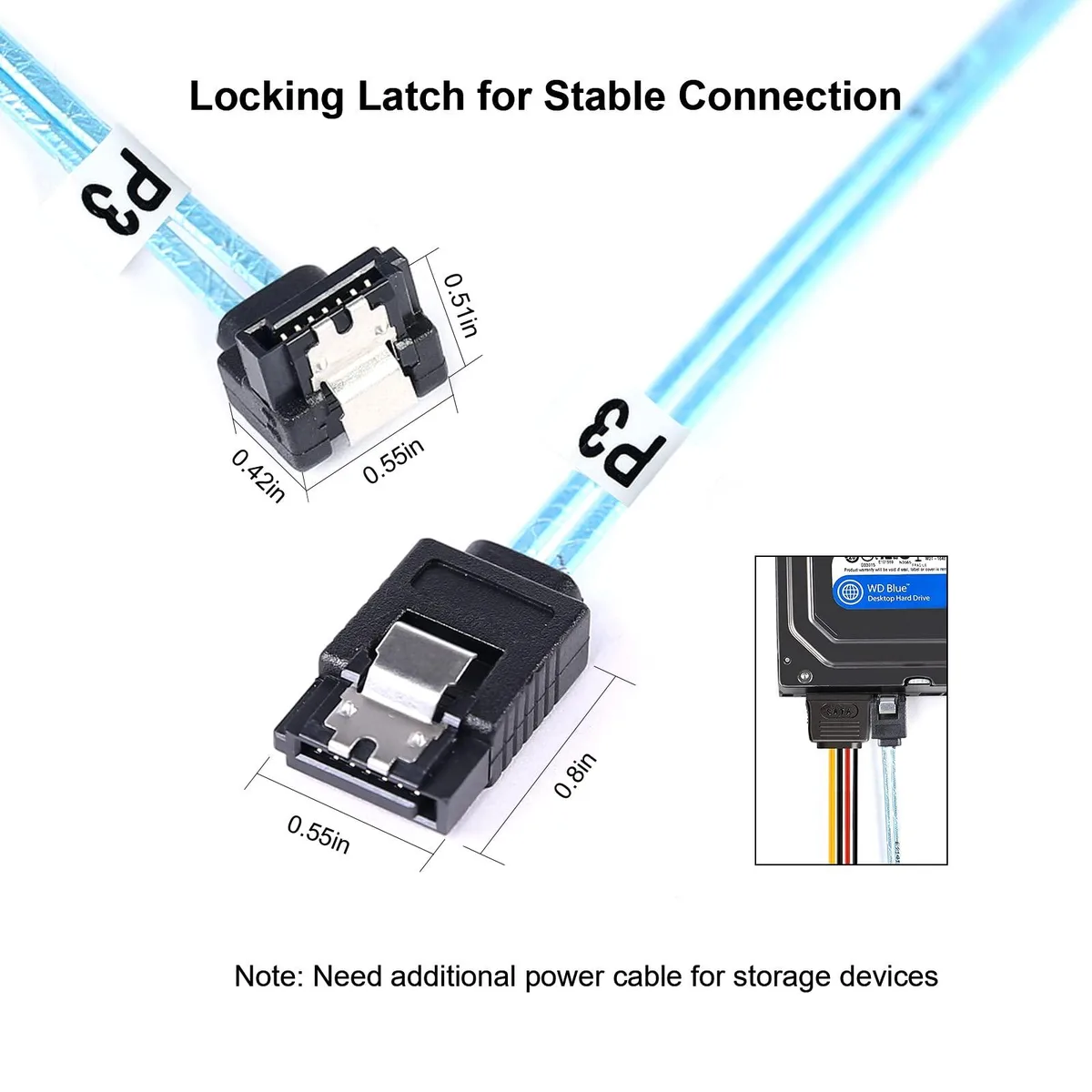

  • Locking latch on each plug secures the data link
  • 30 AWG thin cable improves airflow and routing
  • Three blue cables labeled P1–P3 simplify RAID wiring

Three-pack SATA data cables

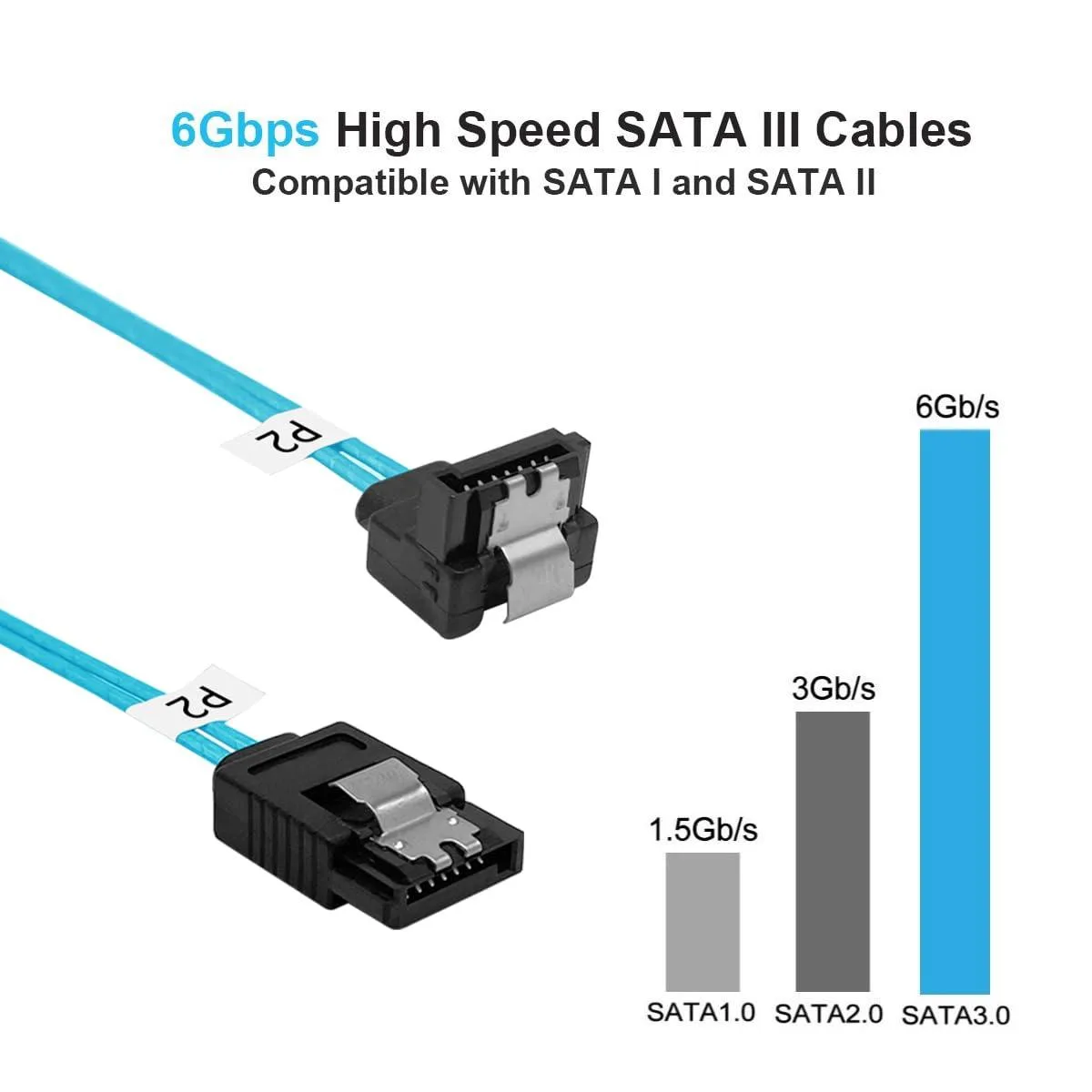

The ADCAUDX DC-0054 set supplies three 12-inch SATA III cables rated for 6 Gbps transfer. Each blue cable uses a 30 AWG thin conductor with tin soldering and a right-angle 90-degree connector on one end. Locking latches on the 7-pin plugs secure the link to motherboards, host controllers or RAID cards. The cables carry data only and do not deliver power to drives.

Replacing loose or long SATA leads

Builders upgrading from tangled round cables or short straight plugs gain cleaner routing in tight server or desktop chassis. The right-angle heads fit beside expansion cards and drive cages where straight connectors would block adjacent ports. Backward compatibility with SATA I and II devices means older HDDs or optical drives work without speed loss beyond their own limit. The jump is worth it when cable clutter threatens airflow or when labelled P1-P3 ends simplify multi-drive RAID wiring.

Fits standard 7-pin SATA ports

Each cable connects a motherboard, controller or backplane to 2.5-inch SSDs, 3.5-inch HDDs, optical drives or SAS targets that accept SATA data. The slim 30 AWG profile eases bundling behind drive trays and through grommets. No software or drivers are required; the connection is passive and hot-plug capable where the host supports it. A separate power cable from the PSU remains necessary for every drive.

Highlights

  • 6 Gbps transfer rate for fast storage upgrades
  • 90-degree low-profile connectors fit tight server cases
  • Locking latch on each plug secures the data link
  • 30 AWG thin cable improves airflow and routing
  • Three blue cables labeled P1–P3 simplify RAID wiring

Specifications

BrandADCAUDX
ModelDC-0054
TypeSATA Cables
ColorBlue
Length12
Connector DetailSata 7pin
Speed6 gigabits_per_second
Conductortin
FeaturesData Transfer

Questions about this item

How much clearance does the 90-degree SATA connector need behind a 2.5 or 3.5 drive?

The right-angle plug adds roughly 12 inches of cable from the drive edge, so allow at least that depth behind the drive bay for the bend.

Which end plugs in first when routing the three labeled cables P1 to P3?

Connect the straight SATA 7-pin end to the motherboard or controller, then press the right-angle end onto each drive until the locking latch clicks.

When should I replace one of these 30 AWG SATA 6Gbps cables?

Swap a cable if the latch no longer holds, the blue jacket shows kinks or cuts, or drive errors appear that disappear with a known-good cable.
