Five short blue SATA cables with 90-degree connectors

ADCAUDX DC-0049 SATA cable 0.5m 5-pack 90-degree blue

SKU CH-GSY2-WTDW9

Five 0.5 m SATA-III cables with 90-degree locking connectors for tight internal drive connections

  • TypeSATA Cables
  • ColorBlack/Blue
  • Length1.6
  • Terminal GenderFemale-to-Female
  • Speed6 gigabits_per_second
  • Conductortin
  • 5-pack gives spare cables for multiple drives
  • 5 m length keeps server cases tidy
  • 90-degree low-profile ends fit tight spaces
  • 6 Gbps SATA III speed with SATA I/II backwards compatibility
  • Locking latch on each connector secures the link

SATA III 6 Gbps 5-pack

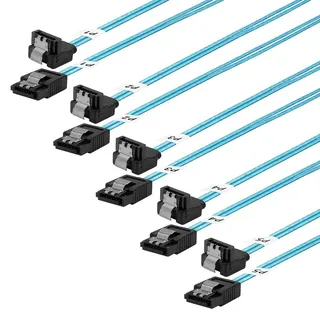

This pack contains five SATA III cables rated for 6 Gbps data transfer. Each cable measures 0.5 m (1.6 ft) and uses a straight-to-right-angle layout with blue 30 AWG conductors. They connect motherboards or host controllers to SATA SSDs, HDDs, optical drives or RAID controllers. The cables carry data only and do not supply power to the attached drive.

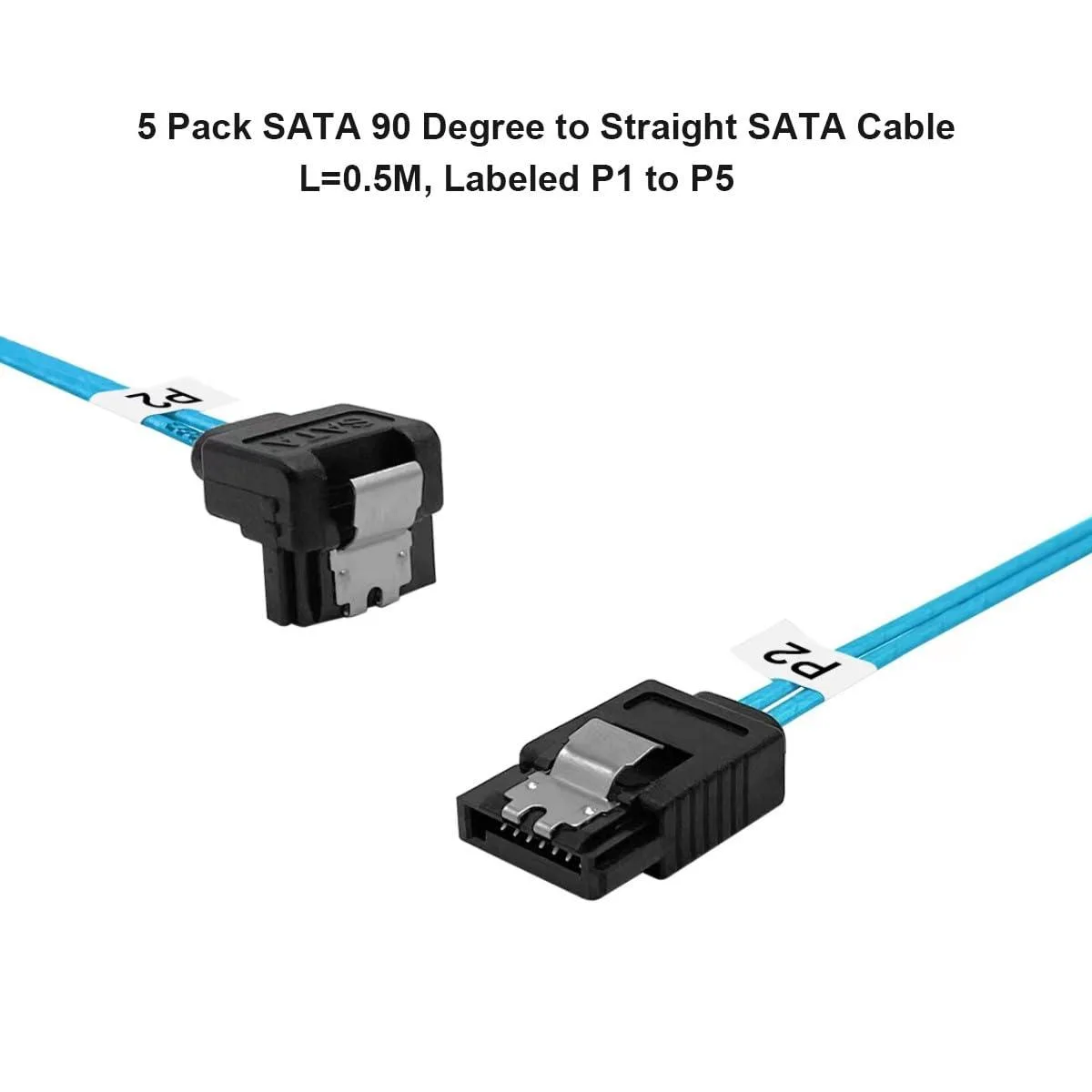

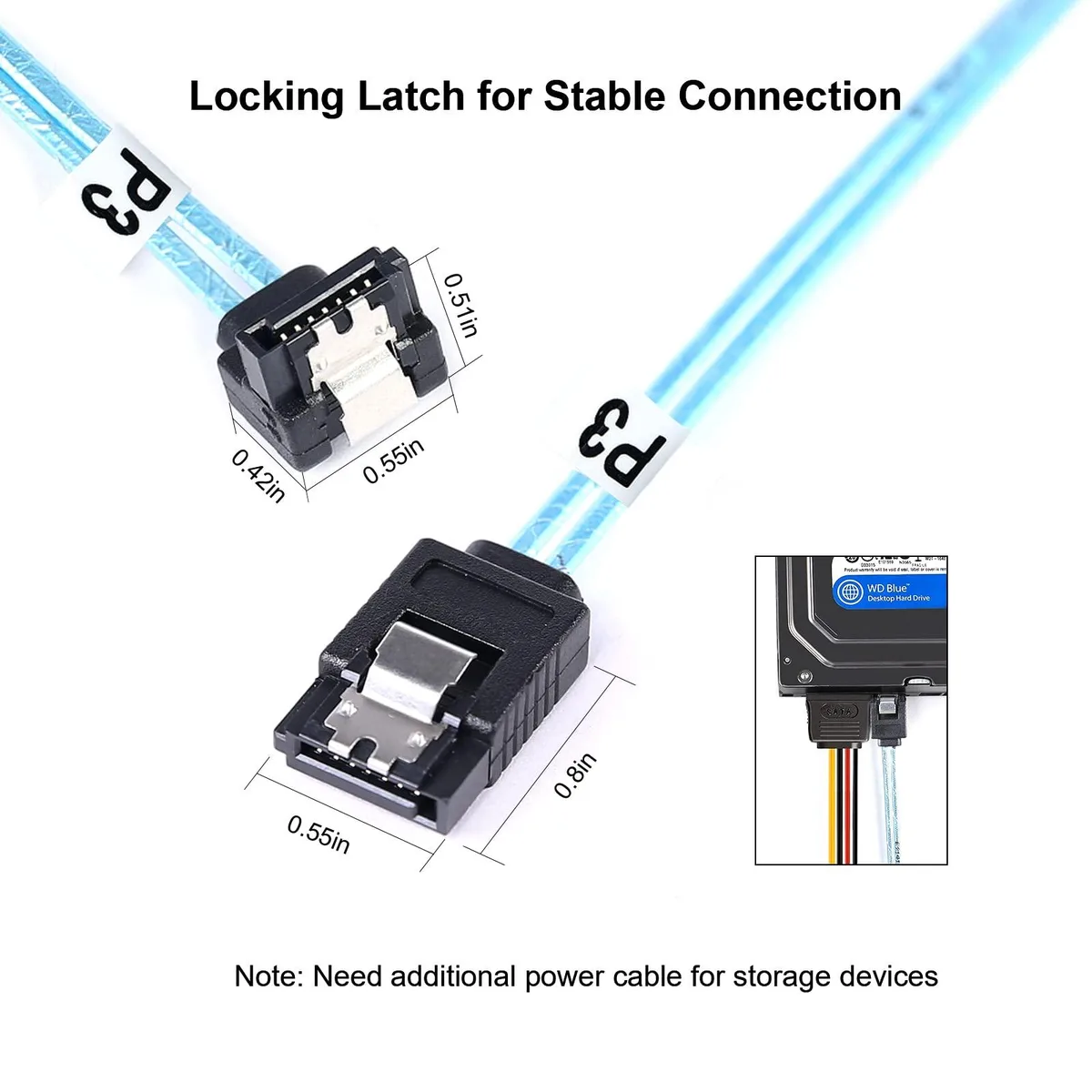

Right-angle fit and locking latches

The 90-degree connector profile helps route cables in tight chassis spaces and each plug includes a locking latch for a secure connection. Connectors are labelled P1 to P5 to simplify multi-drive or RAID installations. The thin 30 AWG construction makes the cables flexible and easy to seat, but the right-angle orientation may block adjacent ports on densely packed motherboards.

6 Gbps SATA III data rate

The single specification that determines compatibility is the 6 Gbps SATA III interface. These cables are backwards compatible with SATA I and SATA II devices, but the achieved transfer speed is limited by the slowest connected component. They use standard 7-pin female SATA connectors and contain no power conductors.

Highlights

  • 5-pack gives spare cables for multiple drives
  • 5 m length keeps server cases tidy
  • 90-degree low-profile ends fit tight spaces
  • 6 Gbps SATA III speed with SATA I/II backwards compatibility
  • Locking latch on each connector secures the link

Specifications

BrandADCAUDX
ModelDC-0049
TypeSATA Cables
ColorBlack/Blue
Length1.6
Terminal GenderFemale-to-Female
Speed6 gigabits_per_second
Conductortin
FeaturesData Transfer

Questions about this item

How do I confirm the 6 Gbps link is active after connecting the 90-degree SATA cables?

The motherboard BIOS or OS disk utility will report the negotiated SATA speed; a 6 Gbps link shows as SATA 3, while SATA I or II drives will fall back to their rated speeds.

What comes in the 5-pack and what must I supply separately?

Five 0.5 m blue SATA 7-pin female-to-female cables with right-angle connectors and locking latches are included; drive power cables are not included and must be provided by the power supply.

Which cable variant suits a 2.5-inch SSD versus a 3.5-inch HDD in a tight server chassis?

The same 90-degree 30 AWG cables fit both 2.5 and 3.5-inch drives; the right-angle design eases routing in crowded bays and the labelled P1-P5 ends help identify each path in multi-drive or RAID setups.
