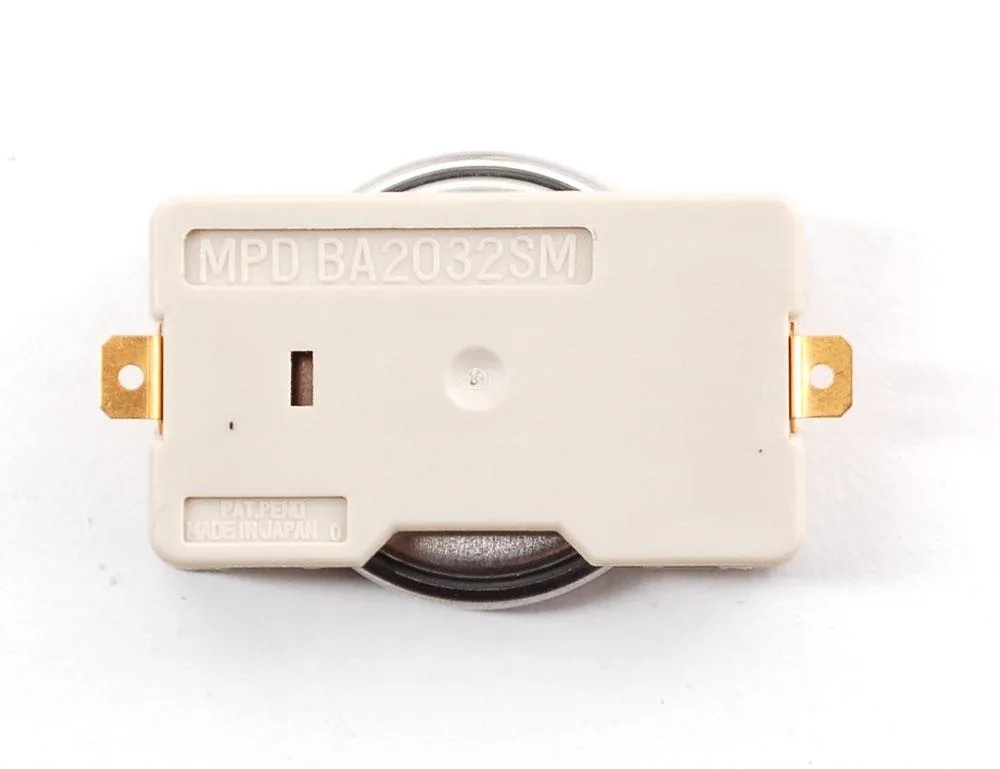

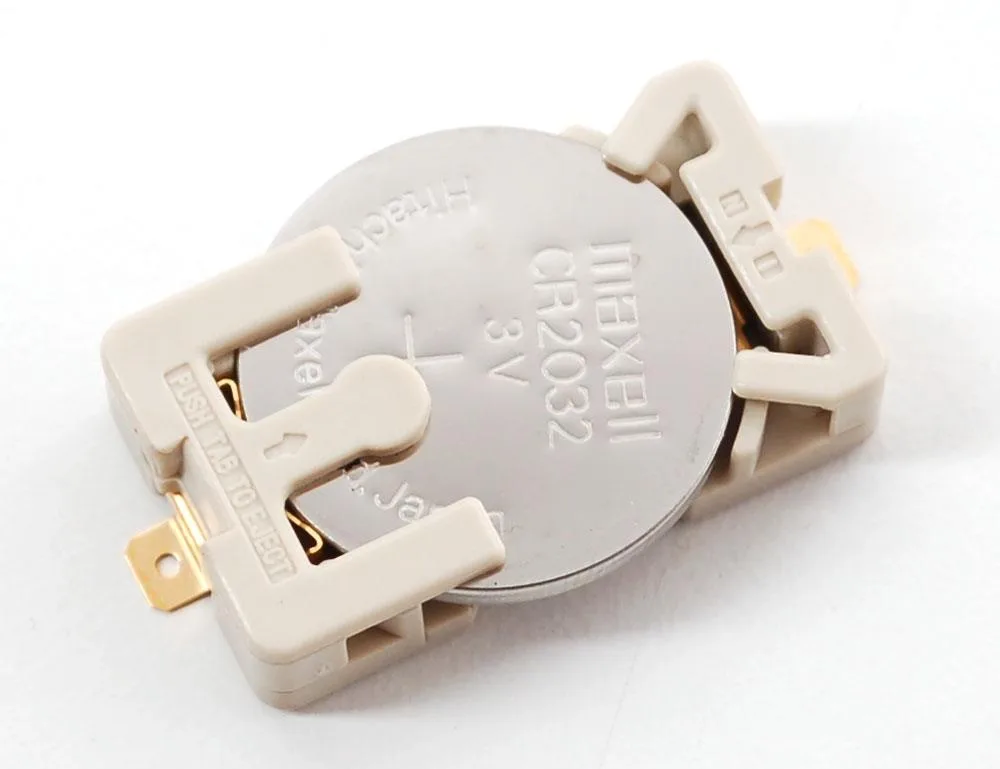

Small flat plastic holder with two metal tabs and a round 20 mm coin-cell slot

Adafruit

Adafruit ADA-653 Sewable CR2032 Battery Holder

SKU CH-C8R7-RVPDG

Sewable holder for CR2032 coin cells, with needle-friendly tabs for wearable circuits

  • TypeOther
  • Sewable tabs accept a #5 needle for stitching into fabric
  • Holds CR2032 coin cells measuring 20 mm diameter and 3.2 mm thick
  • Flat plastic back allows secure gluing for mechanical stability
  • Snap-in design makes battery insertion and removal simple
  • Delivers 3 V from widely available 200+ mAh lithium cells

Sewable CR2032 Battery Holder for Wearable Projects

This sewable CR2032 battery holder adds a compact power source to small wearable projects. It accepts standard 20 mm diameter lithium coin cells with 3.2 mm thickness. Two 1 mm holes in the metal tabs allow stitching with a #5 or smaller needle for secure conductive connections. The flat plastic back can be glued for extra mechanical stability.

Replaces Bulky Holders or Direct Soldering

The holder replaces bulkier battery compartments or fragile direct soldering when space and flexibility matter. The jump is worth it for projects that need quick battery changes without desoldering. It is not for builders who need rechargeable cells or higher capacity than the 200 mAh typical of CR2032 coins.

Simple Hand-Sewn Installation

Installation is straightforward: stitch through the tab holes with conductive thread and snap the coin cell into place. The sturdy holder ejects the battery with a push for easy replacement. What usually goes wrong is using a needle larger than #5, which cannot pass through the 1 mm holes, or expecting rechargeable chemistry from a lithium coin cell.

Highlights

  • Sewable tabs accept a #5 needle for stitching into fabric
  • Holds CR2032 coin cells measuring 20 mm diameter and 3.2 mm thick
  • Flat plastic back allows secure gluing for mechanical stability
  • Snap-in design makes battery insertion and removal simple
  • Delivers 3 V from widely available 200+ mAh lithium cells

Specifications

BrandAdafruit Industries
ModelADAID-653
Part NumberADA-653
TypeOther

Questions about this item

What size needle fits through the 1 mm holes in the metal tabs?

A #5 needle or smaller passes through the 1 mm holes in the connection tabs for sewing.

How is the CR2032 coin cell inserted and removed?

The battery snaps into the holder and releases with a simple push on the cell.

When will the CR2032 battery need replacing?

The 200 mAh lithium coin cell is not rechargeable and must be swapped once depleted.
