Adafruit 2.4GHz Mini Flexible WiFi Antenna uFL Connector
A 4" flexible uFL antenna covering 2.4–2.5GHz with 4dBi gain and 50Ω impedance for direct IoT module connection
- TypeEngineering Development Tools
- Flexible 100 mm cable suits tight enclosures
- uFL connector removes need for extra adapters
- 4 dBi gain extends 2.4–2.5 GHz range
- 90 % efficiency keeps signal strong
- Omni-directional radiation covers all angles
IoT Antenna for 2.4GHz Projects

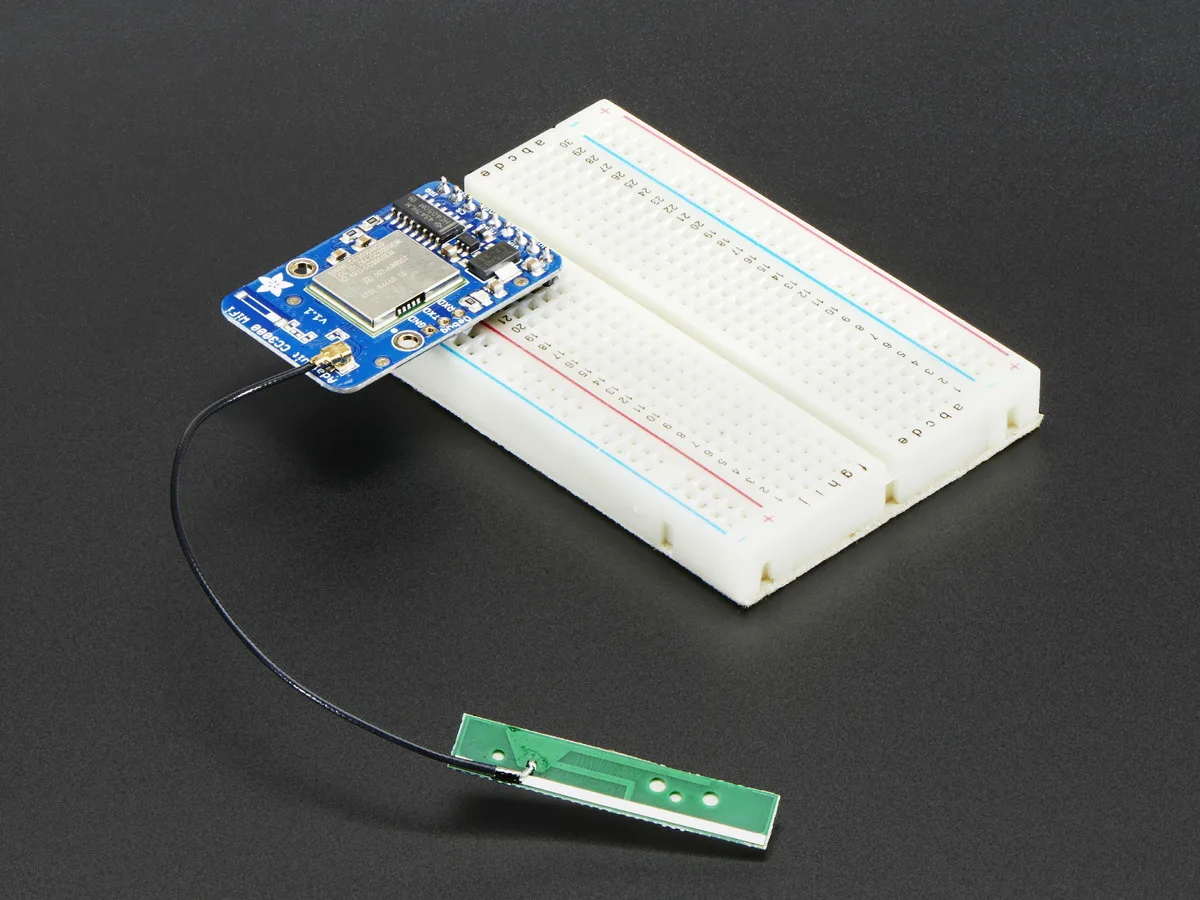

This 100mm flexible antenna connects directly via a uFL connector to 2.4–2.5GHz wireless modules. It suits developers adding Wi-Fi to IoT prototypes or embedded boards such as the CC3000. The omni-directional radiation pattern covers a broad area without precise aiming. Approximate gain is 4dBi with a 50Ω impedance match.
Thermal Noise and Power Behaviour
The antenna is a passive component and draws no power or generates no heat during operation. It adds no audible noise to a build. Efficiency is rated at 90% across the 2400–2500MHz and 4900–5900MHz bands. VSWR stays at 2.0 maximum with 140MHz bandwidth.

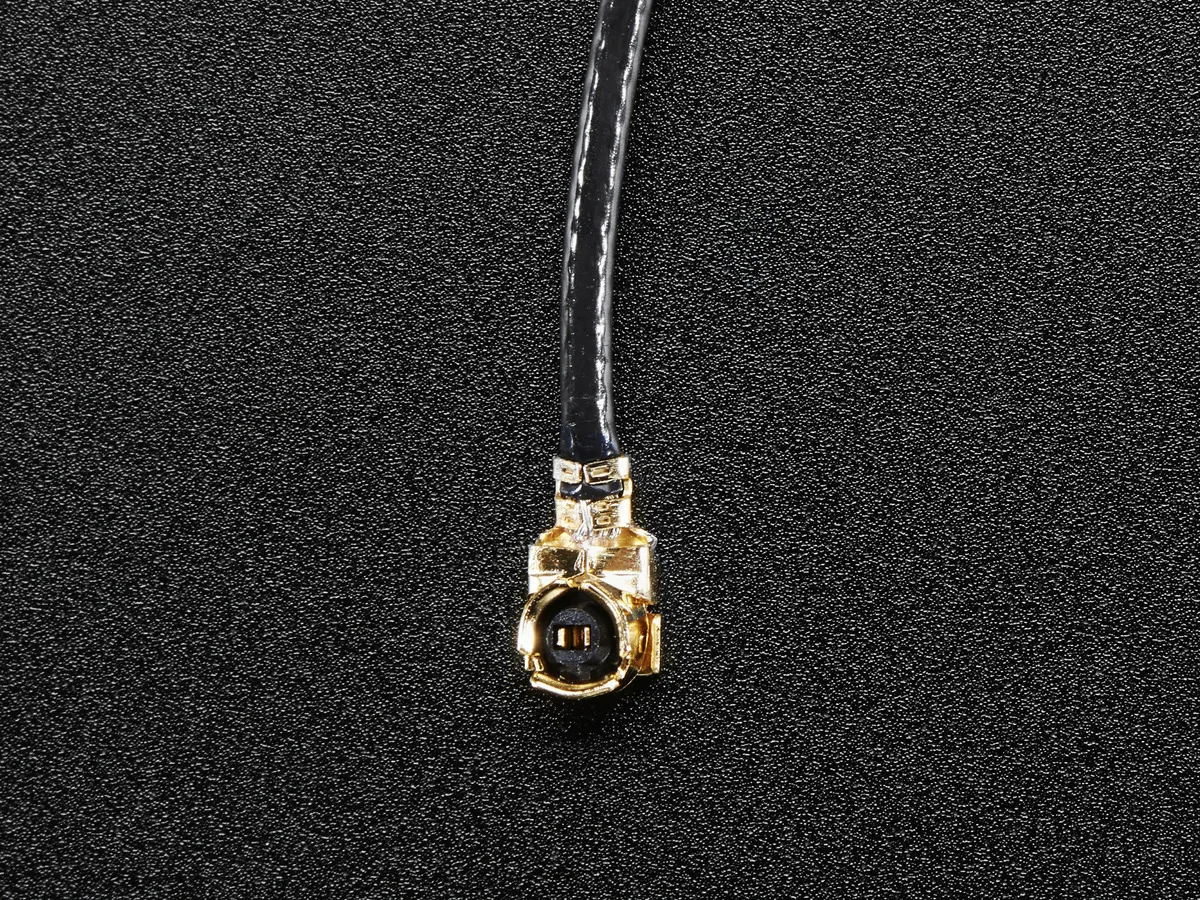

What the uFL Connector Changes
The fitted uFL connector removes the need for separate adapters between the antenna and compatible radio boards. Cable length is 100mm and the radiating element measures 40mm by 8mm. Total weight is 0.7g. Linear polarisation and omni-directional radiation are inherent to the design.
Highlights
- Flexible 100 mm cable suits tight enclosures
- uFL connector removes need for extra adapters
- 4 dBi gain extends 2.4–2.5 GHz range
- 90 % efficiency keeps signal strong
- Omni-directional radiation covers all angles
Specifications
| Type | Engineering Development Tools |
|---|
Questions about this item
How do I attach the uFL connector to my board without damaging the tiny socket?
Align the uFL plug squarely over the board receptacle and press straight down with a fingertip until it clicks; the 100 mm flexible cable then routes without putting side-load on the socket.
Will the flexible antenna element fatigue or need periodic replacement?
The 40 mm × 8 mm radiating element weighs 0.7 g and is rated for continuous 2.4–2.5 GHz operation; no scheduled replacement is required unless the cable sheath is cut or the uFL plug is physically broken.
At what point does sustained transmit power run into the VSWR limit of this antenna?
The bandwidth spec lists VSWR 2.0 max across 140 MHz centred on 2.4 GHz; pushing continuous power beyond the point where reflected power exceeds that ratio will be the first sustained-use limit.
