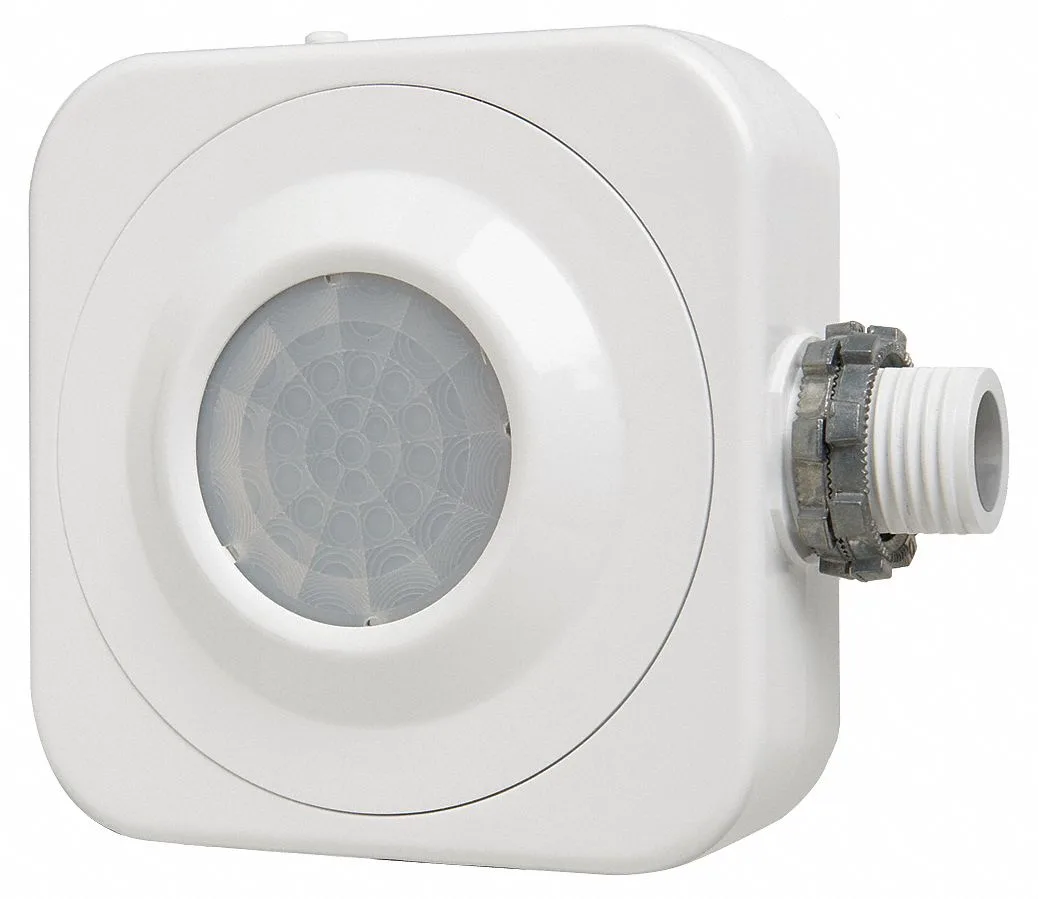

White rectangular fixture mount sensor with lens and wiring terminals

Acuity Sensor Switch

Acuity Sensor Switch CMRB 6 LT Fixture Mount Sensor Occupancy Photocell 0 to 10V

SKU CH-PWGY-8JGBF

Fixture-mount occupancy sensor with passive infrared detection, photocell, and 0–10 V dimming for fluorescent, incandescent or LED loads up to 800 W at 120 V, covering 2 827 sq ft at heights to 45 ft

  • Fixture-mount sensor enables easy installation
  • PIR occupancy detection up to 2,827 sq ft at 45 ft mounting height
  • Built-in photocell supports daylight harvesting for energy savings
  • 0-10V dimming compatible with fluorescent, LED and incandescent loads
  • cUL listed and RoHS compliant for safety and environmental standards

High-Bay Occupancy Sensor

The SENSORSWITCH CMRB 6 LT mounts directly to a fixture and uses passive infrared technology to detect occupancy in high-bay environments. It operates on 120, 230, or 277 volts AC and covers up to 827 square feet at mounting heights up to 45 feet.

Photocell and 0-10V Dimming

An integrated photocell holds lights off when sufficient daylight is present, reducing energy use. The 0 to 10 volt output provides continuous dimming control for compatible fluorescent, incandescent, or LED loads up to 800 watts at 120 volts.

Fixture-Mount Construction

Hard-wired communication and a fixture-mount design suit permanent industrial or commercial installations. The white housing carries cUL listing and RoHS compliance, and the unit supports a maximum load of 6.67 amps at 120 volts AC.

Highlights

  • Fixture-mount sensor enables easy installation
  • PIR occupancy detection up to 2,827 sq ft at 45 ft mounting height
  • Built-in photocell supports daylight harvesting for energy savings
  • 0-10V dimming compatible with fluorescent, LED and incandescent loads
  • cUL listed and RoHS compliant for safety and environmental standards

Specifications

BrandSENSORSWITCH

Questions about this item

Does the PIR lens or photocell need periodic cleaning to keep the occupancy detection accurate?

The fixture-mount sensor uses a passive infrared lens that should be kept free of dust and debris; a soft dry cloth is sufficient for routine cleaning.

At the 45 ft mounting height the 2 827 sq ft coverage pattern is the first limit reached before the 800 W load rating?

Yes, the 2 827 sq ft detection zone at 45 ft is the primary constraint; the 800 W at 120 V rating provides ample headroom for typical high-bay LED loads.

How much heat does the unit add to the fixture when it powers an 800 W load continuously?

The sensor itself draws minimal power and adds negligible heat; the 800 W rating reflects the connected lighting load, not internal dissipation.
