White smoke detector shaped covert camera with 3.6mm lens

ABL Corp

ABL Corp 2MP Smoke Detector Hidden Camera 3.6mm Lens

SKU CH-5HKZ-J0BRT

A covert 2MP camera inside a white smoke-detector housing, delivering 1080p video over BNC with selectable AHD, HDCVI, HDTVI or CVBS output and a 3.6mm fixed lens

  • ColorWhite
  • Network CameraNo
  • Camera Type2 Megapixel
  • TypeCovert Camera
  • Connection TypeBNC
  • Sensor & DetectorCMOS
  • 2MP 1080p resolution captures clear identifying detail
  • Selectable AHD, HDCVI, HDTVI or CVBS output fits existing DVRs
  • 6mm fixed lens provides wide covert viewing angle
  • Smoke detector disguise enables discreet monitoring from above
  • BNC connection works with standard coax cabling

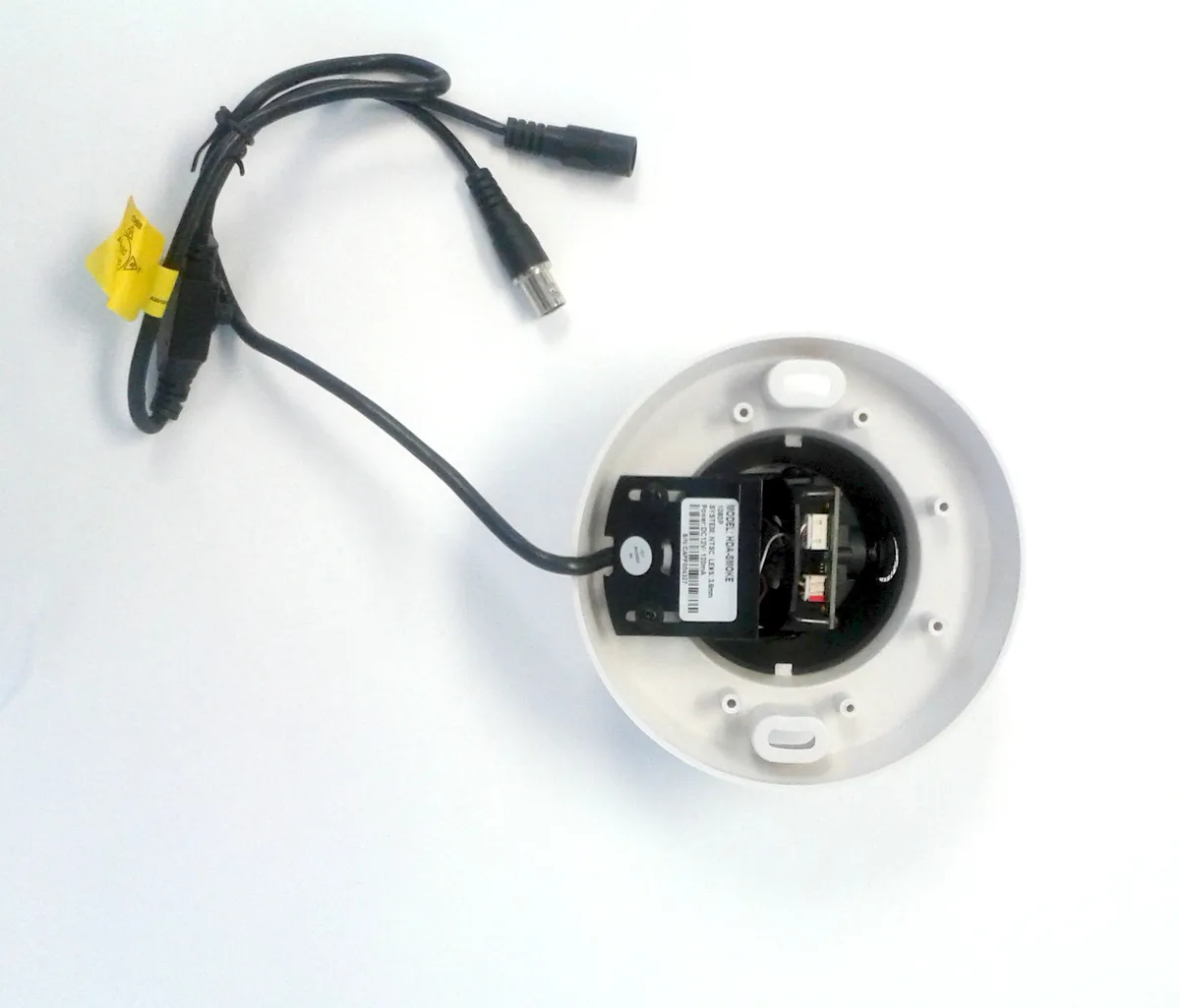

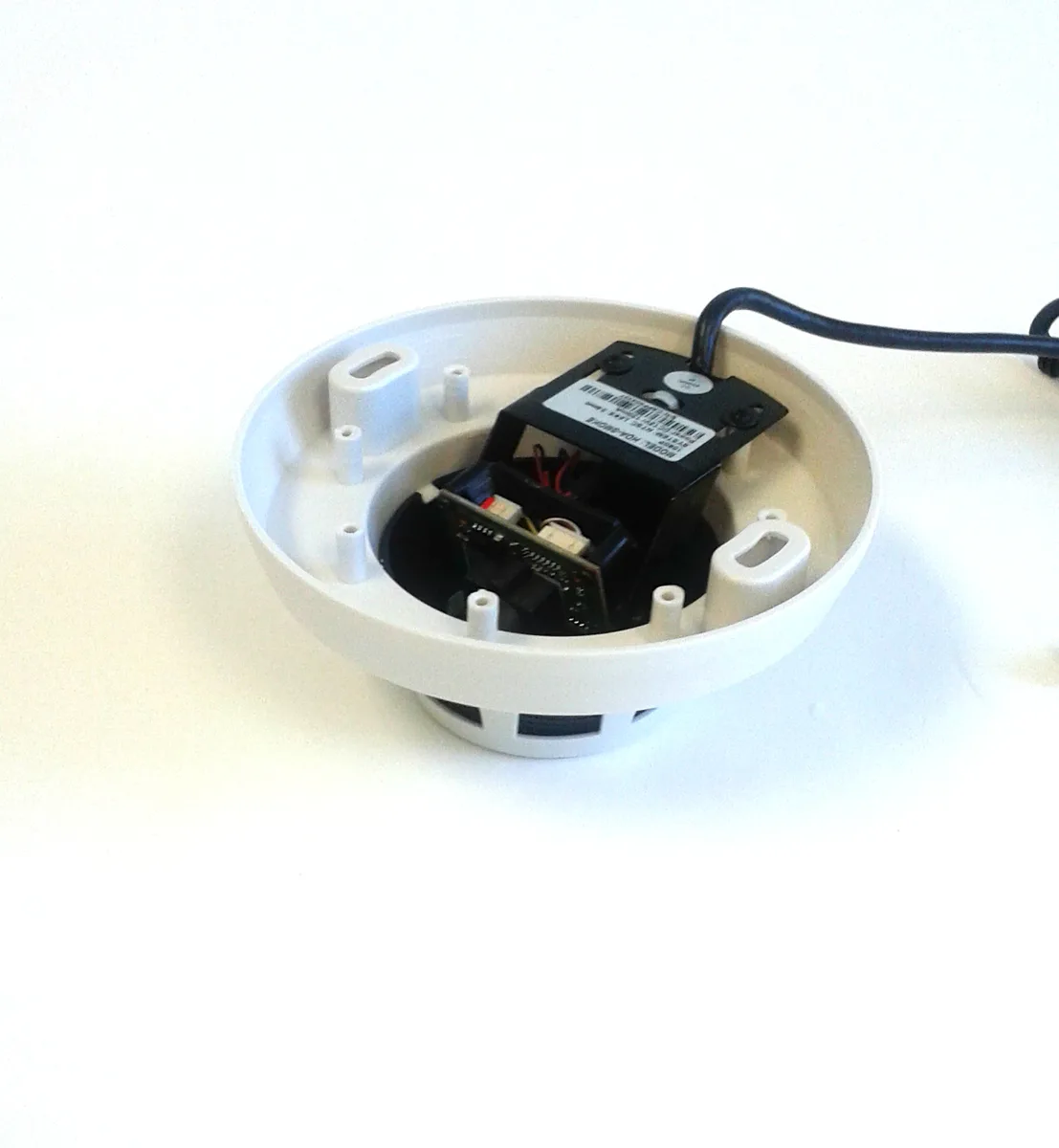

Discreet Smoke-Detector Housing

This covert camera is built inside a white smoke-detector shell so it monitors a room from a high, wide-angle vantage point without drawing attention. It captures 2 megapixel 1080P video at 1920 x 1080 resolution using a 3.6mm fixed lens and a CMOS sensor. The unit is designed for indoor security installations where visible hardware would compromise surveillance.

Simple Coax Connection

Installation uses a standard BNC connector and existing coaxial cable, so no new wiring is required when upgrading an older analog system. A 12V DC power supply must be provided separately. The camera offers selectable AHD, HDCVI, HDTVI or CVBS output through an on-screen display menu; choosing the wrong mode will result in no picture on the recorder.

Check Recorder Compatibility

Verify that your DVR supports at least one of the four signal formats (AHD, HDCVI, HDTVI, CVBS) before ordering. The camera is not a network device and cannot connect directly to an NVR, router or Wi-Fi system. Buyers who need IP streaming, remote app access or powered-over-coax operation should look for a different product type.

Highlights

  • 2MP 1080p resolution captures clear identifying detail
  • Selectable AHD, HDCVI, HDTVI or CVBS output fits existing DVRs
  • 6mm fixed lens provides wide covert viewing angle
  • Smoke detector disguise enables discreet monitoring from above
  • BNC connection works with standard coax cabling

Specifications

ColorWhite
Network CameraNo
Camera Type2 Megapixel
TypeCovert Camera
Connection TypeBNC
Sensor & DetectorCMOS

Questions about this item

How do I confirm the 1080p image is displaying correctly on my DVR after connecting the BNC cable?

Check the DVR monitor for a 1920 x 1080 resolution signal; use the On-Screen-Display menu on the camera to cycle through AHD, HDCVI, HDTVI or CVBS output modes until the picture appears sharp and stable.

Does the package include the 12V DC power supply and coaxial cable needed for installation?

The camera provides a BNC video connection only; a 12V DC power adapter and suitable coaxial cable must be purchased separately to complete the setup.

Is the 3.6mm fixed lens suitable for covering a standard room from a ceiling mount?

Yes, the 3.6mm lens delivers a wide-angle view ideal for ceiling-mounted smoke-detector placement, capturing a broad area at 1080p resolution without manual focus adjustment.
