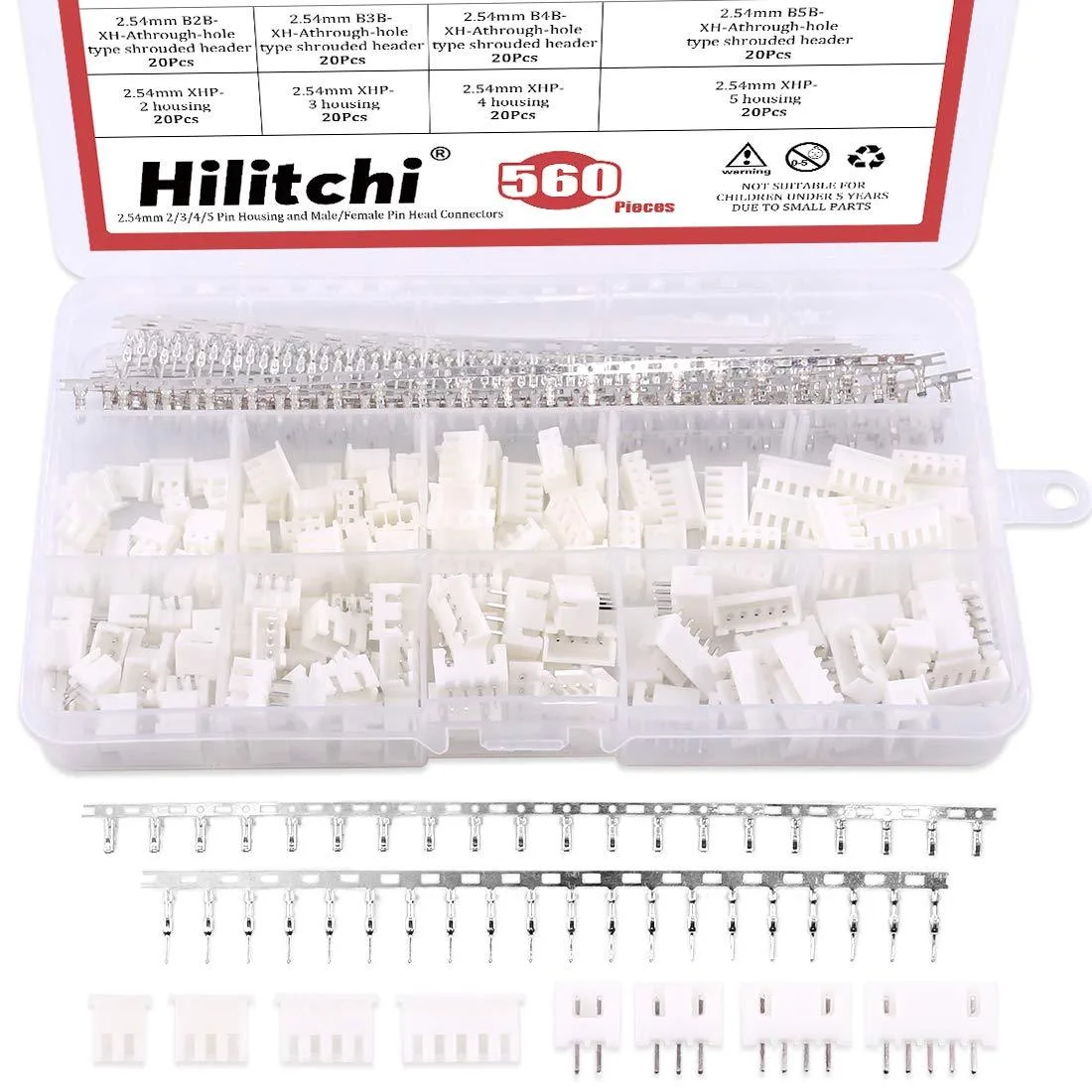

Assorted JST-XHP connector housings and pins in plastic compartments

2.54mm JST-XHP Connector Adapter Plug Set 560Pcs

SKU CH-0RAZ-9EK7A

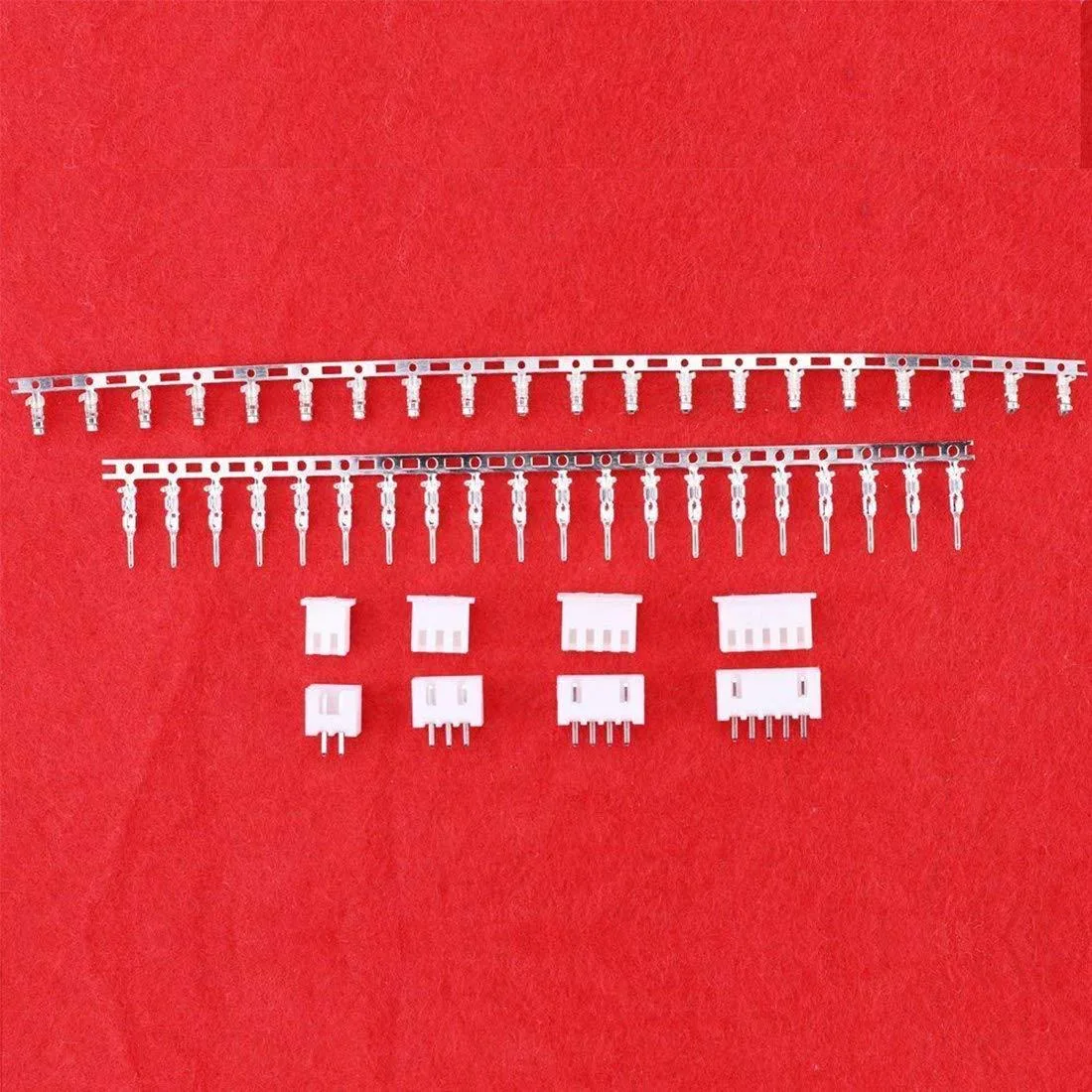

560-piece JST-XHP compatible connector kit with 2, 3, 4 and 5-pin housings, headers and 200 each male and female crimp pins

  • Compatibility/FitmentAdhesives; Enamels; Epoxies
  • Complete 560-piece connector kit for prototyping and repair
  • Includes 2, 3, 4 and 5-pin JST-XHP housings for versatile wiring
  • 200 male and 200 female crimp pins for custom cable assemblies
  • 54 mm pitch matches standard breadboard and perfboard spacing
  • Through-hole shrouded headers simplify PCB mounting

Connector Kit Composition

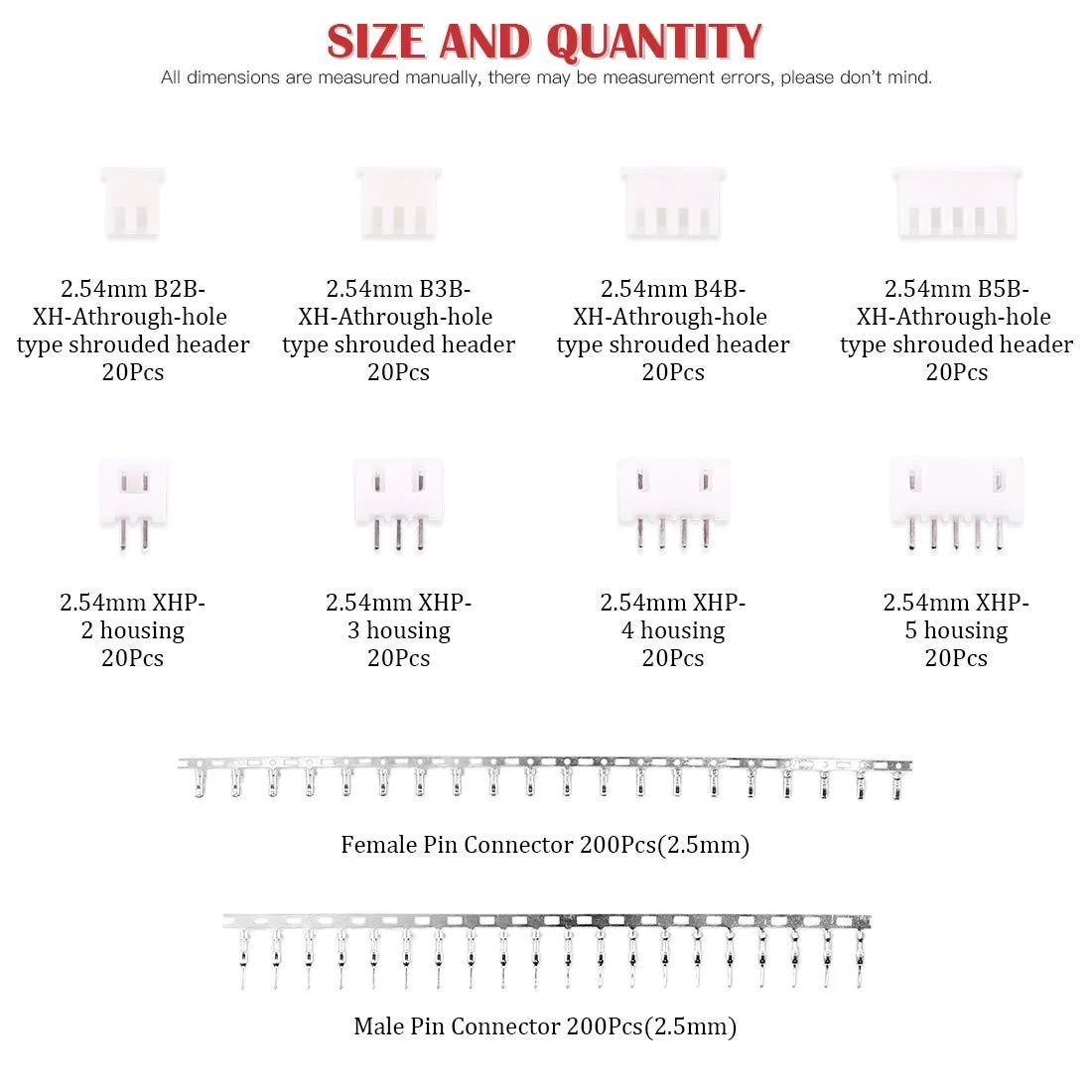

This 560-piece set supplies 2.54 mm JST-XHP compatible housings and pins for low-voltage wiring. It includes 20 pieces each of 2, 3, 4 and 5-pin housings plus matching shrouded headers. A further 200 female and 200 male crimp pins complete the assortment for custom cable assembly.

Build Integration

The through-hole headers solder directly to standard 2.54 mm perfboard or PCB layouts, freeing the builder from proprietary connectors. Housings accept the supplied crimp pins, so wire looms can be terminated without specialised tooling beyond the recommended crimper. No adhesive, enamel or epoxy is required for the electrical connections.

Thermal and Power Profile

These passive connectors add negligible resistance and generate no measurable heat during normal low-current operation. They operate silently and draw no power themselves, leaving the system’s thermal and acoustic profile unchanged. Current capacity is determined by the wire gauge chosen for crimping.

Highlights

  • Complete 560-piece connector kit for prototyping and repair
  • Includes 2, 3, 4 and 5-pin JST-XHP housings for versatile wiring
  • 200 male and 200 female crimp pins for custom cable assemblies
  • 54 mm pitch matches standard breadboard and perfboard spacing
  • Through-hole shrouded headers simplify PCB mounting

Specifications

Compatibility/FitmentAdhesives; Enamels; Epoxies

Questions about this item

How many complete 2.54mm JST-XHP connectors can I build from the 560-piece set?

The kit supplies 20 housings each for 2, 3, 4 and 5-pin versions plus 200 male and 200 female crimp pins, so the number of finished connectors depends on the pin-count mix you choose.

Does the assortment generate noticeable heat or noise during continuous operation?

These are passive crimp housings and pins with no active components, so they produce no heat or noise of their own.

What crimping tool is required to attach the supplied pins to wire?

The manufacturer recommends crimping tool for the JST-XH male and female pins included in the set.
