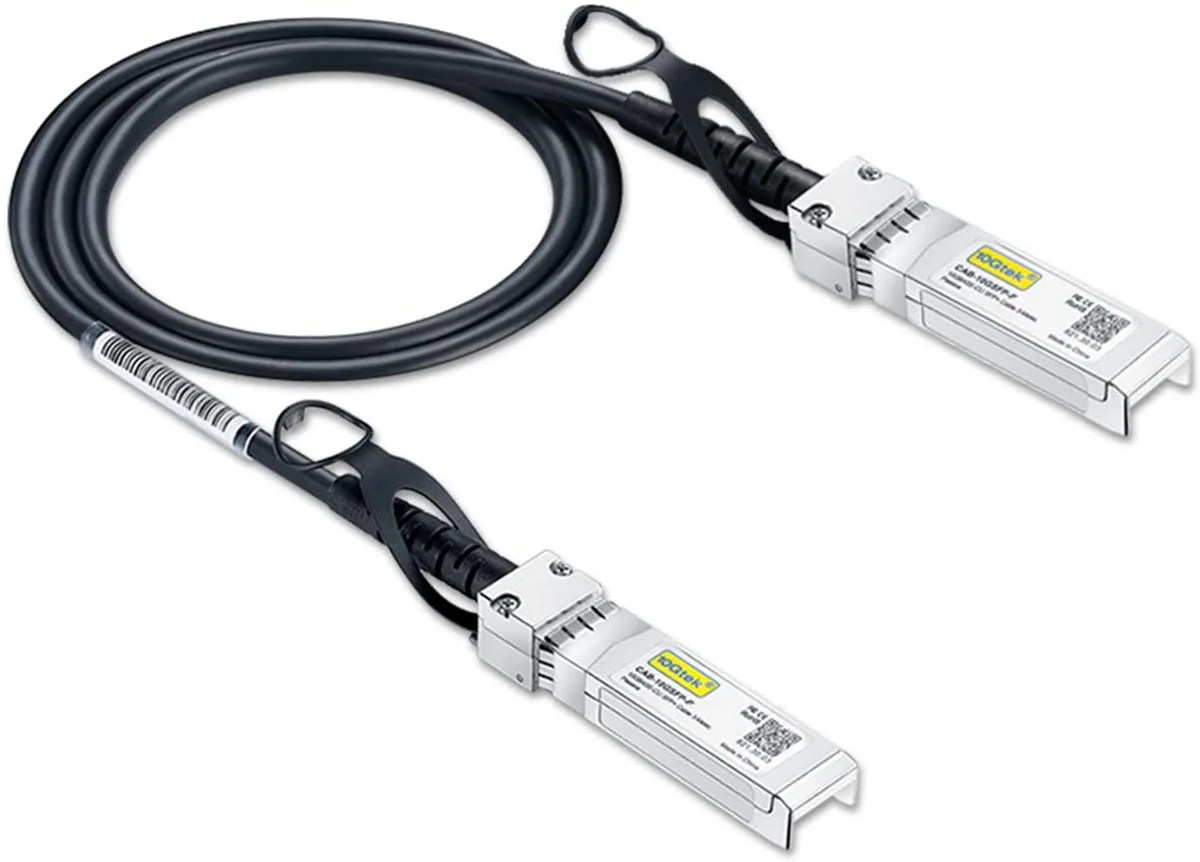

Black 1 m SFP+ passive twinax DAC cable with SFP+ connectors both ends

10Gtek

10Gtek SFP+ DAC Cable 1m 30AWG Passive Twinax

SKU CH-MD6S-R145R

A passive 10GbE SFP+ twinax cable for short-reach links between switches, servers and storage

  • CatTwinaxial
  • Length3.28 ft.
  • ColorBlack
  • 10 Gb/s throughput for high-speed networking
  • Passive twinax design reduces power consumption
  • 1 m length fits short rack connections
  • Tested on switches for reliable operation
  • Compatible with Ubiquiti ES-48 and ES-16-XG

Direct-attach copper for 10 GbE racks

This passive twinax cable connects two SFP+ ports at 10.3 Gb/s over a 1-meter link. It targets administrators who need a low-power, cost-effective interconnect for network-attached storage, storage-area networks or high-performance computing clusters. The 30 AWG construction is rated for runs from 0.5 to 3 meters and ships individually tested for signal integrity.

Replaces dual optics and fibre patch cords

A single twinax assembly displaces two SFP+ transceivers and a separate fibre jumper, cutting rack density, acquisition cost and power draw compared with 10GBASE-CX4 or CAT6A 10GBASE-T alternatives. The jump is worth it when the link stays inside one rack or spans adjacent racks within the 3-metre passive window; longer runs or connections to Intel NICs beyond 2 metres require 24 AWG cable to maintain stability.

Passive reach limited to three metres

Signal integrity on 30 AWG copper is guaranteed only up to 3 metres; beyond that the eye diagram closes unless the switch ASIC provides extra equalisation, as seen on some Cisco platforms that tolerate 5 metres. The cable cannot be used for links that exceed the passive specification, nor for active-optical or fibre-channel distances that demand powered modules or different media.

Highlights

  • 10 Gb/s throughput for high-speed networking
  • Passive twinax design reduces power consumption
  • 1 m length fits short rack connections
  • Tested on switches for reliable operation
  • Compatible with Ubiquiti ES-48 and ES-16-XG

Specifications

CatTwinaxial
Length3.28 ft.
ColorBlack

Questions about this item

What SFP+ port spacing does the 1-metre passive twinax cable need?

The cable plugs directly into two SFP+ cages on a switch, router, server or NIC; no extra adapter or bracket is required.

Which step do installers often miss when seating the 10Gtek SFP+ DAC?

Push each connector until the latch clicks; a loose fit causes link errors even though the cable is only 3.28 ft long.

When should the 30 AWG passive twinax be replaced with a heavier gauge?

If you run the cable beyond 3 metres or pair it with Intel NICs over 3 metres, move to 24 AWG to avoid instability.
