10Gtek LC-LC OM3 Duplex LSZH 6.56 ft 10 Pack

10-Pack LC-LC OM3 Duplex Cables

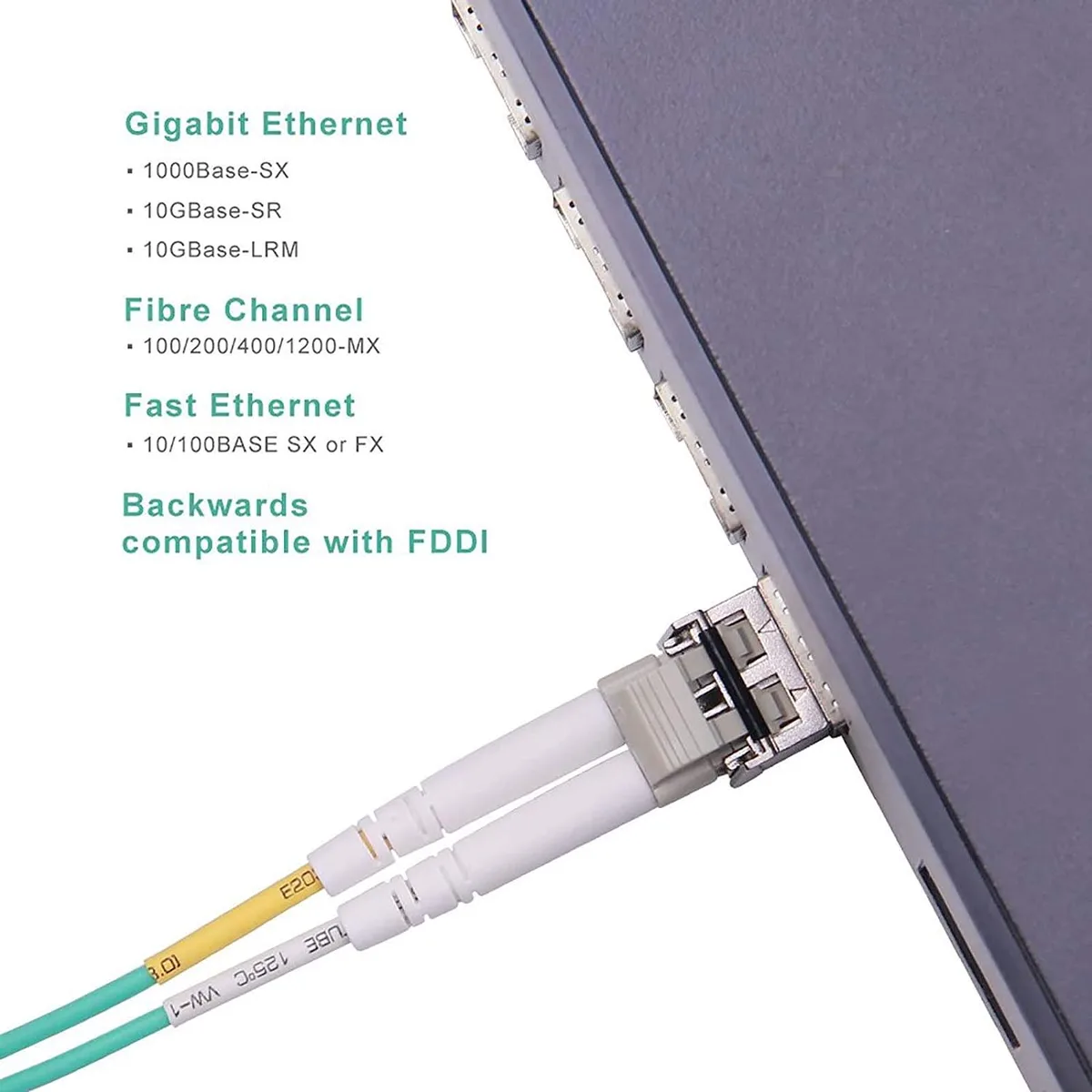

This 10-pack provides LC-to-LC OM3 multimode duplex patch cords for data-centre and enterprise SAN links. Each 6.56 ft cable uses bend-insensitive 50/125 µm fibre with zirconia ceramic ferrules and an LSZH jacket rated to TIA-568-C.3 and IEC 60793-2-10 A1b. They suit installers needing multiple pre-tested jumpers for SFP transceivers running 1000Base-SX, 10GBase-SR or Fibre Channel up to 1200-MX.

Pre-Install Checks

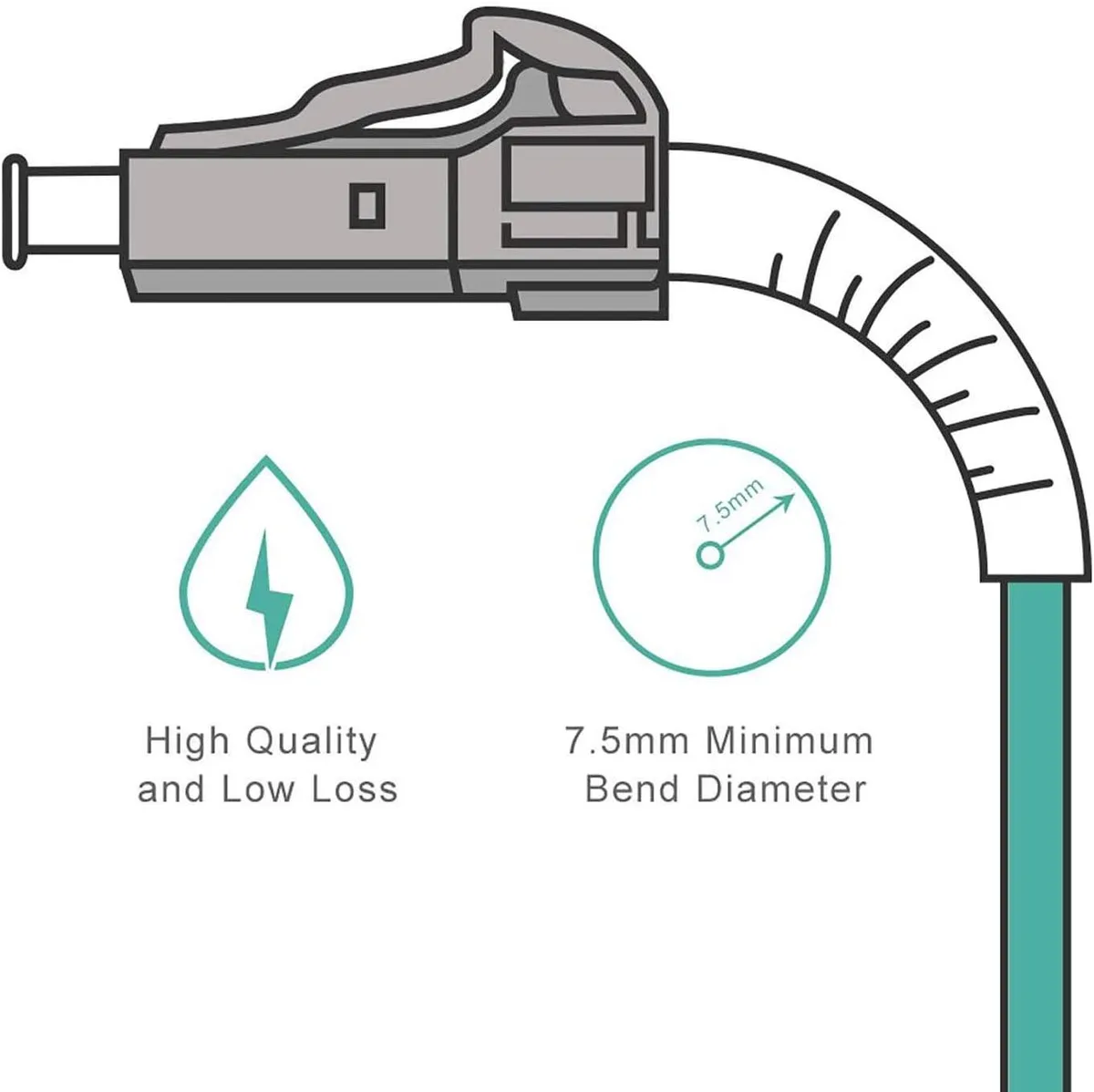

Verify that your transceivers and panels use LC duplex interfaces operating at 850 nm or 1300 nm multimode wavelengths. Confirm the link budget allows for the tested 0.3 dB insertion loss and 35 dB return loss per connector. Ensure the 2.0 mm outer diameter and 7.5 mm minimum bend radius fit your cable-management trays and patch-panel density. Check that LSZH jacket material meets your building fire-code requirements.

Sustained-Load Behaviour

Factory insertion-loss testing at 0.3 dB and return-loss testing at 35 dB indicate stable attenuation during continuous 10 Gbps or Fibre Channel 1200-MX traffic. The bend-insensitive multimode construction maintains specified loss even when routed through tight 7.5 mm radius bends in crowded racks. Aramid yarn reinforcement and strain-relief boots protect the 50 µm core from micro-bending induced by vibration or thermal cycling over long runs. LSZH materials retain mechanical and optical performance at elevated temperatures without halogen emission.
