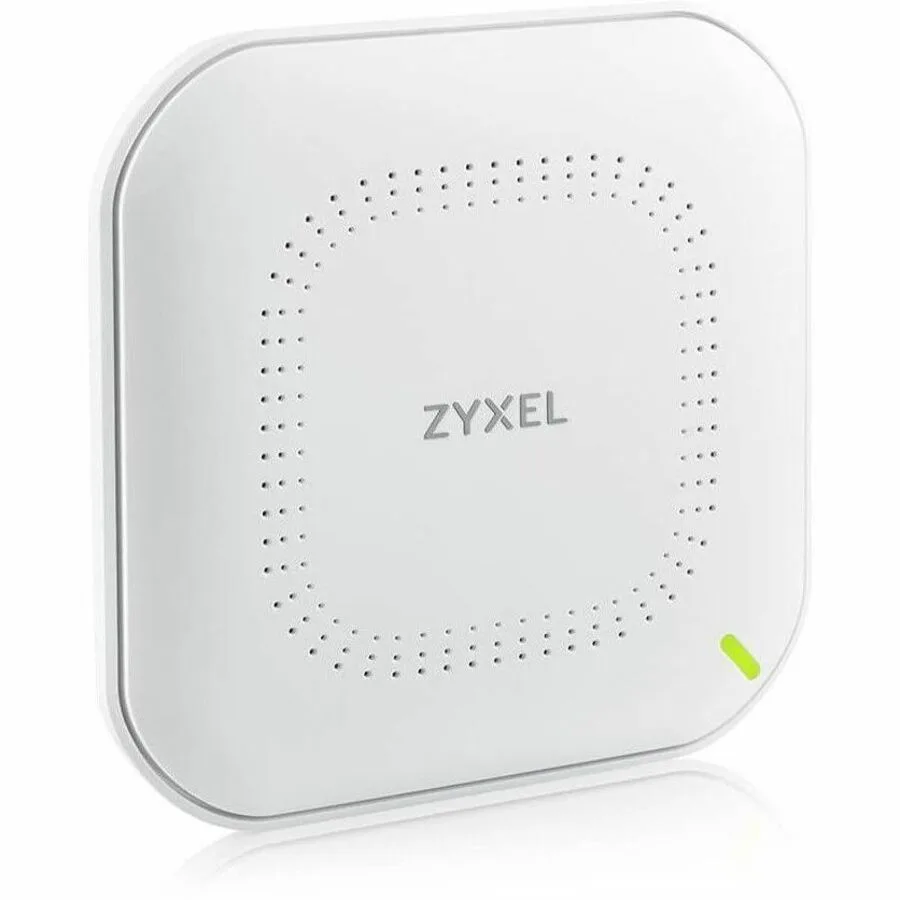

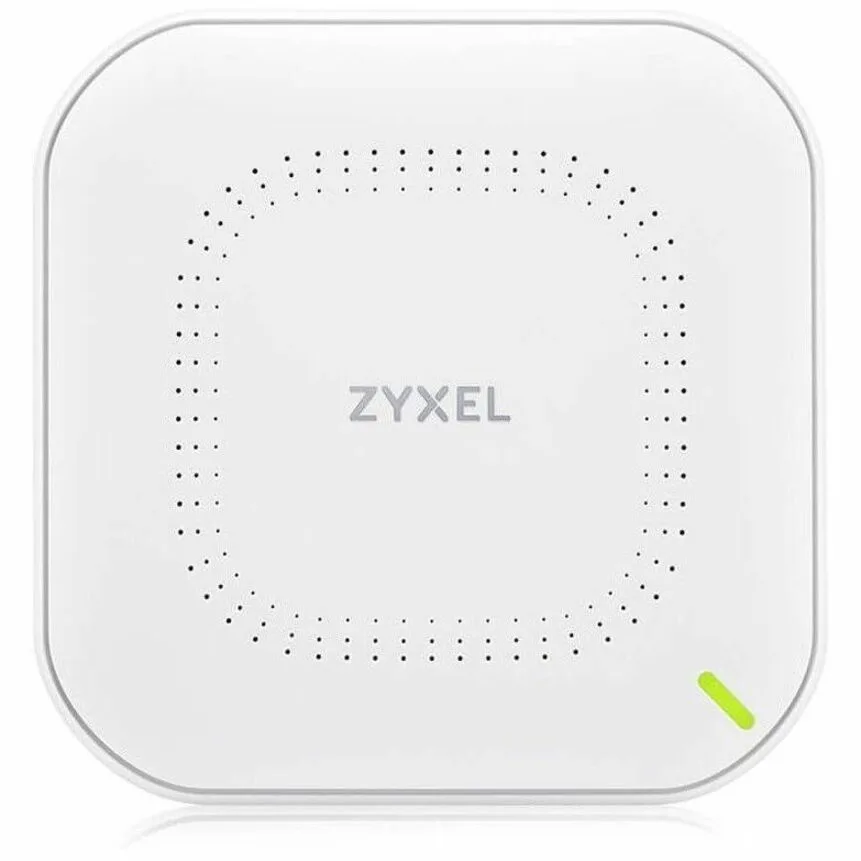

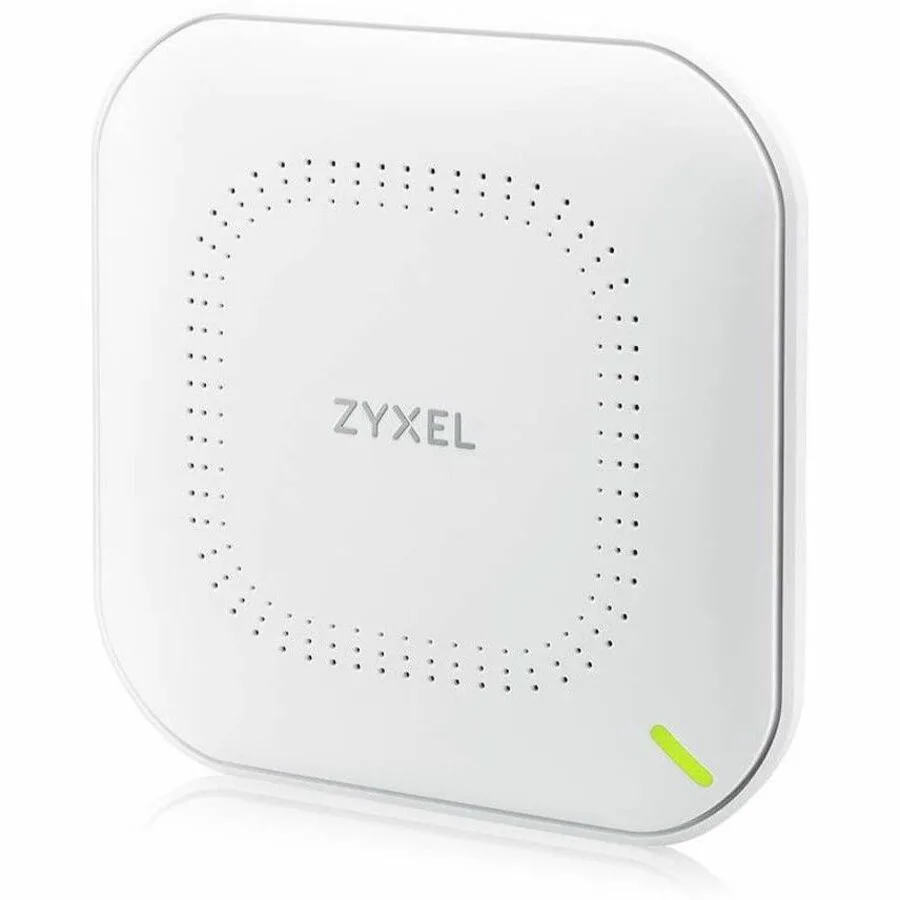

White square indoor access point with internal antennas, single RJ-45 port and PoE+ support

ZyXEL

ZyXEL NWA90AXPRO AX3000 WiFi 6 access point

SKU CH-AGNM-2Q9K8 MPN NWA90AXPRO

A dual-band WiFi 6 access point with a 2.5 Gigabit Ethernet uplink, internal antennas and PoE+ power for indoor small-business deployments

  • AntennaAntenna Form Factor: Internal
  • InterfaceEthernet Technology: 2.5 Gigabit Ethernet Number of Network
  • CertificationsCertifications & Standards: FCC Part 15C FCC Part 15E ETSI E
  • FeaturesWireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax Network Ban
  • Package Contents802.11ax (WiFi 6) Dual-Radio PoE Access Point Power Adapter
  • AX3000 dual-band WiFi 6 speed for small-business workloads
  • 5 GbE uplink removes wired bottlenecks for high-throughput clients
  • Three internal high-gain antennas extend indoor coverage to hard-to-reach areas
  • 160 MHz channel support doubles throughput versus 80 MHz operation
  • PoE+ powered device port simplifies installation without separate power wiring

Small-business WiFi 6 access point

The ZyXEL NWA90AXPRO is a dual-band WiFi 6 access point built for small offices, home offices and SOHO environments. It delivers AX3000 wireless speeds over 2.40 GHz and 5 GHz bands using three internal antennas. The unit includes a 2.5 Gigabit Ethernet uplink and supports PoE+ for flexible deployment without a separate power outlet. A mounting plate and screws are supplied for ceiling or wall installation.

Practical limits of 2.5G Ethernet

The single 2.5G Ethernet port caps wired backhaul at 2.5 Gbps, so aggregated wireless throughput cannot exceed that uplink. The 5 GHz radio can use 160 MHz channels, doubling throughput versus 80 MHz operation, but only where spectrum and client support allow. Regulatory certifications including FCC Part 15C, ETSI EN 300 328 and EN 301 893 govern transmit power and channel availability in each region.

Indoor build with PoE+ and captive portal

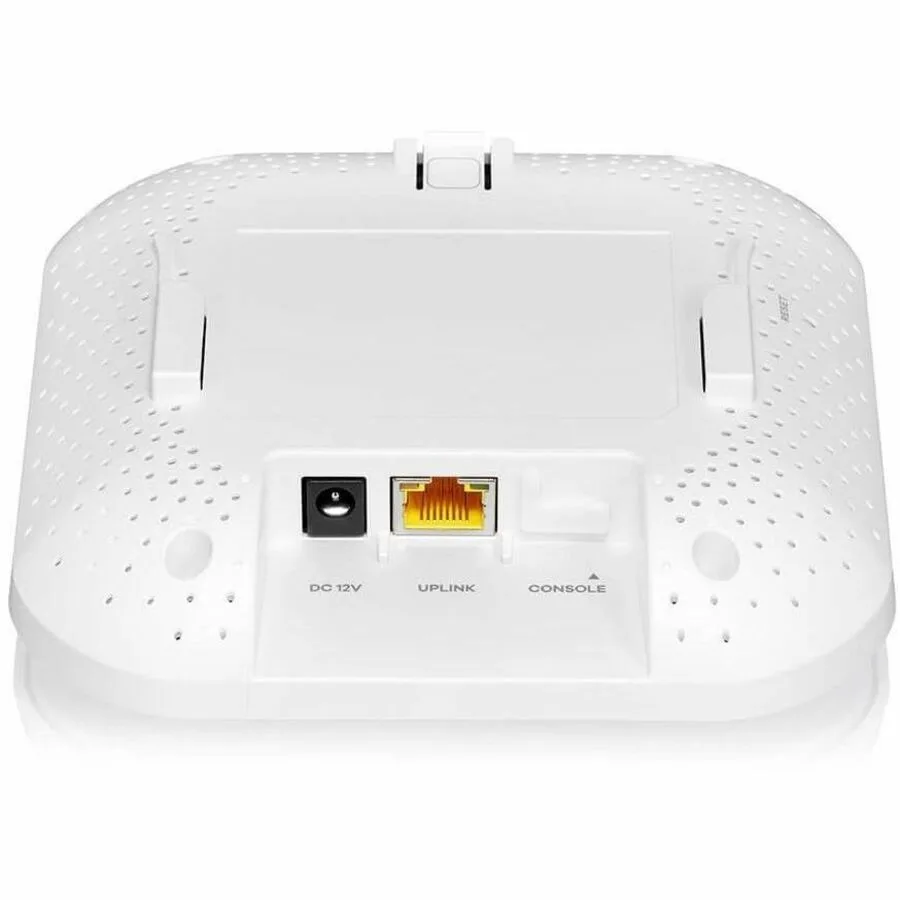

The indoor-only chassis relies on passive cooling and ships with an AC adapter alongside PoE+ powered-device support. A single RJ-45 port handles both data and power, reducing cable runs. Built-in captive portal and WPA3 authentication let guest and corporate traffic share the same hardware while remaining isolated. Cloud, app or direct local management options give administrators multiple configuration paths without extra licensing.

Highlights

  • AX3000 dual-band WiFi 6 speed for small-business workloads
  • 5 GbE uplink removes wired bottlenecks for high-throughput clients
  • Three internal high-gain antennas extend indoor coverage to hard-to-reach areas
  • 160 MHz channel support doubles throughput versus 80 MHz operation
  • PoE+ powered device port simplifies installation without separate power wiring

Specifications

BrandZyXEL
Part NumberNWA90AXPRO
AntennaAntenna Form Factor:
Internal
InterfaceEthernet Technology:
2.5 Gigabit Ethernet
Number of Network (RJ-45) Ports:
1
PoE (RJ-45) Port:
Yes
PoE PD Port:
Yes
CertificationsCertifications & Standards:
FCC Part 15C
FCC Part 15E
ETSI EN 300 328
EN 301 893
LP0002
EN 60601-1-2
FCC Part 15B
EN 301 489-1
EN 301 489-17
EN55022
EN55024
EN61000-3-2/-3
BSMI CNS13438
EN 60950-1
IEC 60950-1
BSMI CNS14336-1
FeaturesWireless LAN Standard:
IEEE 802.11 a/b/g/n/ac/ax
Network Band:
Dual Band
Frequency Band:
2.40 GHz
5 GHz
Total Number of Antennas:
3
Number of Internal Antennas:
3
Indoor/Outdoor:
Indoor
Wireless Transmission Speed:
2.93 Gbit/s
MIMO Technology:
Yes
MIMO Type:
Multi User MIMO
Data Encryption:
Yes
Encryption Standard:
WEP
WPA
WPA2-PSK
WPA3
WPA2-ENT
Wi-Fi Generation:
Wi-Fi 6
Communication Protocols:
RADIUS
Wireless Performance:
AX3000
Package Contents802.11ax (WiFi 6) Dual-Radio PoE Access Point
Power Adapter
Mount Plate
Mounting Screws
Shipping weight0.35 kg
Package size140 × 140 × 38 mm

Questions about this item

Should I pick the 2.40 GHz or 5 GHz band for my devices?

The access point runs both bands simultaneously; 2.40 GHz reaches farther through walls while 5 GHz delivers higher throughput at shorter range.

What does the AX3000 label mean for my actual network speed?

AX3000 is the combined theoretical maximum across both radios — real-world throughput will be lower and depends on client capabilities, channel width and interference.

How does the 2.5 Gigabit Ethernet port affect my wired backbone?

The single 2.5 GbE uplink can carry up to 2.5 Gbps to your switch, so the wired link will not bottleneck the WiFi 6 radios when using 160 MHz channels.
