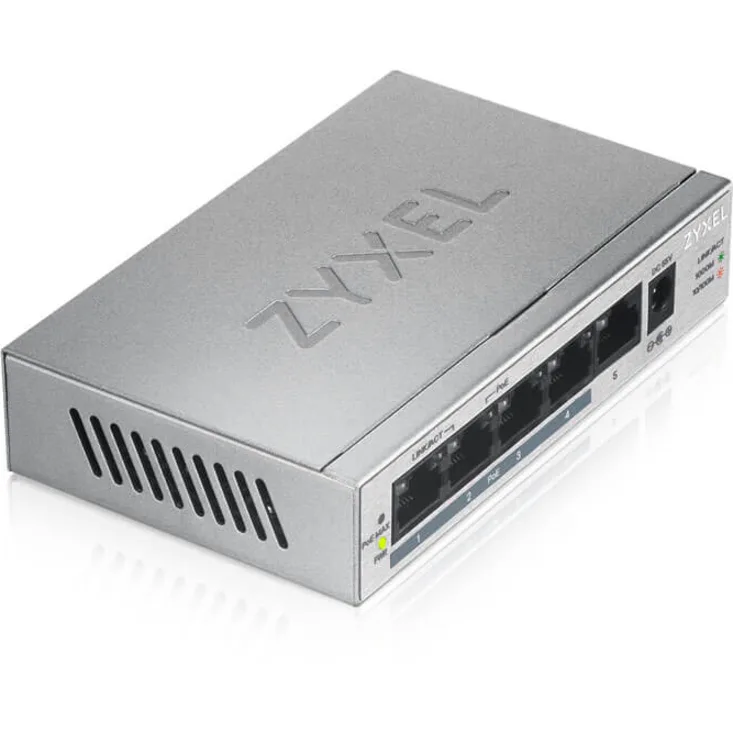

Compact metal desktop switch with five Ethernet ports, matte finish, wall-mount slots visible

ZyXEL

ZyXEL GS1005HP 5-port Gigabit PoE+ switch 60W

SKU CH-NEPS-ZRCJA MPN GS1005HP

Five-port Gigabit switch delivers up to 30 watts per PoE+ port with a 60-watt total budget and fanless, silent operation

  • Switch TypeManageable: Yes
  • FormatDesktop, Wall-Mount
  • Network MediaMedia Type Supported: Twisted Pair Ethernet Technology: Giga
  • Network Management TypeDIP
  • Uplink InterfaceTotal Number of Network Ports: 5 Modular: No Port/Expansion
  • Primary PortsPoE+
  • PoE+ powers cameras and phones up to 30 W per port with 60 W total budget
  • LED indicator warns at 50 W to simplify power-budget management
  • Gigabit ports deliver 1000 Mbps dedicated bandwidth for fast data transfer
  • Fanless metal chassis runs silently and reliably with no moving parts
  • IEEE 802.3az EEE adjusts consumption dynamically to save energy during low traffic

Compact PoE+ switch for small networks

The ZyXEL GS1005HP provides five Gigabit Ethernet ports with PoE+ on every port, delivering up to 30 watts per port within a 60 watt total budget. It is built for desktop or wall-mount installation and operates without a fan for silent running in offices or home workspaces.

Suits installers powering a few access points

This switch fits deployments that need up to four powered devices such as wireless access points, IP cameras or VoIP phones without a separate power injector. It is not for networks that require more than five ports, a larger PoE budget, or managed features such as VLANs and port monitoring.

60 watt total PoE budget decides capacity

The 60 watt ceiling means you can run four ports at the full 30 watts each, but adding a fifth powered device will exceed the budget. Check the combined draw of your PoE endpoints against this limit before buying.

Highlights

  • PoE+ powers cameras and phones up to 30 W per port with 60 W total budget
  • LED indicator warns at 50 W to simplify power-budget management
  • Gigabit ports deliver 1000 Mbps dedicated bandwidth for fast data transfer
  • Fanless metal chassis runs silently and reliably with no moving parts
  • IEEE 802.3az EEE adjusts consumption dynamically to save energy during low traffic

Specifications

BrandZyXEL
ModelGS1005HP
Part NumberGS1005HP
Switch TypeManageable:
Yes
FormatDesktop, Wall-Mount
Network MediaMedia Type Supported:
Twisted Pair
Ethernet Technology:
Gigabit Ethernet
Network Technology:
1000Base-T
Network Management TypeDIP
Uplink InterfaceTotal Number of Network Ports:
5
Modular:
No
Port/Expansion Slot Details:
5 x Gigabit Ethernet Network
Primary PortsPoE+
Primary Port Speed1000 megabits_per_second
Primary Port TypePoE+
Switching MethodDIP
PoE5-Port / PoE+ / Metal
LayerLayer Supported:
2
PoE Ports5-Port / PoE+ / Metal
PowerPower Source:
Power Adapter
Max Power Consumption60 watts
Dimensions3 L x 4.8 W x 1 H inches
Weight1.85 pounds
CertificationEnvironmental Compliance:
Restriction of Hazardous Substances (RoHS)
Temperature,
Package Contents5-Port GbE Unmanaged PoE Switch
Power Adapter
Power Cord
Quick Start Guide
Safety Warning and DoC
Rubber Foot Pads
Shipping weight0.23 kg
Package size122 × 76 × 25 mm

Questions about this item

What wall-mount spacing does the 3-by-4.8-inch desktop chassis need?

The metal case measures 3 L x 4.8 W x 1 H inches and includes wall-mount slots, so allow at least that footprint plus cable clearance on a flat surface.

How do I set the DIP switch for PoE priority without disabling ports?

Power off the unit, slide the DIP switch to the desired mode, then power on; changing it while live can reset the 60 W budget and drop connected devices.

When should I replace the external power adapter that supplies the 60 W budget?

Replace the adapter if the orange LED stays lit above the 50 W threshold, output voltage drifts, or the fanless switch becomes unusually warm during normal 1000 Mbps operation.
