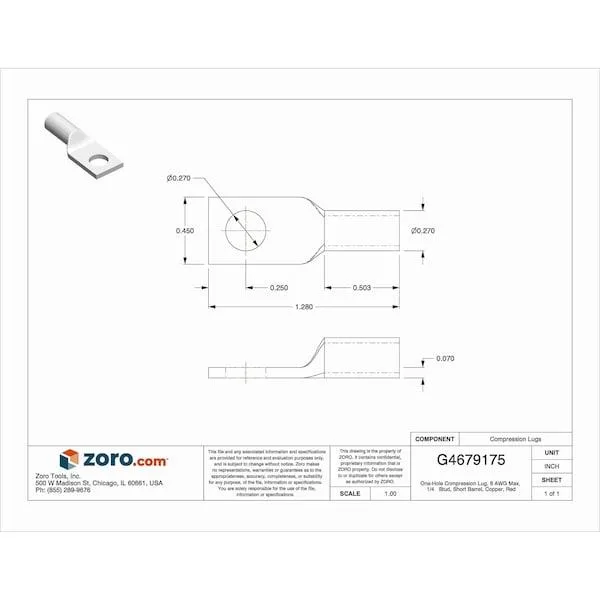

Copper compression lug, red barrel, one 1/4 inch hole, short barrel, inspection window

Zoro Select

Zoro Select 24C340 One-Hole Compression Lug 8 AWG 1/4 in Stud Short

SKU CH-617Y-JRE6G

One-hole compression lug for 8 AWG copper wire with 1/4 in stud, seamless copper barrel, UL listed, 600 V AC rated

  • TypeElectrical Connectors
  • Suitable for 8 AWG copper conductors
  • Die code 21 ensures proper crimp tool selection
  • Seamless barrel resists splitting under pressure
  • Inspection hole allows visual wire verification
  • UL listed and RoHS compliant for safety

One-Hole Compression Lug 8 AWG

The Zoro Select 24C340 is a copper compression lug built for 8 AWG stranded copper wire. It accepts a 1/4 inch stud and has a short barrel with a straight tongue. The connector is UL listed and RoHS compliant.

Installers needing a single-hole crimp for 8 AWG

This lug suits installers who need a single-hole crimp connection for 8 AWG copper conductors at up to 600 V AC. It does not suit applications that require a two-hole lug, a different stud size, or a wire gauge other than 8 AWG.

Rated 600 V AC and 300 °F with seamless barrel

The lug handles 600 V AC and a maximum operating temperature of 300 °F. Its seamless barrel and inspection hole support reliable crimps on 8 AWG copper. It offers no headroom for larger conductors or higher voltage ratings.

Highlights

  • Suitable for 8 AWG copper conductors
  • Die code 21 ensures proper crimp tool selection
  • Seamless barrel resists splitting under pressure
  • Inspection hole allows visual wire verification
  • UL listed and RoHS compliant for safety

Specifications

BrandZORO SELECT
TypeElectrical Connectors

Questions about this item

What size copper conductor does the 24C340 lug accept?

It is made for 8 AWG stranded copper wire, both minimum and maximum, so the conductor must be exactly that size.

Can I use this lug with a stud smaller than 1/4 inch?

No, the tongue is drilled for a 1/4 in stud only; a smaller bolt will not fit the hole.

How do I confirm the crimp is correct after installation?

The barrel has an inspection hole that lets you verify the conductor is fully seated before you energise the circuit.
