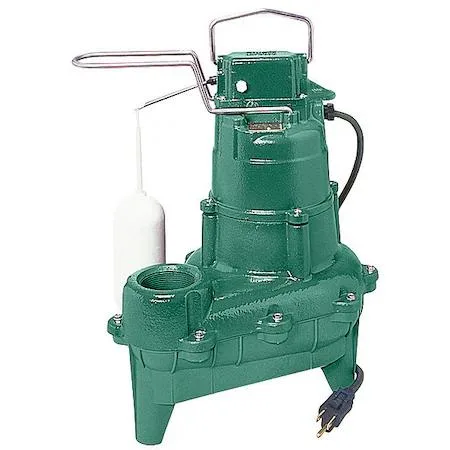

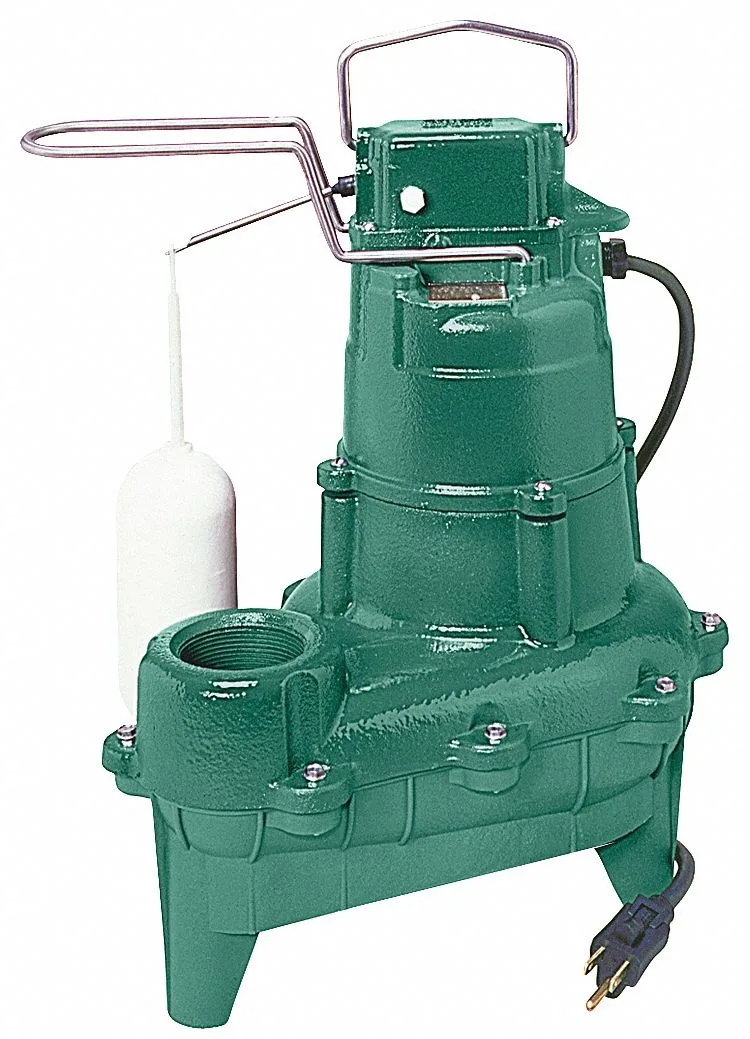

Zoeller M264 cast iron submersible sewage pump with vertical float switch

Zoeller

Zoeller M264 4/10 HP 115V Auto Submersible Sewage Pump

SKU CH-1E5D-GYT3B MPN M264

A 4/10 HP automatic submersible sewage pump delivering 60 GPM at 10 ft head and 23 GPM at 15 ft head with a 2-inch solids capacity

  • TypeDrain Components
  • MaterialHAWA
  • Automatically activates at 12 1/2 in liquid level with vertical float switch
  • Handles solids up to 2 in diameter for reliable sewage ejection
  • Delivers 60 gpm flow at 10 ft head for efficient waste removal
  • Hermetically sealed oil-filled motor protects internal components from contamination
  • Constructed with cast iron body for long-lasting durability in harsh environments

Waste-Mate 4/10 HP Sewage Pump

The Zoeller M264 is a submersible sewage pump designed for residential and light commercial waste removal. It handles solids up to two inches in diameter and operates automatically via an integral vertical float switch. This unit is built for continuous duty in sewage ejector or dewatering applications requiring reliable solids handling.

115V Hermetically-Sealed Motor

The pump uses a 4/10 horsepower, single-phase motor rated at 115 volts AC and 9.40 amps. The motor is hermetically sealed and oil-filled with a permanent split capacitor design for consistent starting torque. This electrical configuration decides whether the pump matches the available power supply and circuit protection on site.

Vertical Float Switch Installation

The integral vertical float switch activates at 12 1/2 inches and deactivates at 4 1/2 inches, requiring a minimum sump pit diameter of 18 inches. Installers must ensure the pit depth accommodates the on/off levels and that the discharge piping supports the 2-inch solids passage. A restricted pit diameter or incorrect wiring of the integral switch are the most common installation errors.

Highlights

  • Automatically activates at 12 1/2 in liquid level with vertical float switch
  • Handles solids up to 2 in diameter for reliable sewage ejection
  • Delivers 60 gpm flow at 10 ft head for efficient waste removal
  • Hermetically sealed oil-filled motor protects internal components from contamination
  • Constructed with cast iron body for long-lasting durability in harsh environments

Specifications

TypeDrain Components
MaterialHAWA
BrandZoeller
ModelM264

Questions about this item

What does the 4/10 HP motor deliver in actual flow rates?

The pump moves 60 gallons per minute at 10 feet of head and 23 gallons per minute at 15 feet of head.

How does the 2-inch discharge limit what the pump can handle?

The 2-inch discharge passes solids up to 2 inches in diameter.

What size sump pit is required for the vertical float switch to operate?

A minimum 18-inch diameter sump pit is required for the vertical float switch to operate properly.
