Grey cast iron submersible sewage pump cylindrical body with discharge outlet

Zoeller

Zoeller G295 2 HP 460V Submersible Sewage Pump

SKU CH-B5S8-YCEEM MPN G295

Submersible sewage pump delivering up to 199.0 gpm at 10 ft head with hermetically sealed motor

  • TypeDrain Components
  • 2 HP motor delivers 199 gpm at 10 ft head
  • 460 V three-phase power draws only 6.10 amps
  • Hermetically sealed oil-filled motor protects internal components
  • Cast iron body and impeller withstand abrasive sewage flow
  • Carbon ceramic shaft seal maintains leak-free operation

2 HP 460 V submersible sewage pump

The Zoeller G295 is a 2 HP submersible sewage pump rated for 460 V three-phase power. Its hermetically sealed, oil-filled motor and cast-iron construction suit commercial or municipal lift stations that demand continuous duty. Manual operation means no float switch is included, so an external control panel is required. This unit is not for residential basins that need automatic on-off cycling.

Flow rates at 10 to 60 ft head

At 10 ft of head the pump delivers 199.0 gpm, falling to 186.0 gpm at 15 ft, 173.0 gpm at 20 ft, 124.0 gpm at 40 ft and 66.0 gpm at 60 ft. The curve shows strong mid-range capacity but output drops sharply beyond 40 ft. Installations requiring sustained flow above 60 ft head or volumes exceeding 199 gpm will need a larger model.

Cast-iron body with carbon-ceramic seal

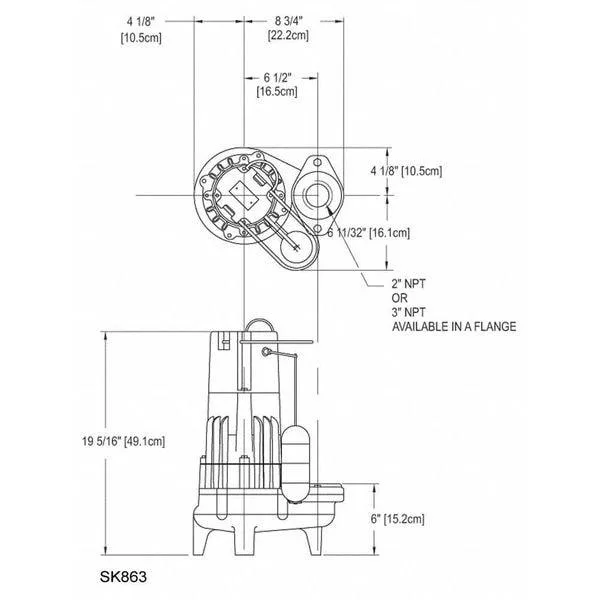

The pump body and impeller are both cast iron, while the shaft seal uses carbon and ceramic faces for abrasion resistance. A 2 in discharge handles solids typical of raw sewage. No power cord or switch hardware is supplied, so the installer must provide suitable three-phase wiring and overload protection. The oil-filled motor requires vertical mounting for proper lubrication.

Highlights

  • 2 HP motor delivers 199 gpm at 10 ft head
  • 460 V three-phase power draws only 6.10 amps
  • Hermetically sealed oil-filled motor protects internal components
  • Cast iron body and impeller withstand abrasive sewage flow
  • Carbon ceramic shaft seal maintains leak-free operation

Specifications

TypeDrain Components
BrandZoeller
ModelG295

Questions about this item

Will the G295 2 HP 460V pump connect to my existing 2 inch discharge piping?

The pump has a 2 inch discharge outlet that matches standard 2 inch piping used in many sewage systems.

How can I confirm the G295 is performing correctly after installation?

Measure the flow against the published curves: 199 gpm at 10 ft head, 186 gpm at 15 ft, 173 gpm at 20 ft, 124 gpm at 40 ft, and 66 gpm at 60 ft.

Does the G295 come with a float switch or control panel, or must I buy them separately?

No switch is included; the pump is manual only, so a separate float switch and any required control panel must be purchased.
