White rectangular wall-mounted access terminal with colour touchscreen and RFID area, 104.8 by 160 by 36 mm

ZKTECO

ZKTECO SC700 RFID Card Reader Writer Access Control Machine

SKU CH-1M51-EFCY9

Thin colour-screen RFID reader-writer holds 30,000 users and 100,000 logs with TCP/IP and USB data transfer

Model: Select SC700+ID

  • Manages up to 30,000 users with large card and record capacity
  • Colour touchscreen simplifies operation compared to monochrome alternatives
  • Multiple authentication methods strengthen door security
  • TCP/IP and U-disk connectivity enable flexible network integration
  • Slim 36 mm profile fits tight installation spaces

SC700 Access Control Terminal

The ZKTeco SC700 is a compact RFID card reader and writer designed for office door access control. It supports up to 30000 users and stores 100000 event records. TCP/IP and U-disk connectivity suit small to mid-sized businesses needing networked or offline management.

Thermals Noise Power

The unit operates reliably between 0 and 45 degrees Celsius at 20 to 80 percent humidity. It draws power from a 12V 3A supply with no moving parts, so it runs silently. The slim 104.8 by 160 by 36mm enclosure fits standard door frames without extra ventilation.

Bundled Functions

Wiegand input and output ports let the SC700 link to external readers, locks, alarms and door sensors for complete entry control. Multiple authentication modes and advanced access rules replace separate controllers. U-disk download simplifies cloud attendance syncing without a permanent network link.

Highlights

  • Manages up to 30,000 users with large card and record capacity
  • Colour touchscreen simplifies operation compared to monochrome alternatives
  • Multiple authentication methods strengthen door security
  • TCP/IP and U-disk connectivity enable flexible network integration
  • Slim 36 mm profile fits tight installation spaces

Specifications

No published specifications for this item yet.

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How is the SC700 mounted and wired, and what step do installers often miss?

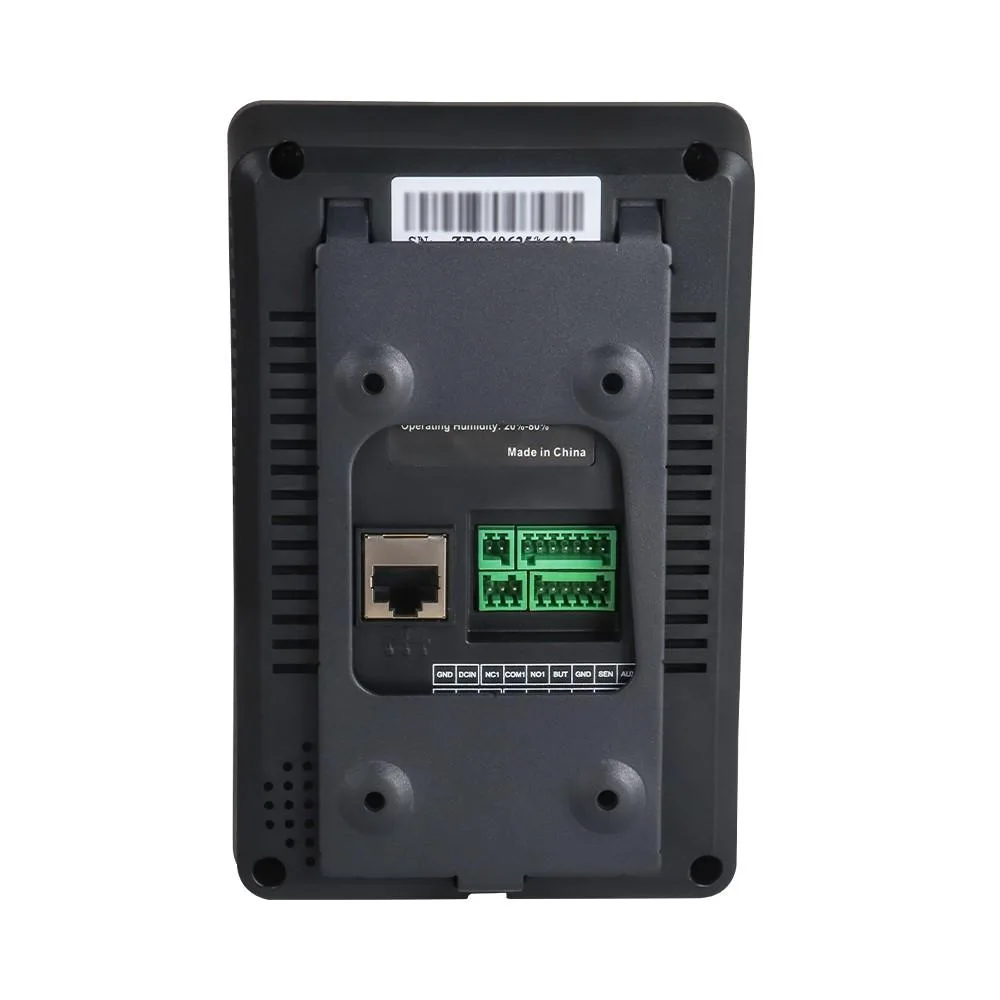

Mount the 104.8 x 160 x 36 mm unit on a wall or door frame, connect the 12 V 3 A supply and the TCP/IP cable, then link the Wiegand IN/OUT wires to the lock and door magnet; the step often missed is terminating the Wiegand pairs with the correct polarity so the tamper alarm and lock release work reliably.

Which consumable or component will need replacement first on the SC700?

The 12 V 3 A power supply is the item most likely to require replacement before the reader itself, especially if the unit runs continuously at the upper end of the 0–45 °C temperature range.

What limit appears first when the SC700 runs at full capacity day after day?

The 100,000-event log fills before the 30,000-user or 30,000-card databases, so log off-loading via U disk or network becomes the recurring bottleneck under sustained heavy use.
