Rectangular white access terminal with colour touchscreen, 104.8 by 160 by 36 mm

ZKTECO

ZKTECO SC700+ADMS USB TCP/IP access control system office equipment

SKU CH-WQ5H-TV5AH

Colour-screen access controller for 30,000 users and 100,000 logs with TCP/IP, USB and Wiegand interfaces

Model: Select SC700+ADMS

  • Supports 30,000 users for large-scale deployment
  • Stores 100,000 records for extensive audit trails
  • Operates from 0 to 45 °C for indoor reliability
  • Colour touchscreen with multiple verification methods for fast entry
  • TCP/IP and USB connectivity for flexible network integration

Purpose and users

The ZKTECO SC700 is a colour-screen access control terminal designed for offices needing secure door entry and attendance tracking. It supports up to 30,000 users and 30,000 cards with capacity for 100,000 event records. Buyers who need biometric verification or larger databases will need a different unit.

Thermals noise and power

The device operates from 0 to 45 °C and 20 to 80 % humidity on a 12 V 3 A supply. With no moving parts it runs silently and draws minimal power in normal use. Installers must provide a suitable 12 V source as none is included.

Build and connectivity

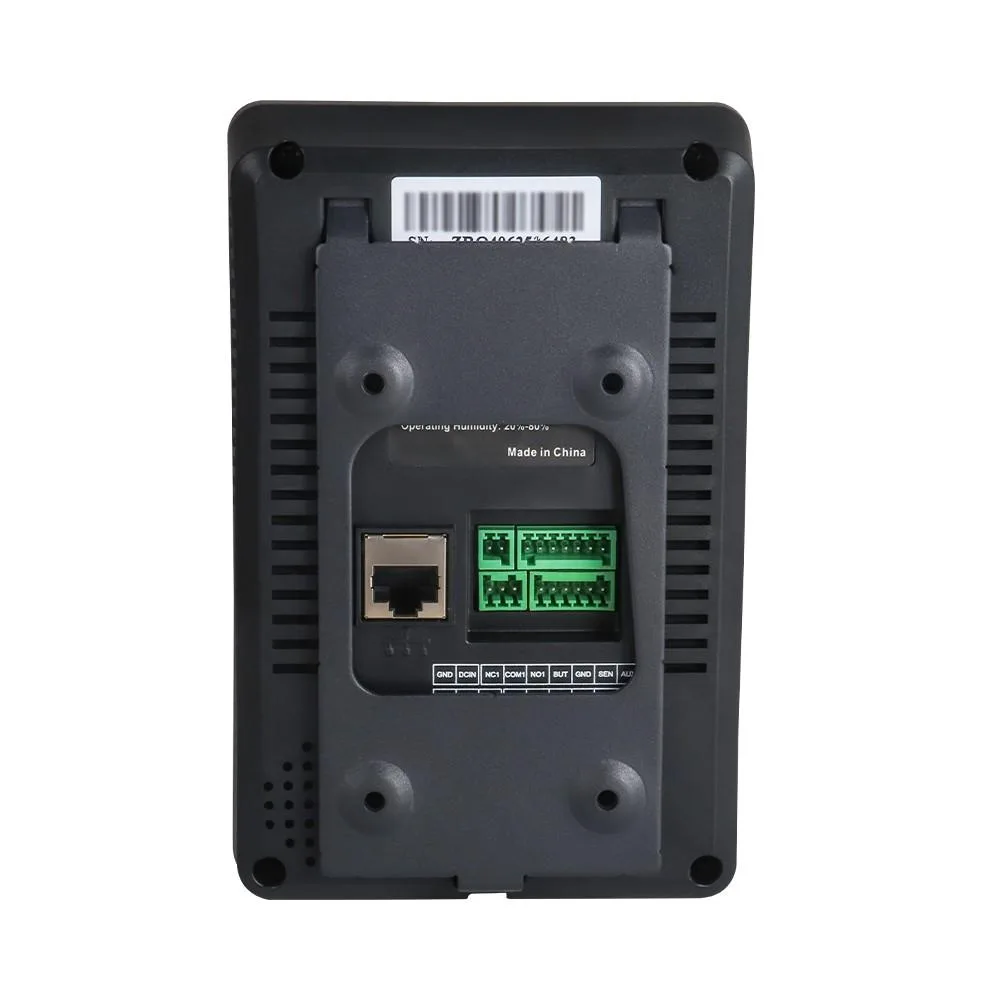

The slim 104.8 by 160 by 36 mm housing fits standard wall mounting and includes Wiegand in/out ports for lock, alarm and door sensor wiring. TCP/IP and USB disk interfaces handle network and offline data transfer. Sites requiring PoE or wireless links must add external adapters.

Highlights

  • Supports 30,000 users for large-scale deployment
  • Stores 100,000 records for extensive audit trails
  • Operates from 0 to 45 °C for indoor reliability
  • Colour touchscreen with multiple verification methods for fast entry
  • TCP/IP and USB connectivity for flexible network integration

Specifications

No published specifications for this item yet.

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I wire the SC700 to the network and power supply, and which step causes the most problems?

Connect the SC700 to the LAN using the TCP/IP port and feed it 12V-3A DC power; the step most often missed is confirming the cable run stays within the 0-45 °C operating range and 20-80 % humidity limits.

What routine upkeep will the SC700 need over time?

Clean the colour touch screen and card reader area regularly, check door-magnet and tamper-switch wiring for corrosion, and export the 100,000-record log via U disk before it fills up.

Which limit appears first during continuous heavy use of the SC700?

The 100,000-event log buffer fills before the 30,000-user or 30,000-card databases, so plan to offload records via U disk on a regular schedule.
