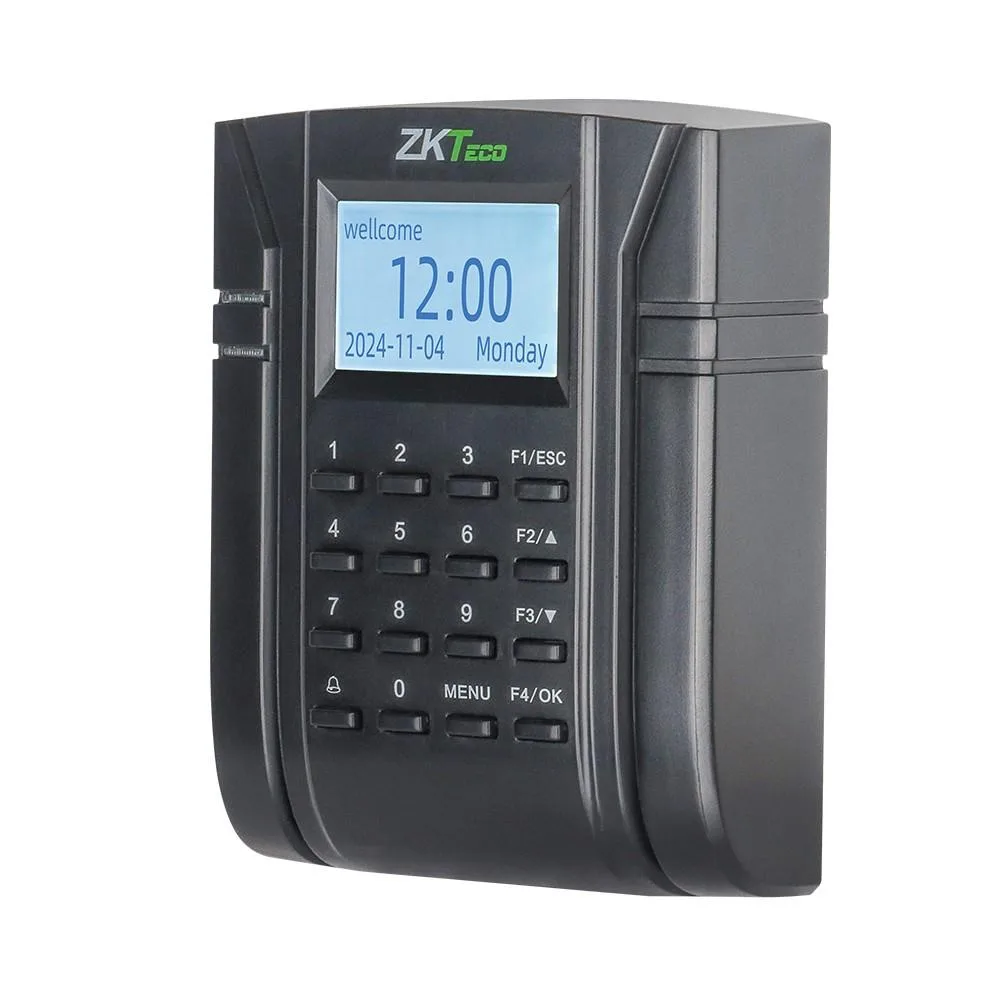

Rectangular wall-mounted access controller with LCD display and card reader area

ZKTECO

ZKTECO SC203+IC RFID ID/IC Card Time Attendance Door Access Controller

SKU CH-WDP3-XKP26

An RFID access controller supporting 30,000 ID cards and 50,000 transaction records with TCP/IP, RS232/485 and USB-Host connectivity

Mode: Select SC203+IC

  • Supports up to 30000 ID cards for large teams
  • Stores 50000 transactions for comprehensive audit trails
  • Connects via TCP/IP, RS232/485 and USB-Host for flexible integration
  • Full door lock control with sensor, exit button and alarm interfaces
  • Operates reliably from 0 °C to 45 °C in 20%-80% humidity

Access control for small sites

The SC203+IC is a door access and time attendance controller designed for houses, small offices and factories. It supports ID cards as standard with optional IC card capability and stores up to 30000 users and 50000 transaction records. Operation is handled through an onboard LCD display or via PC software.

Build and daily connectivity

The unit features an elegant casing built for straightforward installation and reliable daily use. It provides full door lock control with interfaces for a third-party electric lock, door sensor, exit button, alarm and door bell. Wiegand input and output allow master and slave configurations or connection to a control panel, while TCP/IP, RS232/485 and USB-Host cover data transfer and network integration.

Upgrade path and fit

This device replaces standalone keypads or basic readers that lack integrated lock control and multi-door networking. The jump is worthwhile when you need anti-passback, SMS functions or optional Webserver and Proximity features in a single unit powered by 12V DC and rated for 0 to 45 °C operation.

Highlights

  • Supports up to 30000 ID cards for large teams
  • Stores 50000 transactions for comprehensive audit trails
  • Connects via TCP/IP, RS232/485 and USB-Host for flexible integration
  • Full door lock control with sensor, exit button and alarm interfaces
  • Operates reliably from 0 °C to 45 °C in 20%-80% humidity

Specifications

No published specifications for this item yet.

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the Wiegand interface on the SC203+IC cap in practice?

The Wiegand input connects an external reader for master-and-slave operation, while the Wiegand output lets the unit act as a reader for a control panel.

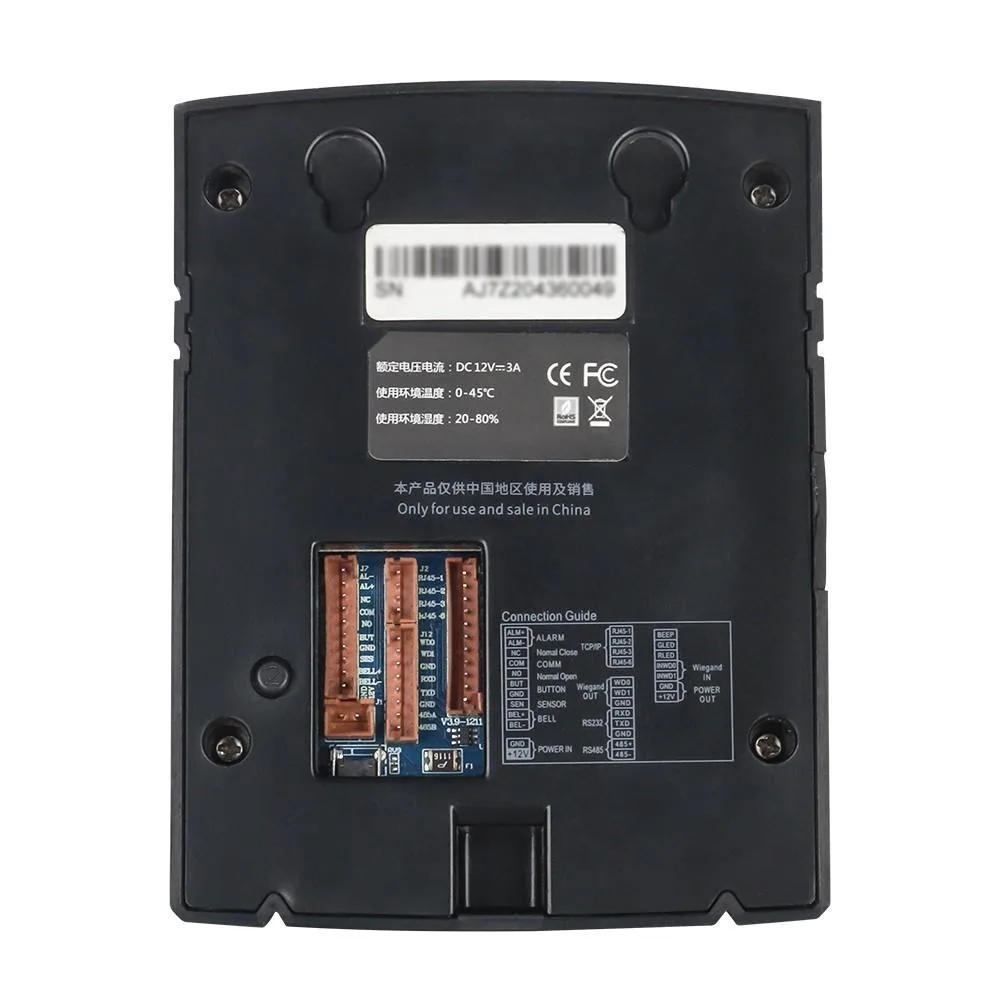

What physical connections does the SC203+IC need for a full door-lock system?

It requires wiring for a third-party electric lock, door sensor, exit button, alarm and door bell through its access-control interface.

How is the SC203+IC installed, and what step is often missed?

Mount the unit, wire power at 12V DC and the access-control terminals, then configure anti-passback and communication via TCP/IP, RS232/485 or USB-Host; forgetting to set the Wiegand direction for master-slave or reader mode is the common error.
