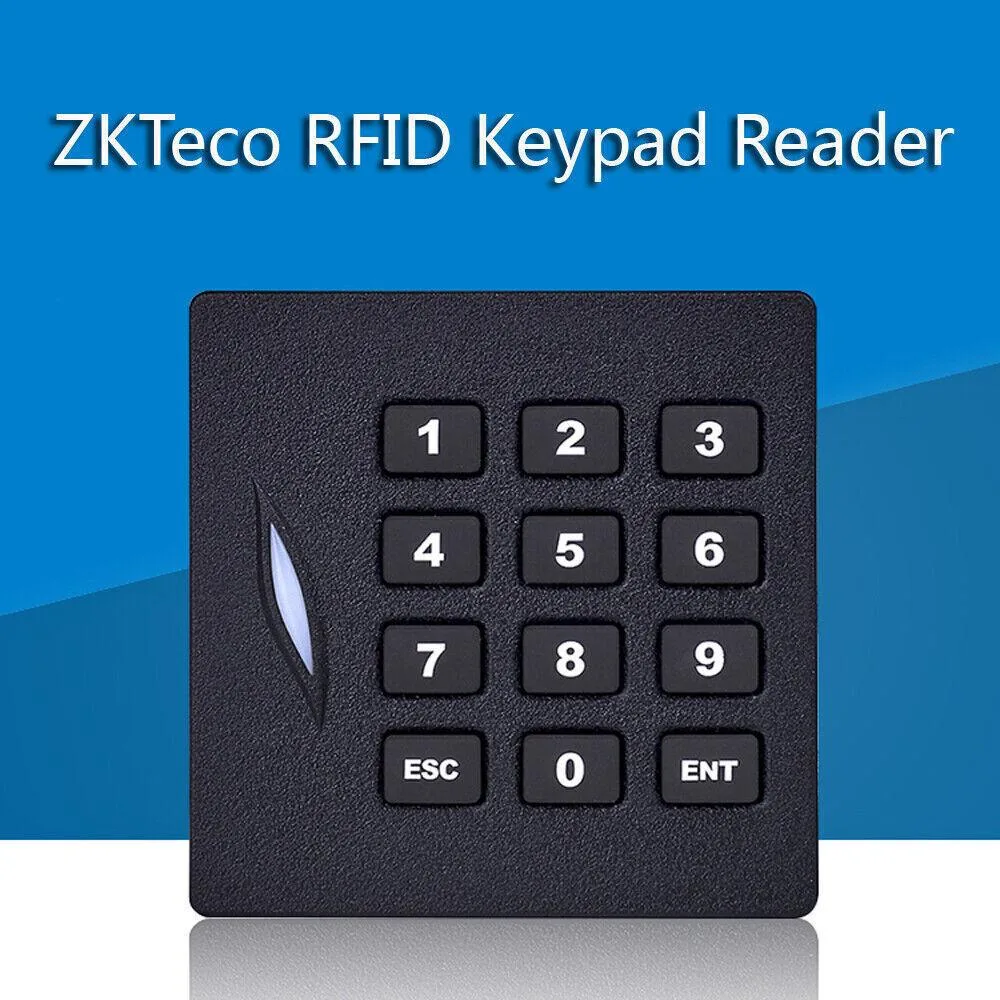

Black rectangular card reader with keypad, 86 by 86 by 20 mm, ABS plastic finish

ZKTECO

ZKTECO KR102M IC 13.56MHz Card Reader Office Equipment

SKU CH-T503-4426A

13.56 MHz IC card reader with Wiegand 26/34 output, 5–10 cm read range and IP-rated ABS housing

  • Read cards up to 15 cm away for convenient access
  • 56 MHz frequency works with IC and ID card types
  • 34-bit Wiegand output integrates with standard controllers
  • Waterproof ABS housing rated for outdoor and indoor use
  • Power protection prevents damage from wiring mistakes

ZKTECO KR102M IC Card Reader

The ZKTECO KR102M is a new IC card reader operating at 13.56MHz for access-control systems. It reads compatible S50 cards and EM4100 ID cards at a range of up to 15cm with a reading time of 200ms. The unit suits offices and facilities that need a compact Wiegand-output reader.

Wiegand 26/34 bit interface limits

The reader outputs either 26-bit or 34-bit Wiegand data, defaulting to 34-bit on the KR102M variant. Transmission is reliable over 100 metres of cable. The interface does not support encrypted or bidirectional protocols, so the host controller must accept standard Wiegand format.

13.56MHz frequency decides compatibility

This model reads only 13.56MHz IC cards such as S50 types and 125KHz EM4100 ID cards. It will not read UHF, NFC peer-to-peer tags or other proprietary high-frequency credentials. Buyers needing multi-technology or mobile-credential support must choose a different reader.

Highlights

  • Read cards up to 15 cm away for convenient access
  • 56 MHz frequency works with IC and ID card types
  • 34-bit Wiegand output integrates with standard controllers
  • Waterproof ABS housing rated for outdoor and indoor use
  • Power protection prevents damage from wiring mistakes

Specifications

No published specifications for this item yet.

Questions about this item

Should I choose the KR102E or KR102M version for my access control system?

The KR102E defaults to 26 bit Wiegand with 34 bit as an option, while the KR102M defaults to 34 bit Wiegand with 26 bit as an option. Select the version whose default bit format matches your controller to avoid reconfiguration.

What does the 13.56MHz frequency mean for daily badge reads?

The reader operates at 13.56MHz and reads compatible IC cards such as S50 types within 0 to 15 centimetres in about 200 milliseconds, giving quick tap-and-go entry at the door.

How far can the Wiegand cable run to the controller without signal loss?

The Wiegand transmission distance is rated at 100 metres, so the reader can be mounted at the entrance while the controller stays in a secure back-room cabinet.
