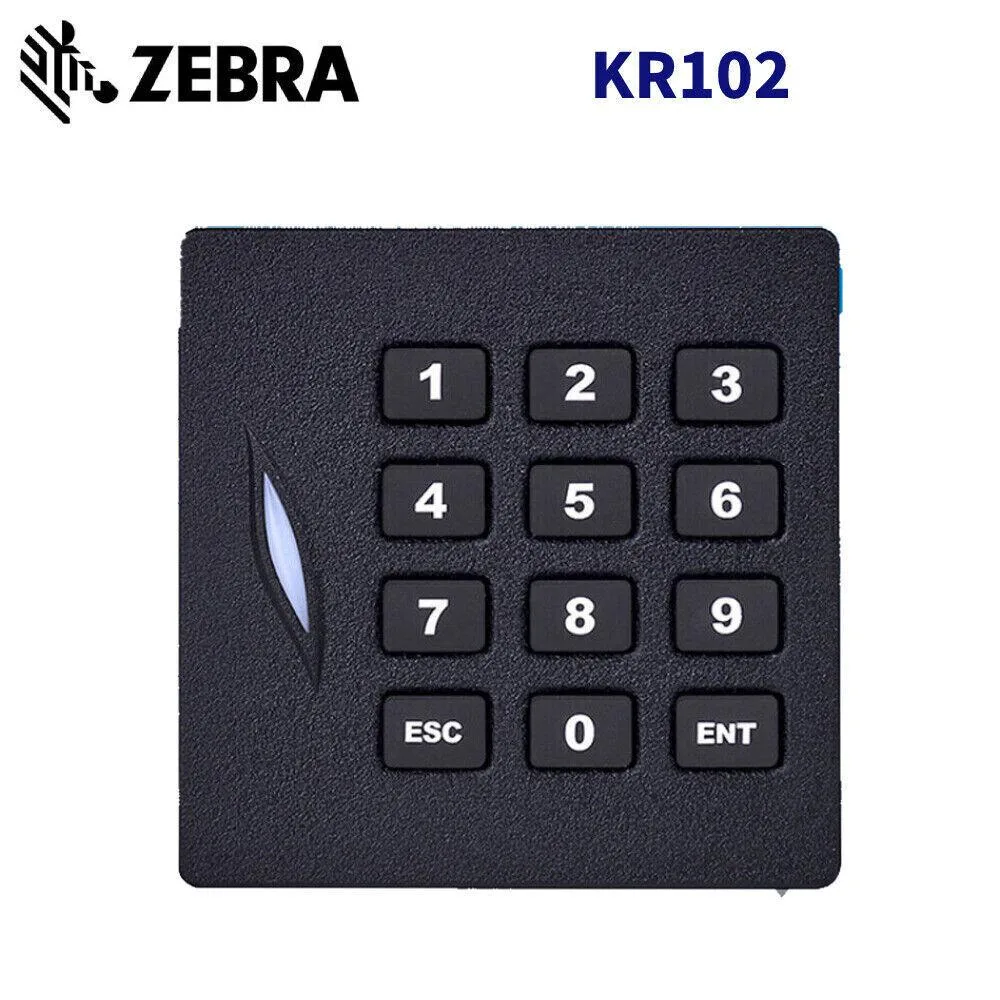

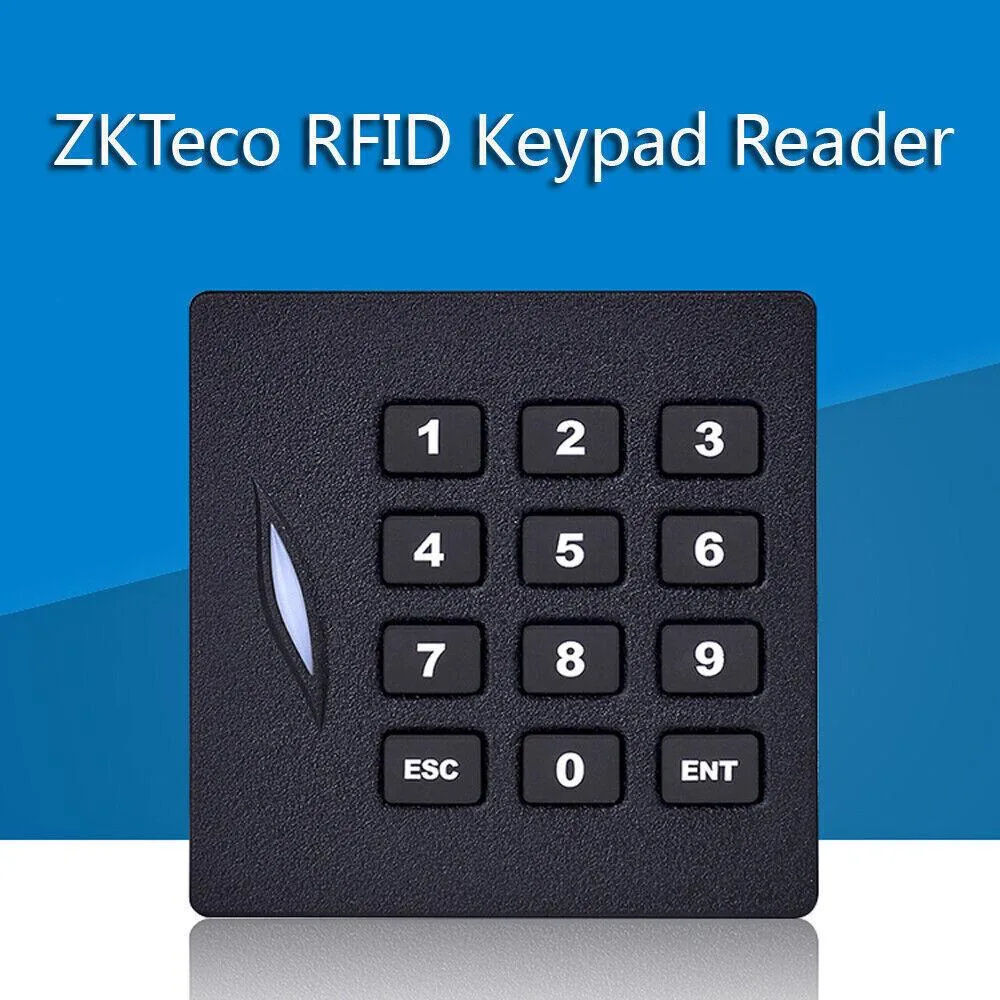

Black rectangular RFID reader 86 by 86 by 20 mm ABS plastic two colour LED buzzer

ZKTECO

ZKTECO KR102E RFID ID/IC Reader 125KHz 13.56MHz Wiegand 26/34-bit

SKU CH-WCPV-09560

Dual-frequency RFID reader supporting 125 kHz and 13.56 MHz cards with Wiegand 26/34-bit output and 100 m transmission range

Models: Select KR102E RFID 125khz

  • Reads both 125KHz ID and 13.56MHz IC cards
  • Wiegand 26-bit and 34-bit output for controller compatibility
  • Up to 15 cm induction distance for convenient access
  • IP-rated glue-filled waterproof design for indoor or outdoor use
  • DC 9–16V supply with reverse-polarity and surge protection

Dual-Frequency RFID Reader

The ZKTECO KR102E reads both 125KHz and 13.56MHz credentials, making it suitable for access-control systems that must support legacy ID cards and modern IC cards simultaneously. It outputs Wiegand 26-bit or 34-bit data over a cable run of up to 100 metres.

Installers needing multi-format card support

This unit suits projects where EM4100-compatible ID cards and S50-compatible IC cards are both present. It is not for systems that require a different output protocol, nor for sites where the mounting footprint exceeds the 86 by 86 millimetre panel.

Wiegand 26/34-bit output

The reader defaults to 26-bit Wiegand and can be configured for 34-bit, which is the single specification that determines compatibility with the access-control panel. The interface operates at up to 100 metres with built-in surge and reverse-polarity protection.

Highlights

  • Reads both 125KHz ID and 13.56MHz IC cards
  • Wiegand 26-bit and 34-bit output for controller compatibility
  • Up to 15 cm induction distance for convenient access
  • IP-rated glue-filled waterproof design for indoor or outdoor use
  • DC 9–16V supply with reverse-polarity and surge protection

Specifications

No published specifications for this item yet.

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How far from the reader will a 125 kHz ID card or 13.56 MHz IC card be detected?

The manufacturer quotes a read range of 5–10 cm for the KR102 and up to 15 cm in the technical parameters.

What Wiegand bit formats does the KR102E output and which is the default?

The KR102E outputs 26-bit Wiegand by default and can be set to 34-bit; the KR102M variant defaults to 34-bit with 26-bit selectable.

What are the exact mounting dimensions and cut-out size for this reader?

The KR102 measures 86 × 86 × 20 mm, designed for a standard 86 mm square back-box.
