White rectangular biometric terminal with 3.5-inch color screen and fingerprint sensor

ZKTECO

ZKTECO iClock660+ADMS Fingerprint Time Attendance Door Access Control TCP/IP office equipment

SKU CH-1DTZ-30TQB

Fingerprint time-attendance terminal with door-access control for up to 10,000 users, 8,000 fingerprints and 100,000 records on a 3.5-inch colour screen

Options: Select iClock660+ADMS

  • 10,000 users supported by 10,000 fingerprint capacity
  • 100,000 event records stored for long-term audit trails
  • 5-inch HD TFT colour screen for clear menu navigation
  • TCP/IP and U-disk connectivity for flexible data transfer
  • Operates reliably from 0 °C to 45 °C

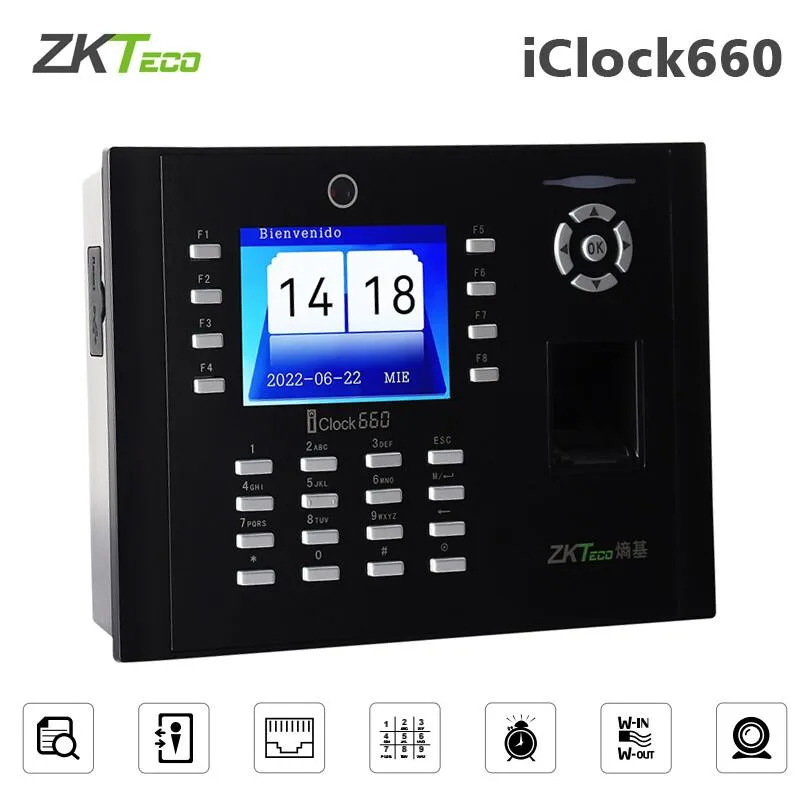

ZKTECO iClock660+ADMS fingerprint terminal

The ZKTECO iClock660+ADMS is a fingerprint time attendance and door access control terminal built for corporate sites. It supports up to 10,000 users and stores 8,000 fingerprint templates with a record capacity of 100,000 events. A 3.5-inch HD TFT colour screen provides a full graphical interface for intuitive operation. The unit runs on a built-in Linux system using the ZKFinger 10.0 high-speed dual-engine algorithm.

Replaces standalone clocks and manual logs

This terminal replaces paper registers, basic punch clocks or older single-door controllers that lack network connectivity. The jump is worth it when you need centralised attendance data across multiple units linked by TCP/IP, RS232 or RS485. U-disk support allows fast offline data collection where a permanent LAN connection is not available. Advanced access control functions secure the working environment beyond simple time keeping.

Suits offices needing multi-door control

The device suits businesses that require multiple verification methods, timer bell scheduling and short-message display on a single unit. It operates reliably between 0 and 45 °C at 20 to 80 % humidity on a DC 12 V 3 A supply. Organisations without fingerprint enrolment workflows or those needing biometric modalities not listed here should evaluate alternative solutions.

Highlights

  • 10,000 users supported by 10,000 fingerprint capacity
  • 100,000 event records stored for long-term audit trails
  • 5-inch HD TFT colour screen for clear menu navigation
  • TCP/IP and U-disk connectivity for flexible data transfer
  • Operates reliably from 0 °C to 45 °C

Specifications

No published specifications for this item yet.

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What are the overall dimensions of the iClock660 terminal so I can check wall space?

The unit measures 214 mm wide, 150 mm high and 44 mm deep, so allow at least that footprint plus cable clearance.

How do I connect the terminal to the corporate network and what step is often missed?

Plug an Ethernet cable into the TCP/IP port and configure a static IP or DHCP lease on the same subnet as the management software; the step most often missed is matching the gateway and DNS settings so the device can reach the server.

What ongoing maintenance does the fingerprint sensor require and when should I plan a replacement?

Clean the optical window with a lint-free cloth and isopropyl alcohol whenever enrolment failures rise; the sensor itself is solid-state with no moving parts, so plan replacement only if physical damage occurs or the 8,000-template limit is reached.
