Green rectangular amplifier board with silver heatsinks, black knobs, and Bluetooth antenna wire

ZK-1002T Bluetooth 5.0 Amplifier Board 2.0CH 100W*2 audio component

SKU CH-4FJR-R6N06

A 2.0-channel stereo amplifier board delivering 100W per channel with Bluetooth 5.0, AUX input, treble and bass controls, and app control, powered from 9-24V DC

  • 100 W per channel drives home speakers with authority
  • Bluetooth 5.0 streams audio wirelessly from phones or tablets
  • Treble and bass knobs shape sound without an external device
  • DC 9-24 V input suits a wide range of power supplies
  • Over-voltage, under-voltage, over-heat and short-circuit protection guards the board

What this board does

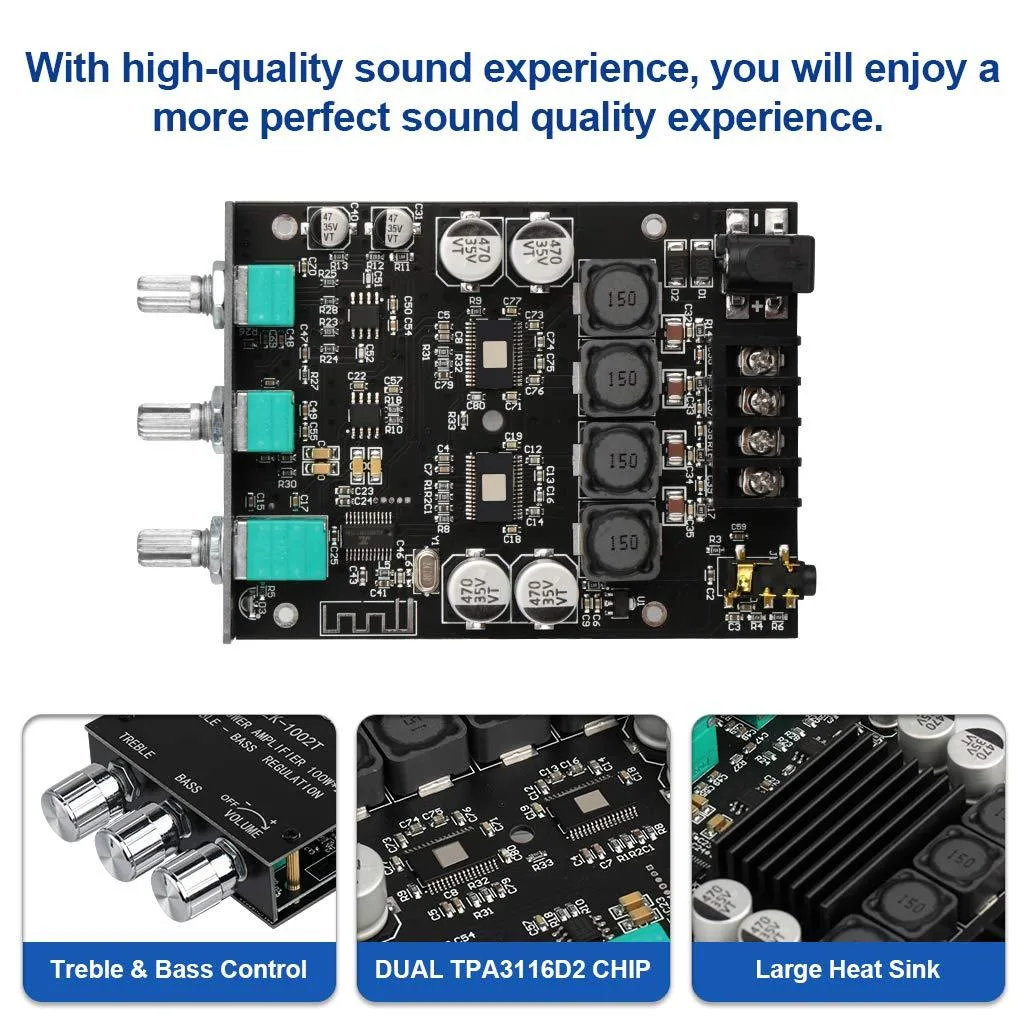

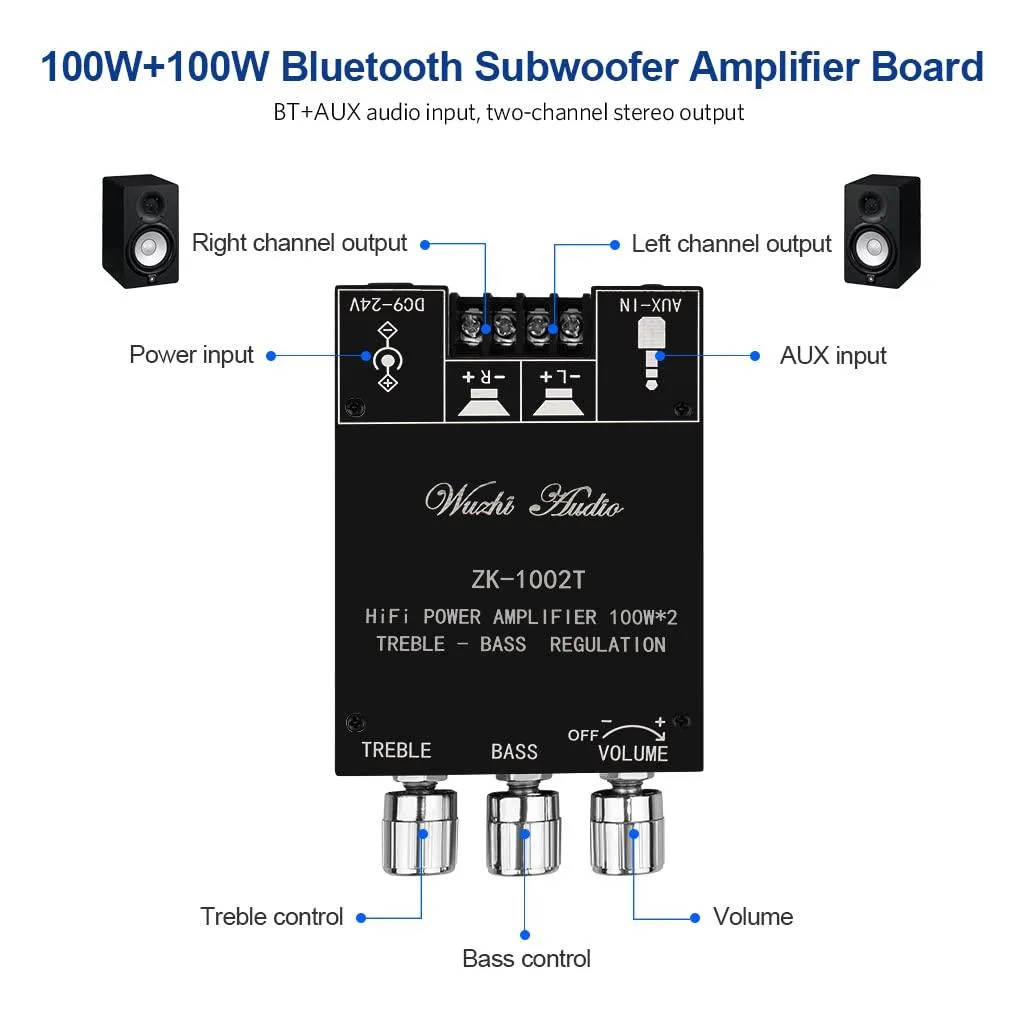

The ZK-1002T is a compact stereo amplifier module that delivers 100W per channel into home speakers. It accepts Bluetooth 5.0 wireless streams or a wired AUX source and runs from a 9 to 24 V DC supply. The board targets DIY builders and anyone adding powered audio to a bookshelf or desktop system.

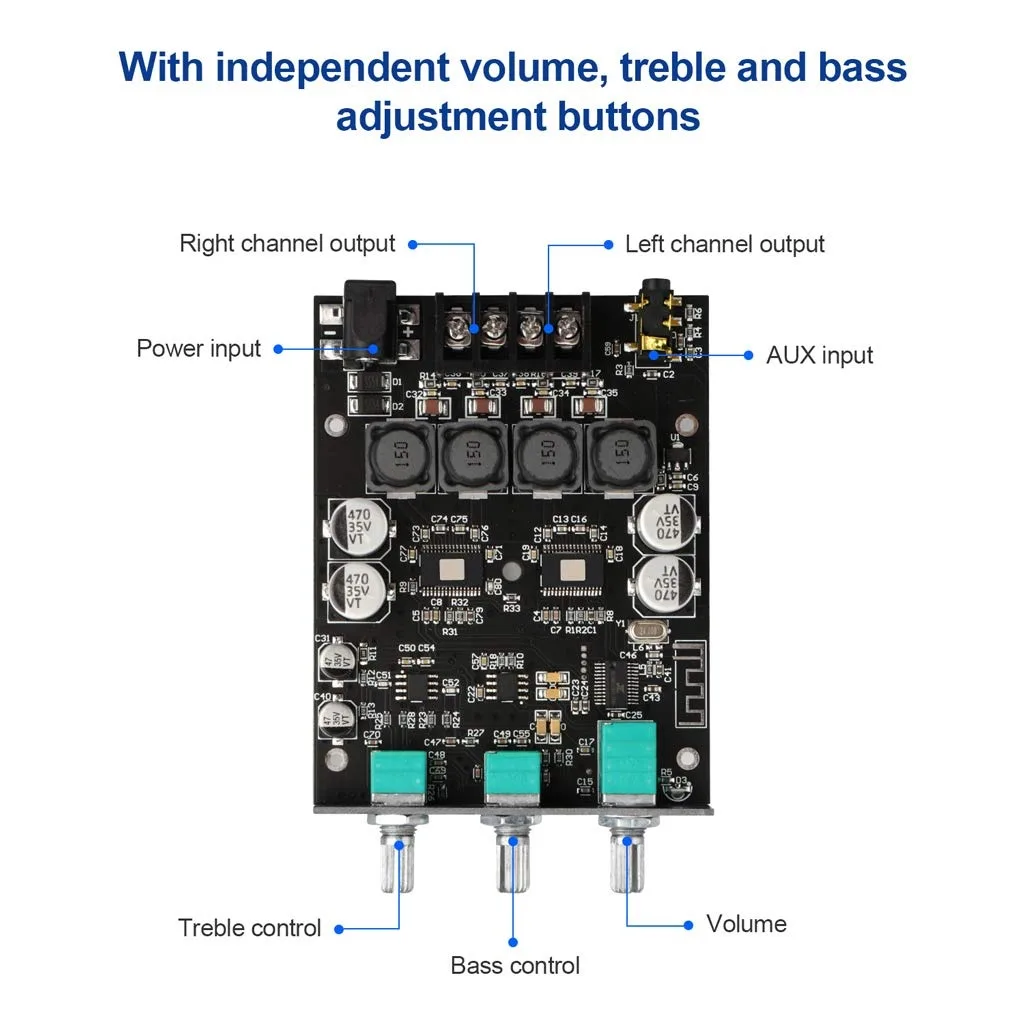

Build and daily connections

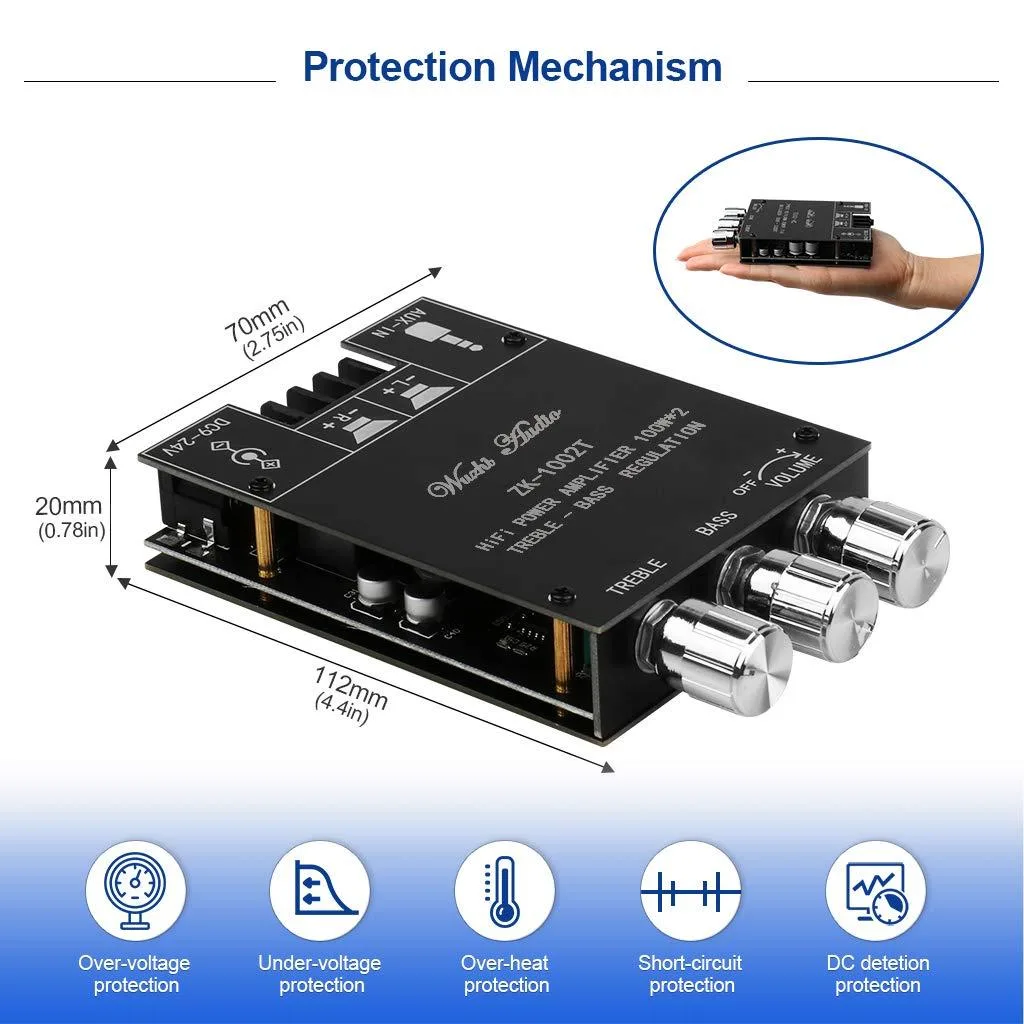

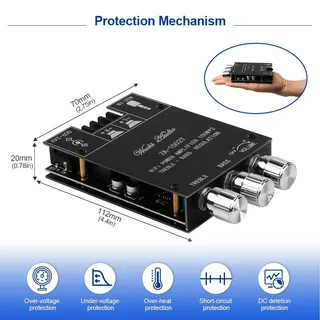

A protective case encloses the PCB, and the design includes over-voltage, under-voltage, over-heat and short-circuit safeguards. Physical knobs on the board adjust treble and bass directly without reaching for a phone. Switching to AUX input requires the Bluetooth link to be disconnected first, a detail that avoids signal conflicts during use.

The spec that decides fit

Output power is rated at 100W per channel in a 2.0 configuration, so the board suits a pair of passive speakers that can handle that level. The DC input range of 9 to 24 V determines which power supply you must provide. If your speakers need more power or your supply sits outside this voltage window, this module will not match the system.

Highlights

  • 100 W per channel drives home speakers with authority
  • Bluetooth 5.0 streams audio wirelessly from phones or tablets
  • Treble and bass knobs shape sound without an external device
  • DC 9-24 V input suits a wide range of power supplies
  • Over-voltage, under-voltage, over-heat and short-circuit protection guards the board

Specifications

No published specifications for this item yet.

Questions about this item

What does Bluetooth 5.0 limit for this amplifier board?

Bluetooth 5.0 provides the wireless link between your source device and the ZK-1002T; range and bitrate follow the 5.0 specification.

What voltage supply must I provide for the ZK-1002T to fit my build?

The board accepts DC 9 V to 24 V, so any regulated supply in that range will power it.

How do I install the ZK-1002T and what step is often missed?

Connect speakers to the output terminals, apply 9–24 V DC, pair via Bluetooth 5.0 or plug AUX, then use the onboard treble and bass knobs or the app; a common miss is leaving a Bluetooth device paired when switching to AUX input.
