Yellow handheld solar tester with backlit LCD screen and probes

ZIBOO FT-2000W Solar Panel Tester MPPT Meter 2000W 150V 35A

SKU CH-PWKB-1AF4E

Tests PV modules up to 2000 W with ±0.8 % accuracy, measuring Voc 12-150 V and Isc 35 A on a backlit LCD with data hold

  • TypeFT-2000W
  • ColorFT-2000W
  • Dimensions5.51 in x 2.99 in x 1.26 in
  • Weight0.508 kilograms
  • Measures up to 2000W peak power with ±0.8% precision
  • Tests Voc 12-150V and Isc 35A for panel validation
  • CAT III 1000V / CAT IV 600V safety with double-insulated probes
  • Backlit LCD plus data hold for clear rooftop readings
  • IP54 rated, auto-ranging and auto-off for field reliability

Solar PV Tester 2000W 150V 35A

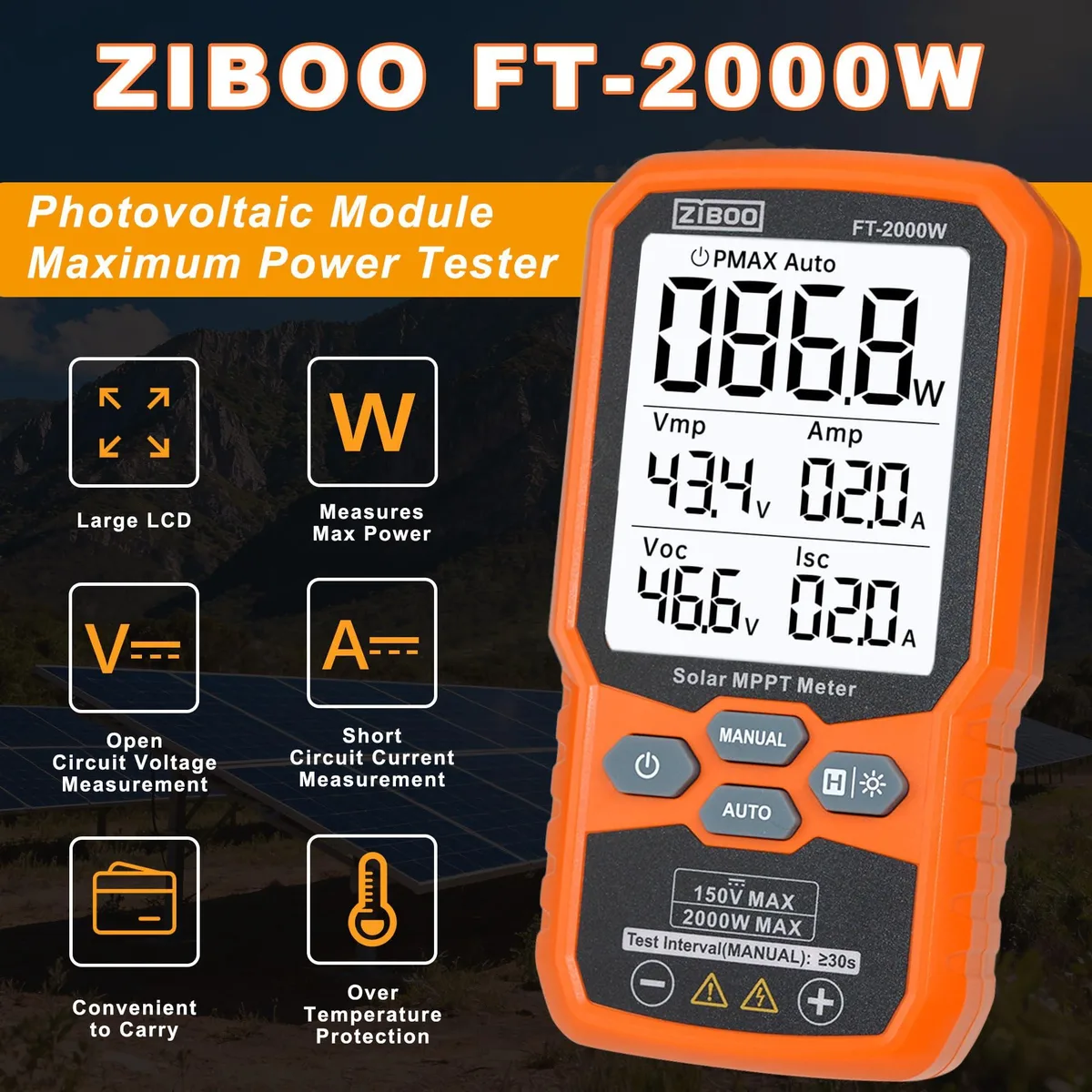

The ZIBOO FT-2000W measures photovoltaic module performance up to 2000W maximum power with ±0.8% accuracy. It captures open-circuit voltage from 12 to 150V and short-circuit current to 35A. The meter suits R&D, production validation and field maintenance engineers who need professional-grade data.

Compatibility Check Before Purchase

Confirm your PV array open-circuit voltage stays within the 12 to 150V range and short-circuit current does not exceed 35A. The unit cannot test series or parallel strings whose combined voltage exceeds the input limit. Ensure the installation environment meets CAT III 1000V or CAT IV 600V safety ratings for the probes.

Backlight Data Hold IP54 Field Ready

A backlit LCD enables clear readings on rooftops or in low-light conditions. Data hold freezes measurements for recording. Auto-ranging simplifies operation while IP54 dust and water resistance plus low-power auto-off support reliable outdoor use. Double-insulated probes comply with IEC/EN 61010.

Highlights

  • Measures up to 2000W peak power with ±0.8% precision
  • Tests Voc 12-150V and Isc 35A for panel validation
  • CAT III 1000V / CAT IV 600V safety with double-insulated probes
  • Backlit LCD plus data hold for clear rooftop readings
  • IP54 rated, auto-ranging and auto-off for field reliability

Specifications

BrandZIBOO
ModelFT-2000W
TypeFT-2000W
ColorFT-2000W
Dimensions5.51 in x 2.99 in x 1.26 in
Weight0.508 kilograms

Questions about this item

What does the FT-2000W include and do I need to buy probes separately?

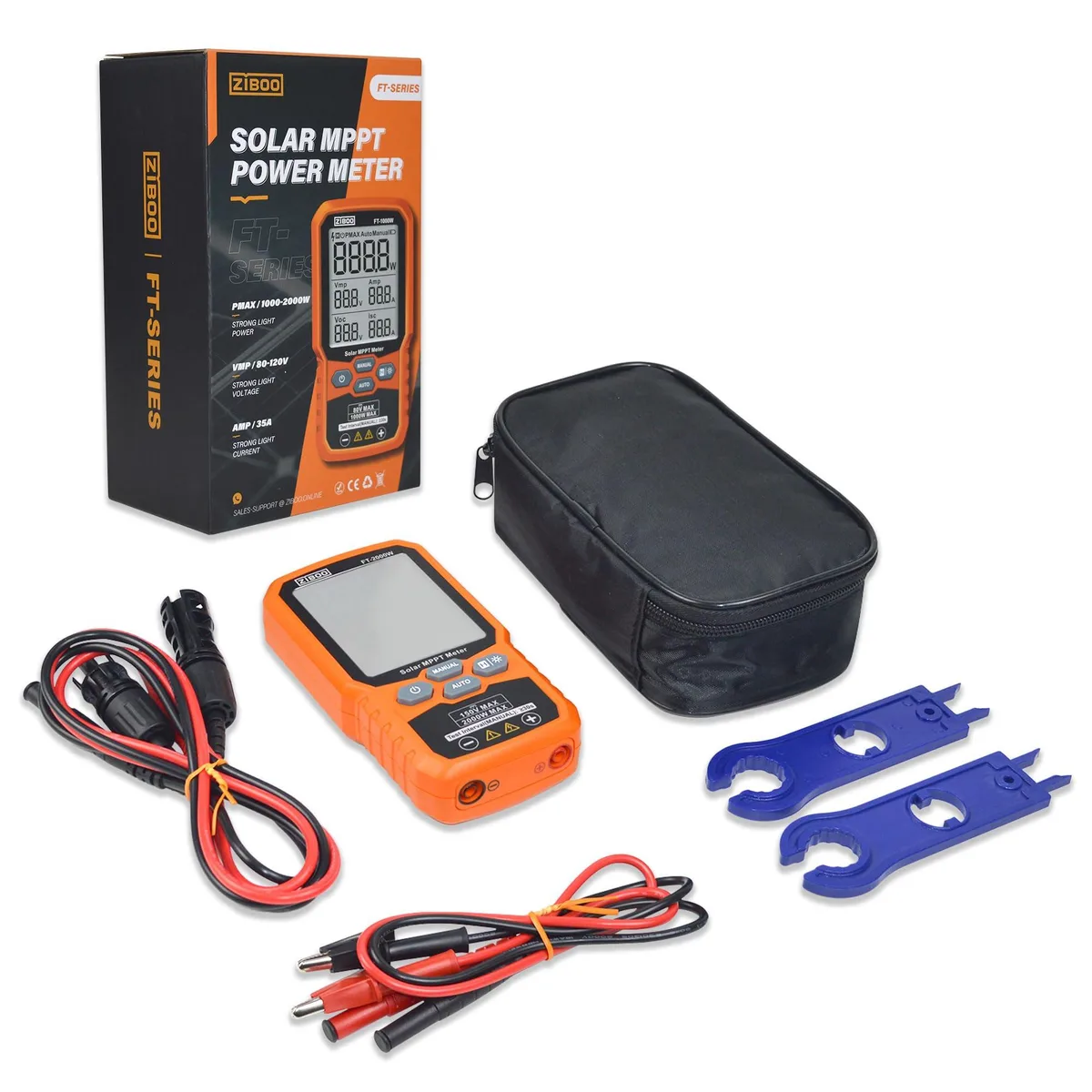

The tester ships with double-insulated probes that meet CAT III 1000V and CAT IV 600V safety ratings, so no separate probe purchase is required for standard PV array measurements.

Should I choose the 150 V or 35 A version for my installation?

The FT-2000W handles both 150 V open-circuit voltage and 35 A short-circuit current simultaneously; there is no separate voltage-only or current-only model to select.

What does the 2000 W rating mean when I am testing panels on a roof?

It indicates the maximum power (Pmax) the meter can measure, with ±0.8 % accuracy, letting you verify panel output up to 2000 W under real irradiance conditions.
