Zebra

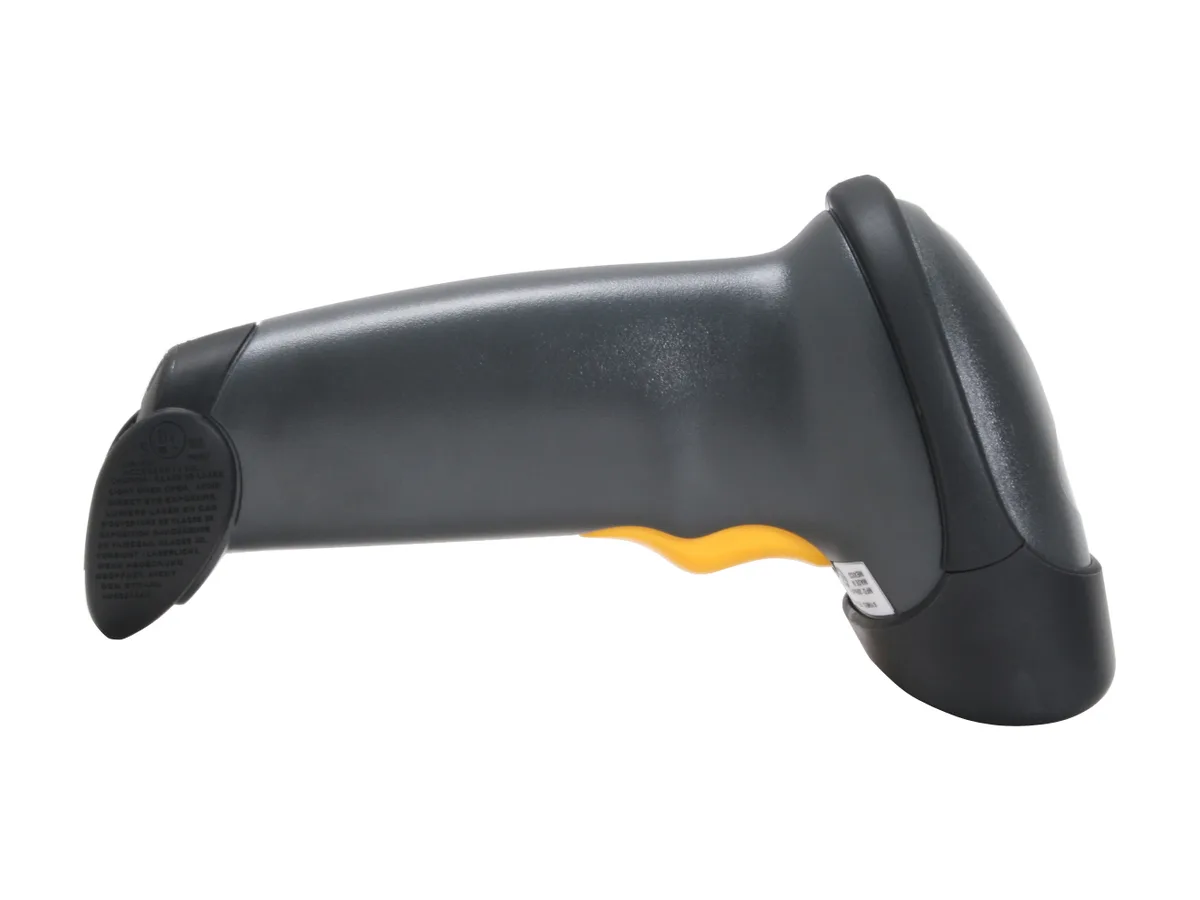

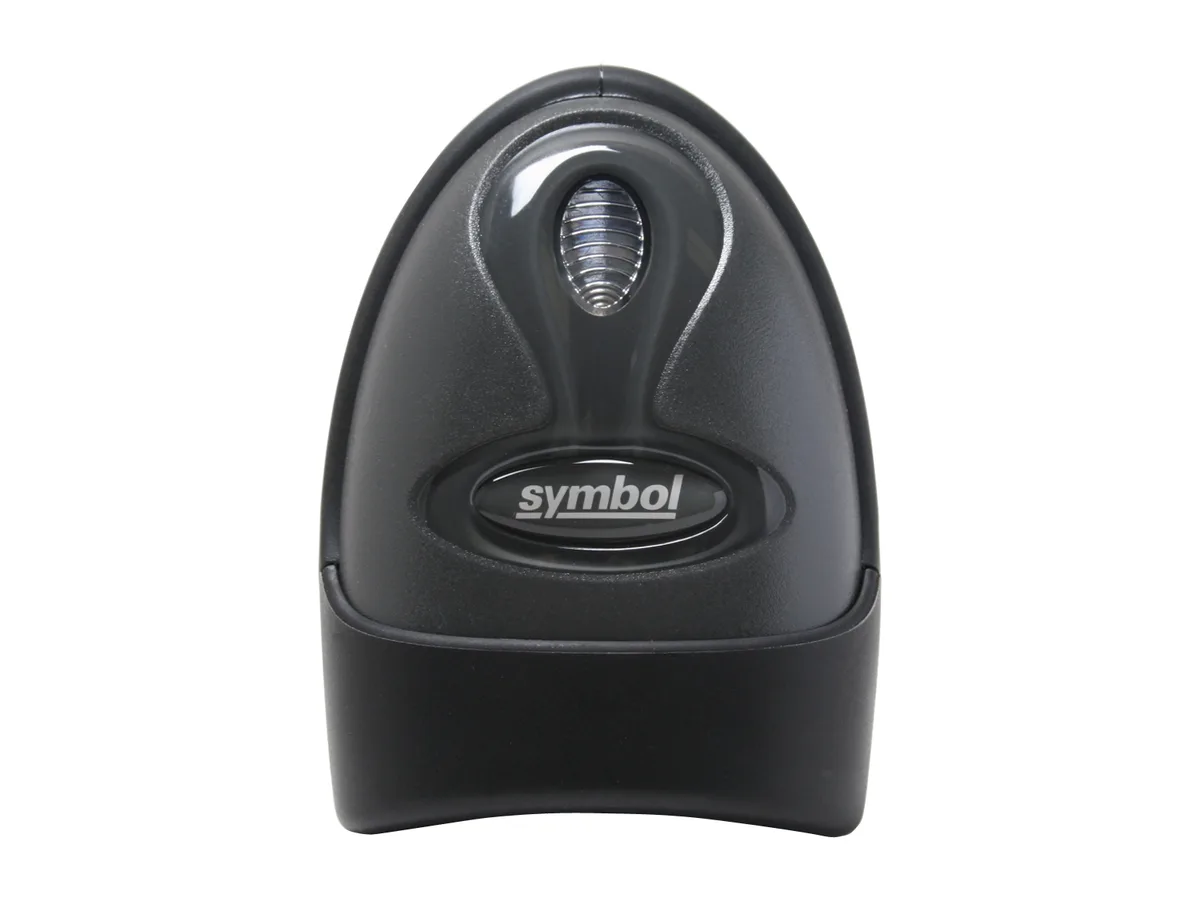

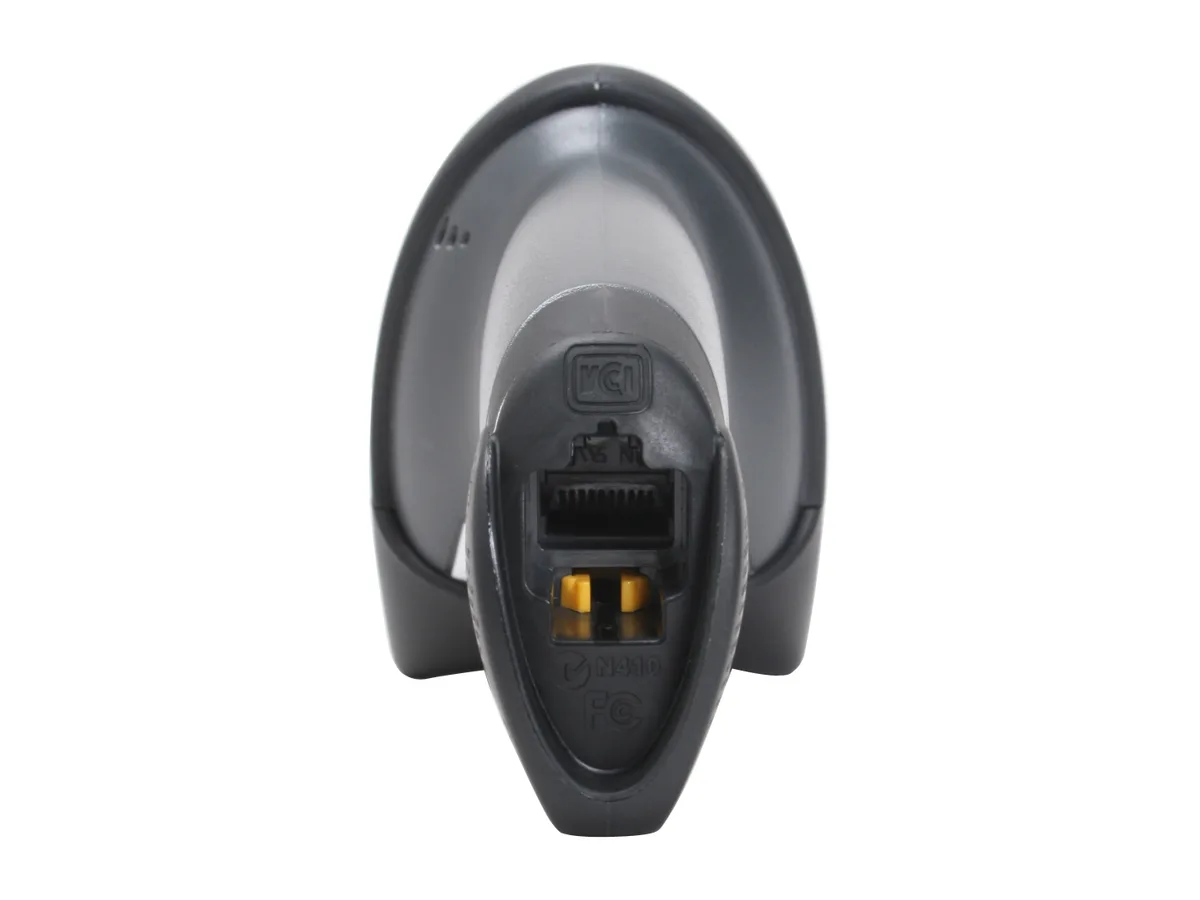

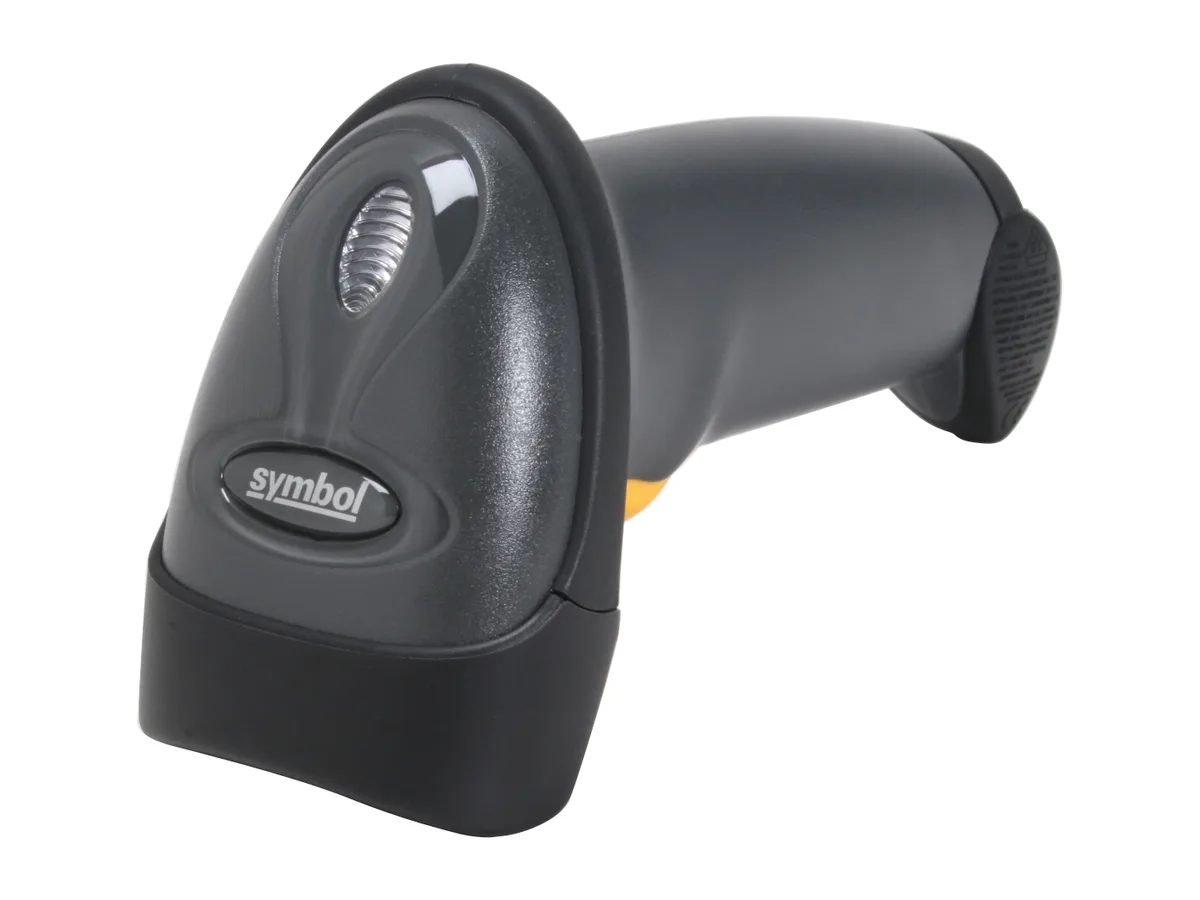

Zebra LS2208-SR20007R-NA corded handheld 1D laser barcode scanner
A corded handheld 1D laser scanner reads bar codes from contact to 17 inches with 100 scans per second and includes a USB cable and stand
- Form FactorHandheld
- ConnectivityCorded
- Scan Engine1D Laser
- Included CablesUSB Cable w/ Stand
- Interfaces SupportedUSB, RS232, Keyboard Wedge, IBM 468x/9x
- Light Source650 nm Laser Diode Class 2
- Fast, reliable scanning at 100 scans per second with 1D laser engine
- Durable single-board construction withstands 5 ft drops and daily use
- Wide working range from contact to 17 in for flexible checkout scanning
- Multiple on-board interfaces including USB, RS232, Keyboard Wedge and IBM 468x/9x
- Hands-free Intellistand enables presentation scanning and automatic mode switching
Corded 1D Laser Barcode Scanner
The Zebra Symbol LS2208 is a corded handheld scanner built for retail, healthcare, education and government checkout lines. Its ergonomic, lightweight design reduces user fatigue during all-day use. The scanner connects via USB, RS232, Keyboard Wedge or IBM 468x/9x interfaces for broad host compatibility. It includes a USB cable and Intellistand for hands-free presentation scanning.
Wide Working Range and Symbology Support
The 650 nm Class 2 laser reads 1D codes from near contact up to 17 inches (43 cm), capturing 13 mil UPC labels at 25 inches. It decodes major symbologies including Code 39, Code 128, UPC/EAN, GS1 DataBar and more at 100 scans per second. Minimum element resolution reaches 3.0 mil for high-density barcodes. The scanner operates on 4.5 to 5.5 VDC host power with 175 mA typical current draw.
Single-Board Durability and Plug-and-Play Setup
Patented single-board construction and a frictionless liquid polymer scan element meet stringent 5 ft drop and tumble specifications. A scratch-resistant tempered glass exit window protects the optics for continuous daily operation. Support for 97 international keyboards enables immediate deployment without host software changes. The Intellistand automatically switches between handheld and hands-free modes when the scanner is docked.
Highlights
- Fast, reliable scanning at 100 scans per second with 1D laser engine
- Durable single-board construction withstands 5 ft drops and daily use
- Wide working range from contact to 17 in for flexible checkout scanning
- Multiple on-board interfaces including USB, RS232, Keyboard Wedge and IBM 468x/9x
- Hands-free Intellistand enables presentation scanning and automatic mode switching
Specifications
| Brand | Zebra |
|---|---|
| Series | Symbol |
| Model | LS2208 |
| Part Number | LS2208-SR20007R-NA |
| Form Factor | Handheld |
| Connectivity | Corded |
| Scan Engine | 1D Laser |
| Included Cables | USB Cable w/ Stand |
| Interfaces Supported | USB, RS232, Keyboard Wedge, IBM 468x/9x |
| Light Source | 650 nm Laser Diode Class 2 |
| Resolution | Minimum Element Resolution Code 39: 3.0 mil |
| Pitch | +/- 65 degree |
| Roll | +/- 60 degree |
| Yaw | +/- 10 degree |
| Scan Speed | 100 scans per second typical |
| Print Contrast Ratio (Minimum) | 20% minimum reflective difference |
| Decoding Capability | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma). Refer to Product Reference Guide for complete list of symbologies |
| Input Voltage | 4.5 to 5.5 VDC host powered; 4.5 to 5.5 VDC external power supply |
| Current | Operating: 175 mA (typical) Standby: 90 mA (typical) |
| Color | Twilight Black |
| Dimensions | 6.00" x 2.50" x 3.34" |
| Weight | 0.33 lb. |
| Features | Scanning Technology Code 39, Code 128, Code 93, Codabar/ NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma). Refer to Product Reference Guide for complete list of symbologies. Ambient Light Immunity 0 to 8,000 Foot Candles / 0 to 86,080 Lux; tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions; Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED4: 450 Ft. Candles (4,844 Lux) Sunlight: 8000 Ft. Candles (86,111 Lux) Electrostatic Discharge (ESD) ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV |
| Drop | Unit functions normally after repeated 5.00 ft. / 1.50 m drops to concrete |
| Ruggedness | General Purpose |
| Shipping weight | 0.54 kg |
| Package size | 241 × 146 × 99 mm |
Questions about this item
Will the LS2208 work with my existing RS232 POS terminal?
Yes, the scanner supports RS232 along with USB, Keyboard Wedge and IBM 468x/9x interfaces, so it can connect to legacy terminals without an adapter.
How do I verify the LS2208 is scanning correctly after plugging it in?
The 650 nm Class 2 laser emits a visible aiming line; a successful read produces a single beep and the green LED flashes, confirming the 100 scans-per-second engine decoded the symbol.
Does the LS2208-SR20007R-NA include the stand and cable, or must I buy them separately?
The kit ships with a USB cable and the Intellistand in the box, so no extra accessories are required for handheld or presentation scanning.
