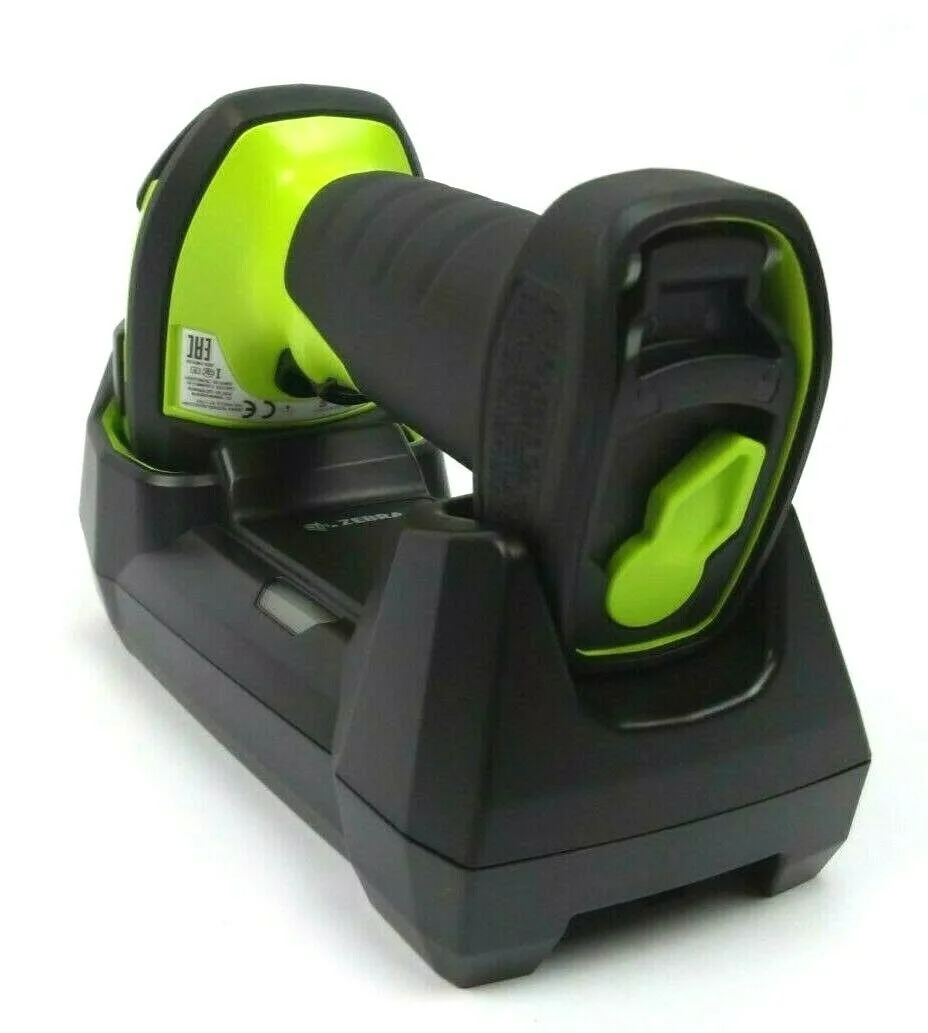

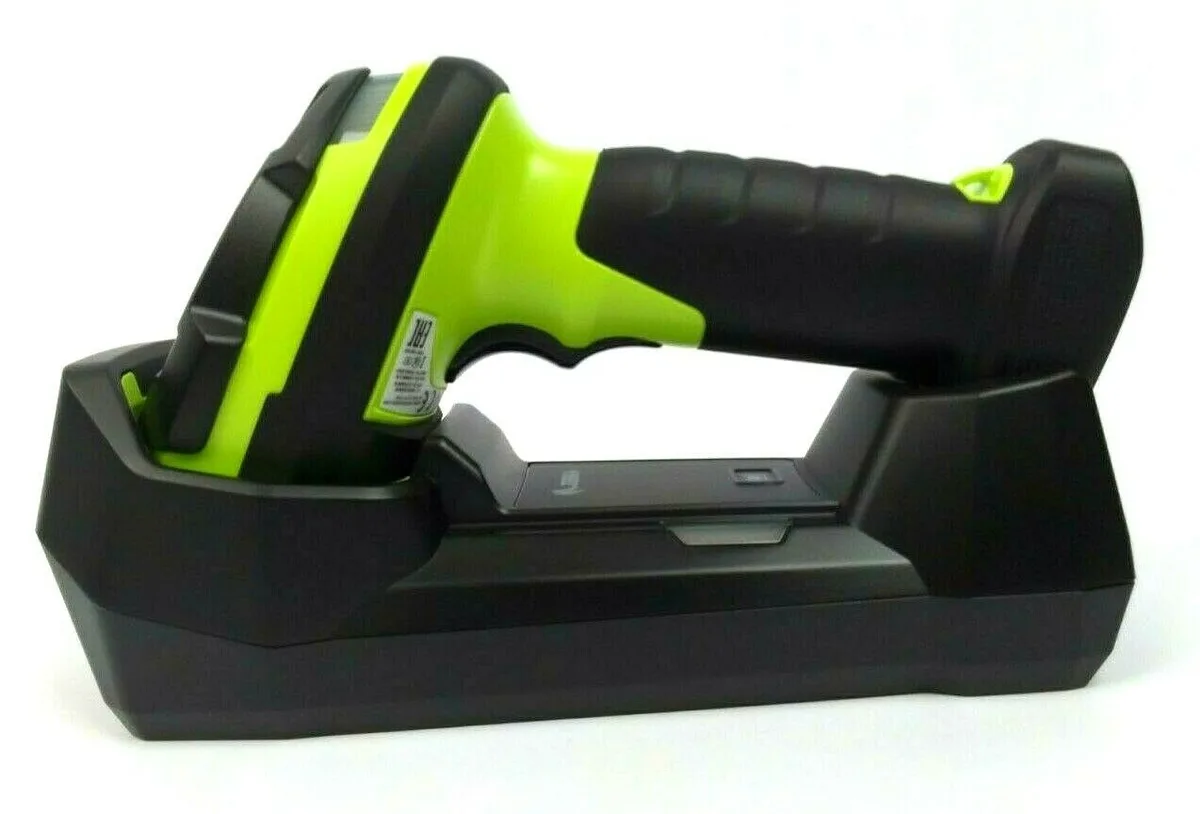

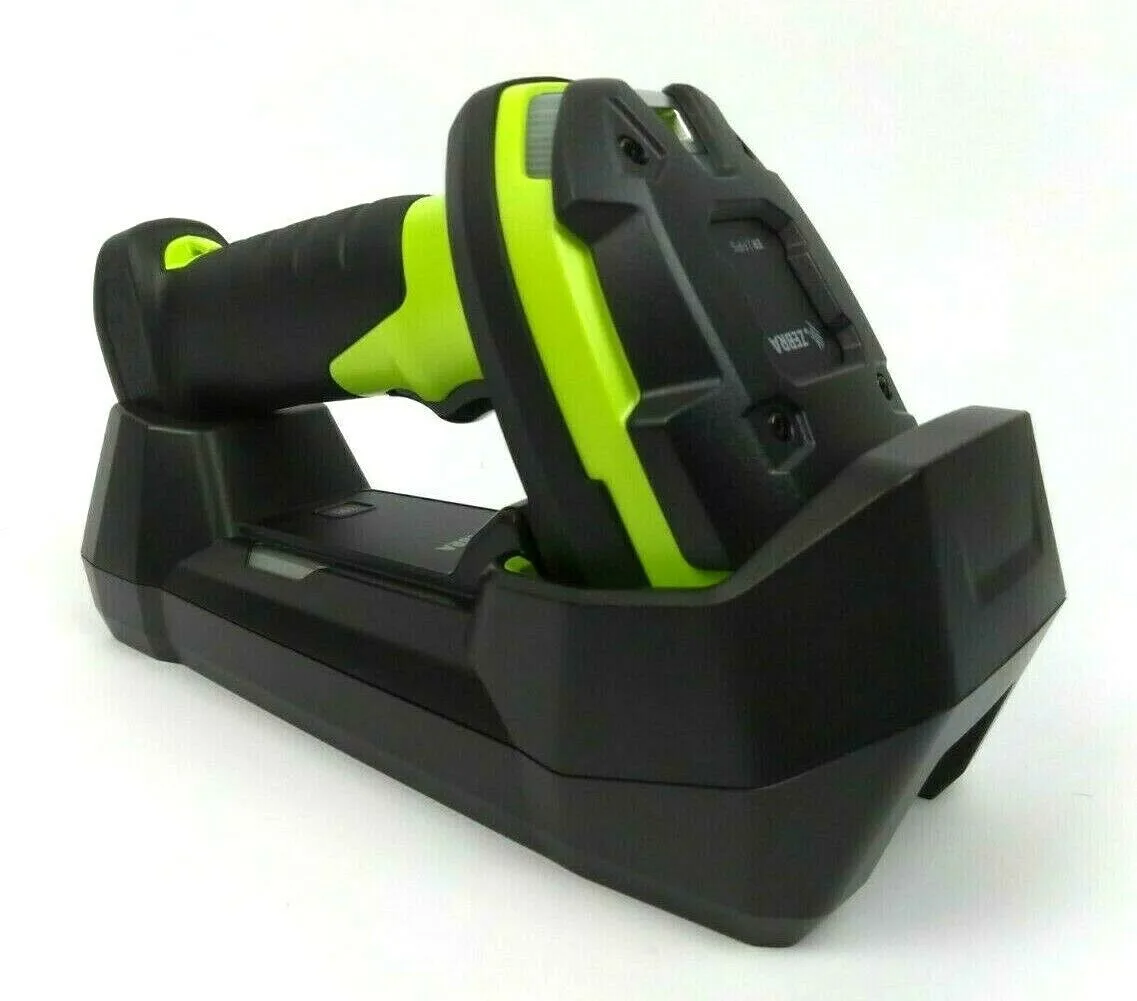

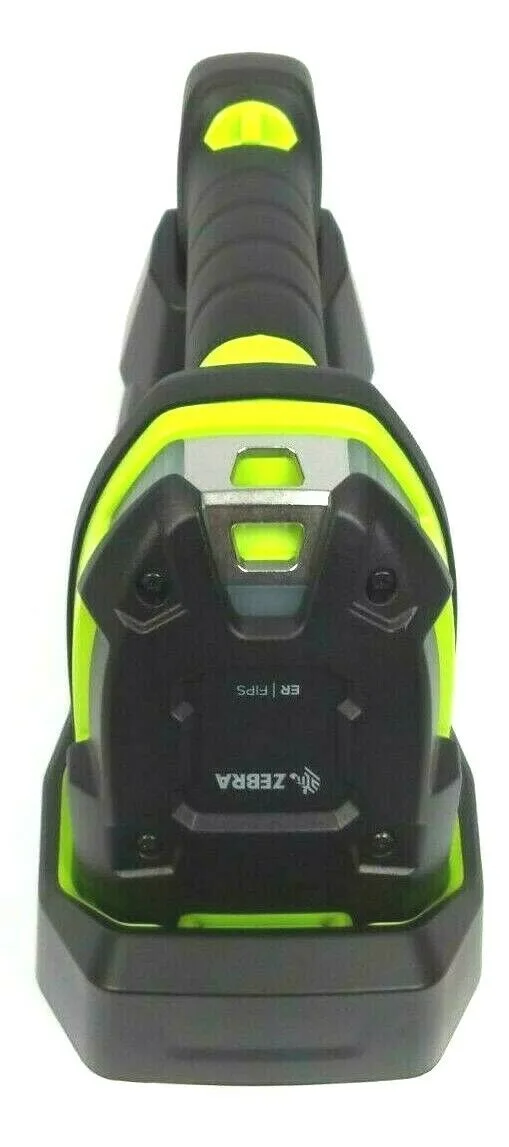

Green rugged handheld barcode scanner with extended range imager

Zebra

Zebra DS3678-ER2F003VZWW barcode scanner

SKU CH-YYHZ-F1M5M MPN DS3678-ER2F003VZWW

Cordless ultra-rugged handheld 2D area imager scans 1D and 2D codes from near contact to 1.5 m with 30 percent more working range

  • Form FactorHandheld
  • ConnectivityCordless
  • Scan Engine2D Area Imager
  • Included CablesScanner Only - No Cable
  • Pitch±60 degree
  • Roll±360 degree
  • Captures 1D and 2D codes from near contact to 1.5 m away
  • Withstands harsh warehouse and manufacturing environments with ultra-rugged construction
  • Cordless freedom powered by a 3100 mAh PowerPrecision+ rechargeable battery
  • Scans damaged, dirty or poorly printed barcodes under shrinkwrap
  • Omnidirectional ±60° pitch, ±360° roll and ±60° yaw for flexible aiming

Ultra-Rugged Handheld Scanner

The Zebra DS3678-ER2F003VZWW is a cordless 2D area imager built for warehouse and manufacturing workers who need reliable barcode capture in harsh conditions. Its ultra-rugged housing withstands repeated drops and exposure to dust and moisture. The scanner reads 1D and 2D codes from near contact up to 1.5 m away. A 3100 mAh PowerPrecision+ battery supports full-shift operation.

Green Industrial Housing

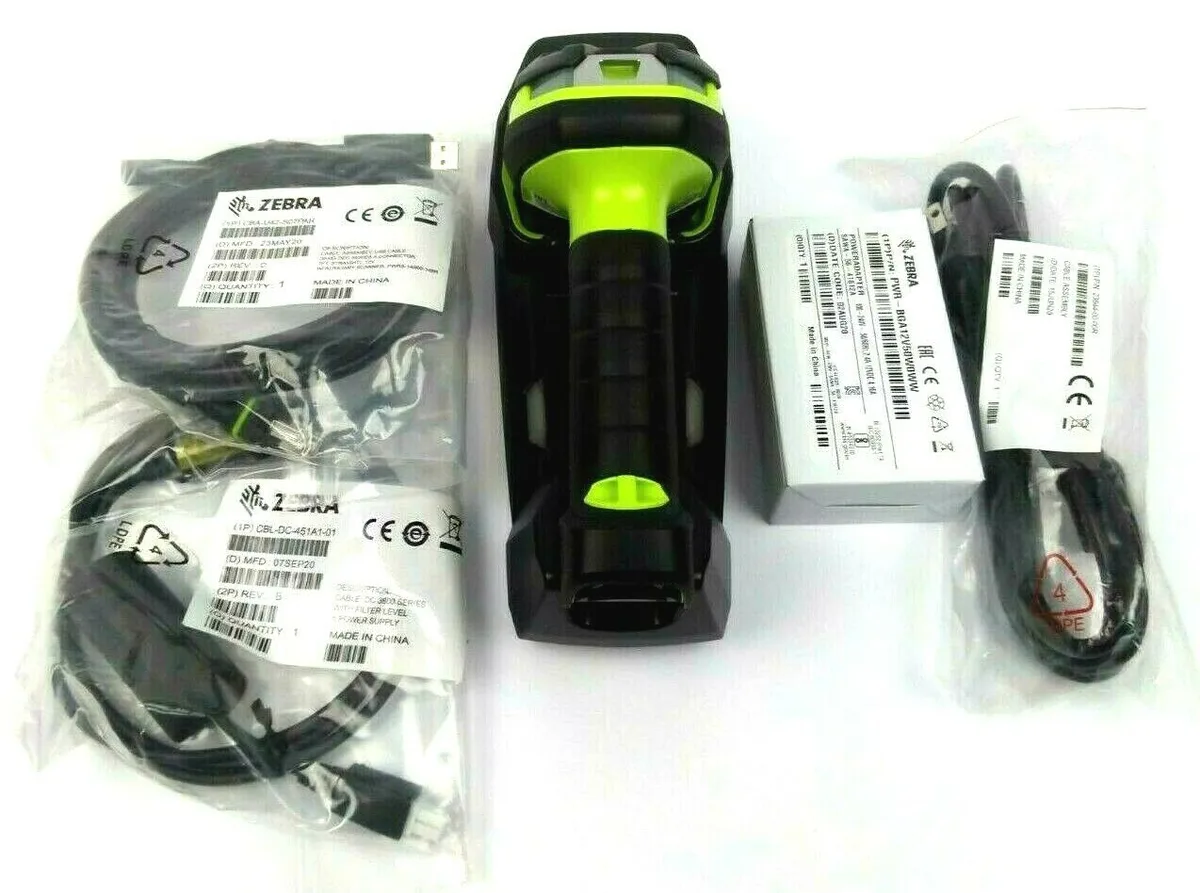

The green handheld unit weighs .90 lb and measures 7.30 x 3.00 x 5.60 inches for comfortable all-day grip. Cordless connectivity removes cable snags on forklifts or conveyor lines. Pitch, roll and yaw tolerances of ±60°, ±360° and ±60° allow fast scanning at awkward angles. Minimum 15% print contrast ratio lets the imager read damaged, dirty or shrink-wrapped labels. Cradle, cables and power supply are sold separately.

Extended Range Cordless Upgrade

This model replaces tethered scanners when operators need freedom of movement across large aisles or loading docks. The jump is worth it if existing devices cannot read codes at 1.5 m or fail on poorly printed barcodes. It supports host power from 4.5 to 5.5 VDC and external supply from 11.4 to 12.6 VDC. Buyers needing an all-in-one kit with cradle and cables should look elsewhere.

Highlights

  • Captures 1D and 2D codes from near contact to 1.5 m away
  • Withstands harsh warehouse and manufacturing environments with ultra-rugged construction
  • Cordless freedom powered by a 3100 mAh PowerPrecision+ rechargeable battery
  • Scans damaged, dirty or poorly printed barcodes under shrinkwrap
  • Omnidirectional ±60° pitch, ±360° roll and ±60° yaw for flexible aiming

Specifications

BrandZebra
ModelDS3678
Part NumberDS3678-ER2F003VZWW
Form FactorHandheld
ConnectivityCordless
Scan Engine2D Area Imager
Included CablesScanner Only - No Cable
Pitch±60 degree
Roll±360 degree
Yaw±60 degree
Print Contrast Ratio (Minimum)15% minimum reflective difference
Decoding Capability1D
Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)
2D
PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes
BatteryPowerPrecision+ 3100 mAh Li-Ion rechargeable battery
Input VoltageHost powered: 4.5 VDC min., 5.5 VDC max.
External power supply: 11.4 VDC min., 12.6 VDC max.
ColorGreen
Dimensions7.30" x 3.00" x 5.60"
Weight0.90 lb.
RuggednessRugged
Shipping weight0.91 kg
Package size305 × 229 × 102 mm

Questions about this item

What Bluetooth version does the DS3678-ER2F003VZWW use for cordless connectivity?

The scanner uses Bluetooth for cordless operation, but the specific version is not detailed in the product specifications.

What are the physical dimensions required to mount or holster the DS3678-ER2F003VZWW?

The unit measures 7.30 inches by 3.00 inches by 5.60 inches and weighs 0.90 lb, requiring a holster or mount sized for those dimensions.

How is the DS3678-ER2F003VZWW installed, and what step is commonly missed?

Pair the scanner to a compatible cradle via Bluetooth; the step often missed is ordering the cradle, cables, and power supply separately as they are not included.
