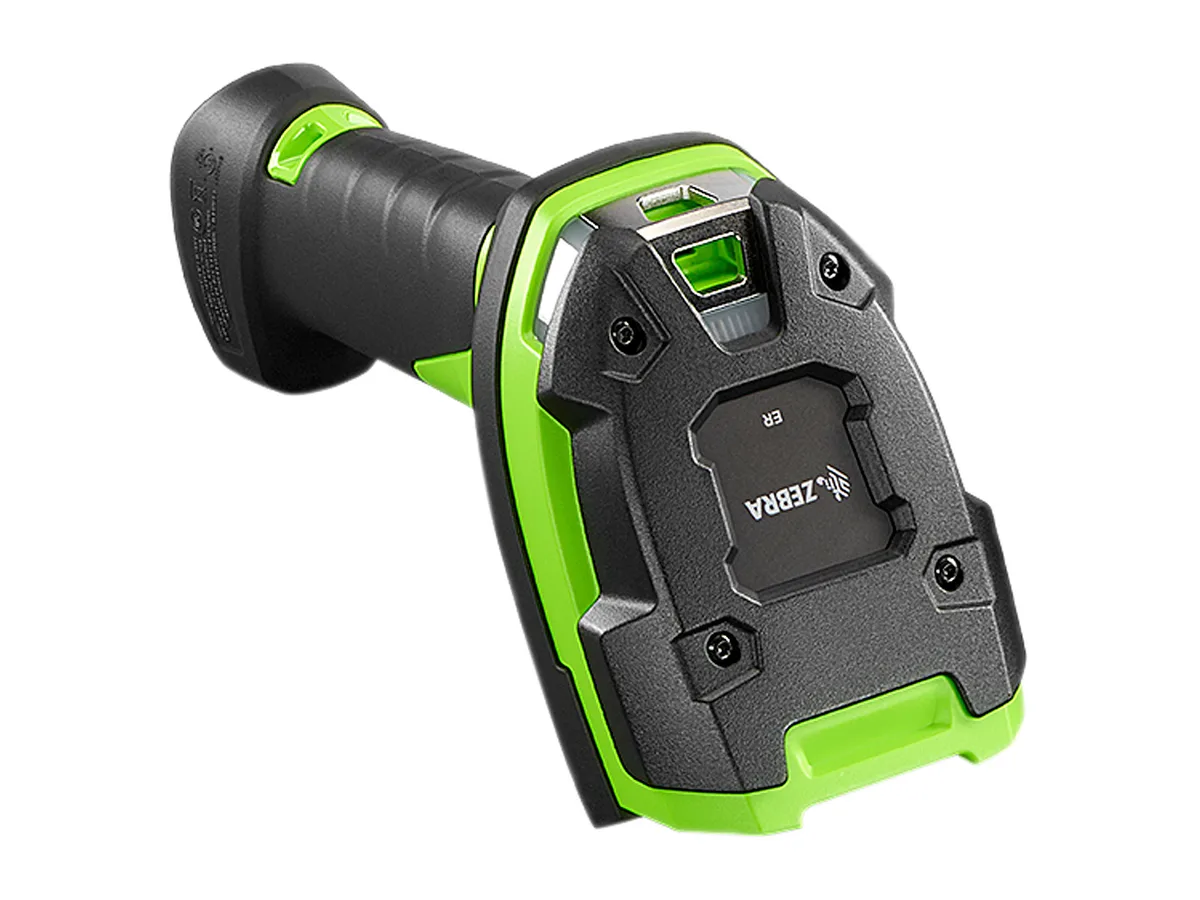

Green ultra-rugged handheld corded barcode scanner with imager, cable sold separately

Zebra

Zebra DS3608-HP20003VZWW DS3608-SR corded barcode scanner

SKU CH-9SKG-ZDVCP MPN DS3608-HP20003VZWW

Ultra-rugged corded handheld scanner reads 1D and 2D barcodes from near contact to 1.5 m, withstands 8.0 ft drops, and operates on host power

  • Form FactorHandheld
  • ConnectivityCorded
  • Scan EngineHigh Performance 1D/2D Imager
  • Included CablesScanner Only - No Cable
  • Interfaces SupportedUSB, RS-232, Keyboard Wedge
  • Pitch±60 degree
  • Ultra-rugged build survives multiple 8.0 ft drops to concrete
  • High-performance imager reads 1D and 2D codes from near contact to 1.5 m
  • 30 percent more working range captures distant barcodes faster
  • Vibration motor confirms good scans in noisy environments
  • Corded USB, RS-232 and Keyboard Wedge interfaces ensure reliable host power

Ultra-Rugged Handheld Barcode Scanner

The Zebra DS3608-HP20003VZWW is a corded handheld scanner built for warehouse and manufacturing environments. Its high-performance imager reads 1D and 2D codes from near contact up to 1.5 m away. The unit withstands multiple 8.0 ft drops to concrete and operates in extreme conditions. It is designed for high-volume scanning workflows requiring maximum durability.

Verify Host Interface and Cable Requirements

This scanner ships without a cable; a compatible USB, RS-232 or Keyboard Wedge cable must be sourced separately. Confirm the host system supplies 4.5 to 5.5 VDC for host-powered operation or 11.4 to 12.6 VDC if using external power. Typical operating current is 340 mA with 100 mA standby. Ensure the chosen interface matches your POS or terminal port.

Industrial Green Housing With Vibration Feedback

The green enclosure measures 7.30 by 3.00 by 5.20 inches and weighs .67 lb, offering a secure grip for all-day use. A built-in vibration motor provides silent scan confirmation in noisy areas. Pitch and yaw tolerance of ±60 degree plus full 360 degree roll allow flexible aiming angles. Decoding requires only 15% minimum print contrast ratio.

Highlights

  • Ultra-rugged build survives multiple 8.0 ft drops to concrete
  • High-performance imager reads 1D and 2D codes from near contact to 1.5 m
  • 30 percent more working range captures distant barcodes faster
  • Vibration motor confirms good scans in noisy environments
  • Corded USB, RS-232 and Keyboard Wedge interfaces ensure reliable host power

Specifications

BrandZebra
ModelDS3608
Part NumberDS3608-HP20003VZWW
Form FactorHandheld
ConnectivityCorded
Scan EngineHigh Performance 1D/2D Imager
Included CablesScanner Only - No Cable
Interfaces SupportedUSB, RS-232, Keyboard Wedge
Pitch±60 degree
Roll±360 degree
Yaw±60 degree
Print Contrast Ratio (Minimum)15% minimum reflective difference
Decoding Capability1D
Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)
2D
PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes
BatteryPowerPrecision+ 3100 mAh Li-Ion rechargeable battery
Input VoltageHost powered: 4.5 VDC min., 5.5 VDC max.
External power supply: 11.4 VDC min., 12.6 VDC max.
CurrentOperating Current: 340 mA (typical)
Standby Current: 100 mA (typical)
ColorGreen
Dimensions7.30" x 3.00" x 5.20"
Weight0.67 lb.
DropWithstands multiple 8.0 ft. / 2.4 m drops to concrete
RuggednessRugged
Shipping weight1.81 kg
Package size213 × 109 × 91 mm

Questions about this item

Does the DS3608-HP20003VZWW ship with a cable or must I order one separately?

The scanner is sold as a scanner-only unit; a compatible USB, RS-232 or Keyboard Wedge cable must be purchased separately.

Which scan engine variant does this part number use?

This model uses the High Performance 1D/2D imager, providing standard-range capture of all listed 1D and 2D symbologies.

What does the 8.0 ft drop rating mean for daily warehouse use?

The housing survives multiple 8.0 ft drops to concrete, so it withstands repeated falls from forklift height or overhead racks.
