Black rectangular USB cable debugger with plastic housing

Yoetaun

Yoetaun DLC9LP Platform Cable USB 24 Mb/s 5 V 0.07 A

SKU CH-EERG-GS572 MPN DLC9LP

USB JTAG, Slave-Serial and SPI programmer for all Xilinx FPGAs and PROMs at up to 24 Mb/s without external power

  • ColorBlack
  • USB-powered cable eliminates external supply
  • 24 Mb/s sustained FPGA configuration rate
  • Works with every Xilinx FPGA and PROM/CPLD
  • Automatically adapts to 5 V, 3.3 V, 2.5 V, 1.8 V, 1.5 V targets
  • Compatible with ISE 8 through 14.7 and Vivado software

Target FPGA developers

This Yoetaun DLC9LP cable provides a USB link for in-circuit configuration and programming of all Xilinx FPGAs and PROM or CPLD devices. It draws operating power directly from the host USB port so no external supply is needed. The adapter suits engineers working with JTAG, Slave-Serial or SPI programming interfaces.

Voltage compatibility range

The cable automatically senses and adapts to target I/O voltages of 5 V TTL, 3.3 V LVCMOS, 2.5 V, 1.8 V and 1.5 V without manual jumper changes. This wide range lets a single programmer handle boards built on different logic families. Selectable target clock speeds run from 750 kHz up to 24 MHz.

Sustained configuration throughput

A sustained slave-serial FPGA configuration transfer rate of 24 Mb/s is achievable in a Hi-Speed USB environment. The CY7C68013A plus XC2C256 implementation maintains this bandwidth across long bit-streams rather than only in short bursts. Software automatic frequency adjustment keeps the link stable during extended programming sessions.

Highlights

  • USB-powered cable eliminates external supply
  • 24 Mb/s sustained FPGA configuration rate
  • Works with every Xilinx FPGA and PROM/CPLD
  • Automatically adapts to 5 V, 3.3 V, 2.5 V, 1.8 V, 1.5 V targets
  • Compatible with ISE 8 through 14.7 and Vivado software

Specifications

ColorBlack

Questions about this item

What does the 24 Mb/s rate mean when the cable is plugged into a real machine?

It is the sustained slave-serial FPGA configuration transfer rate achievable in a Hi-Speed USB environment.

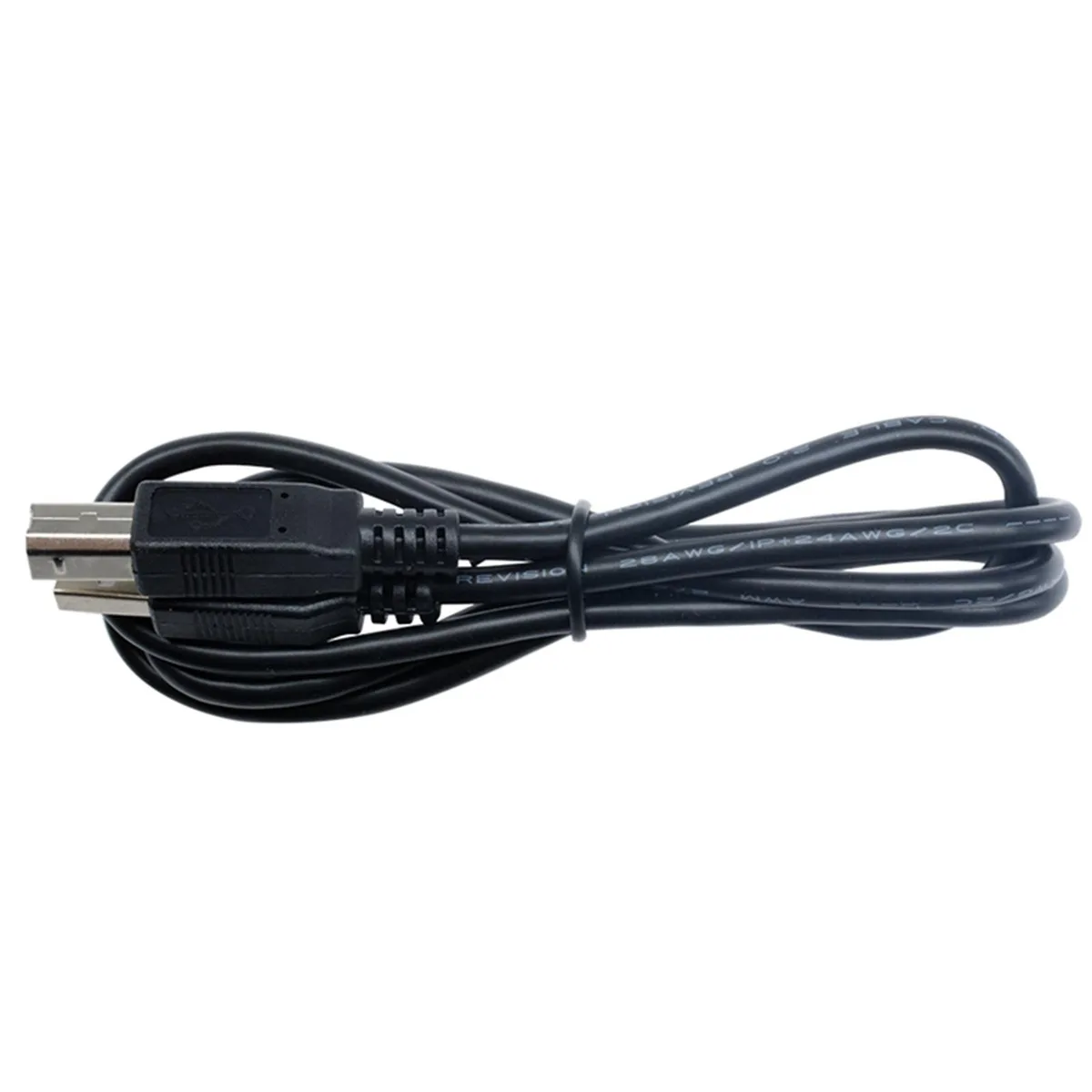

What USB standard does the cable use and what does that limit in practice?

It uses a Hi-Speed USB connection and draws all power from the hub port controller at 5 V 0.07 A with no external supply needed.

What physical space and connectors are required to fit the DLC9LP?

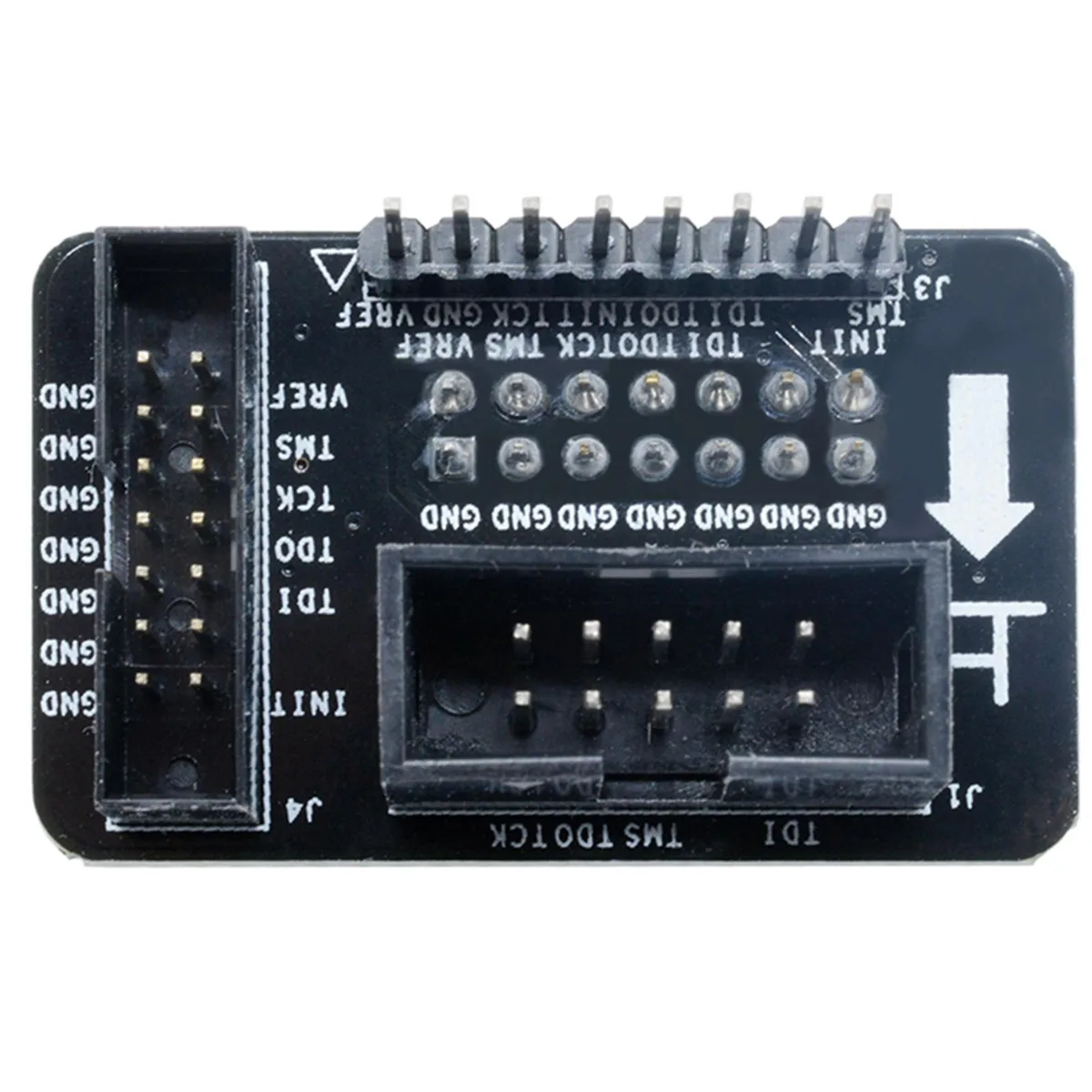

The unit measures approx 110 x 50 x 20 mm and interfaces to targets at 5 V, 3.3 V, 2.5 V, 1.8 V and 1.5 V via its flying-lead header.
