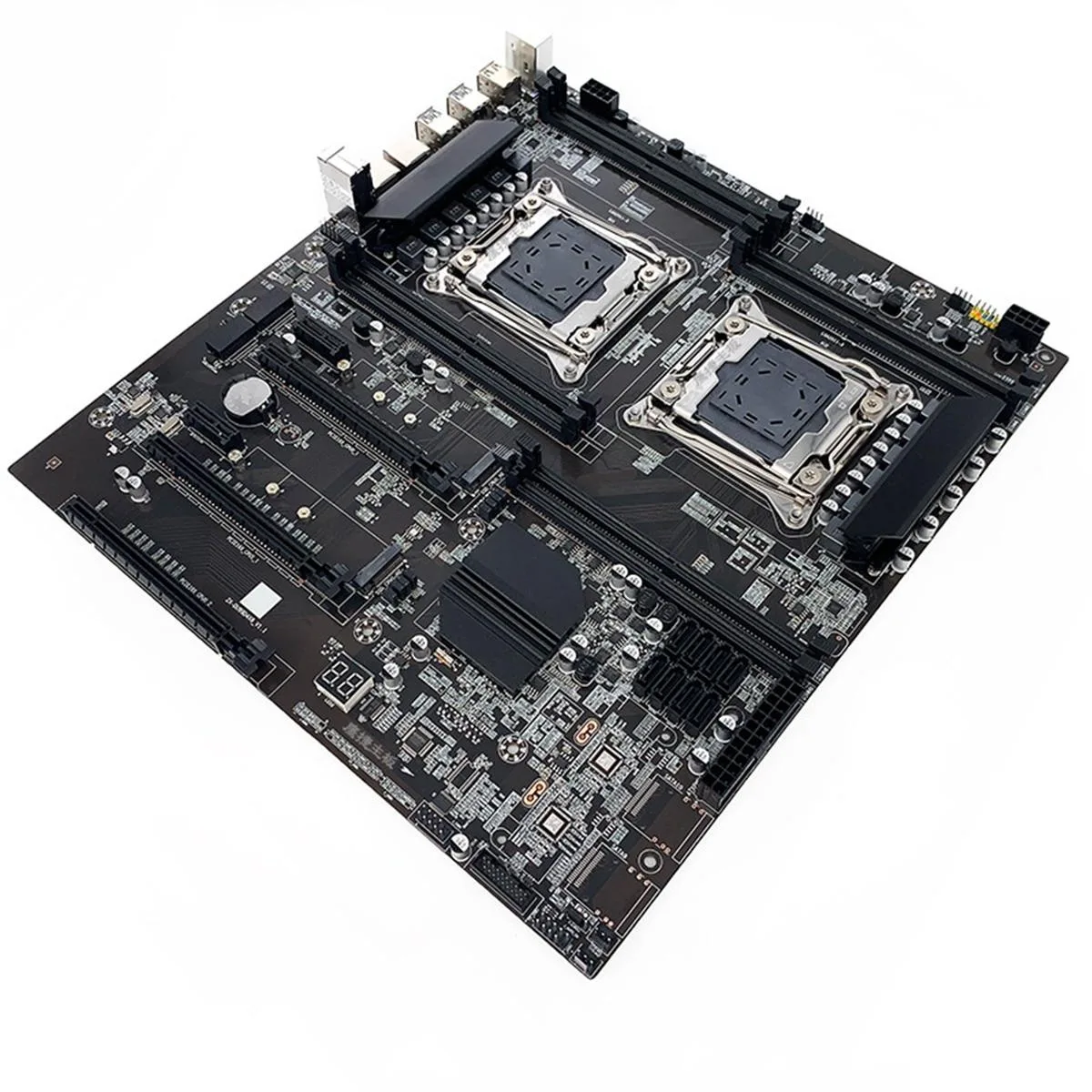

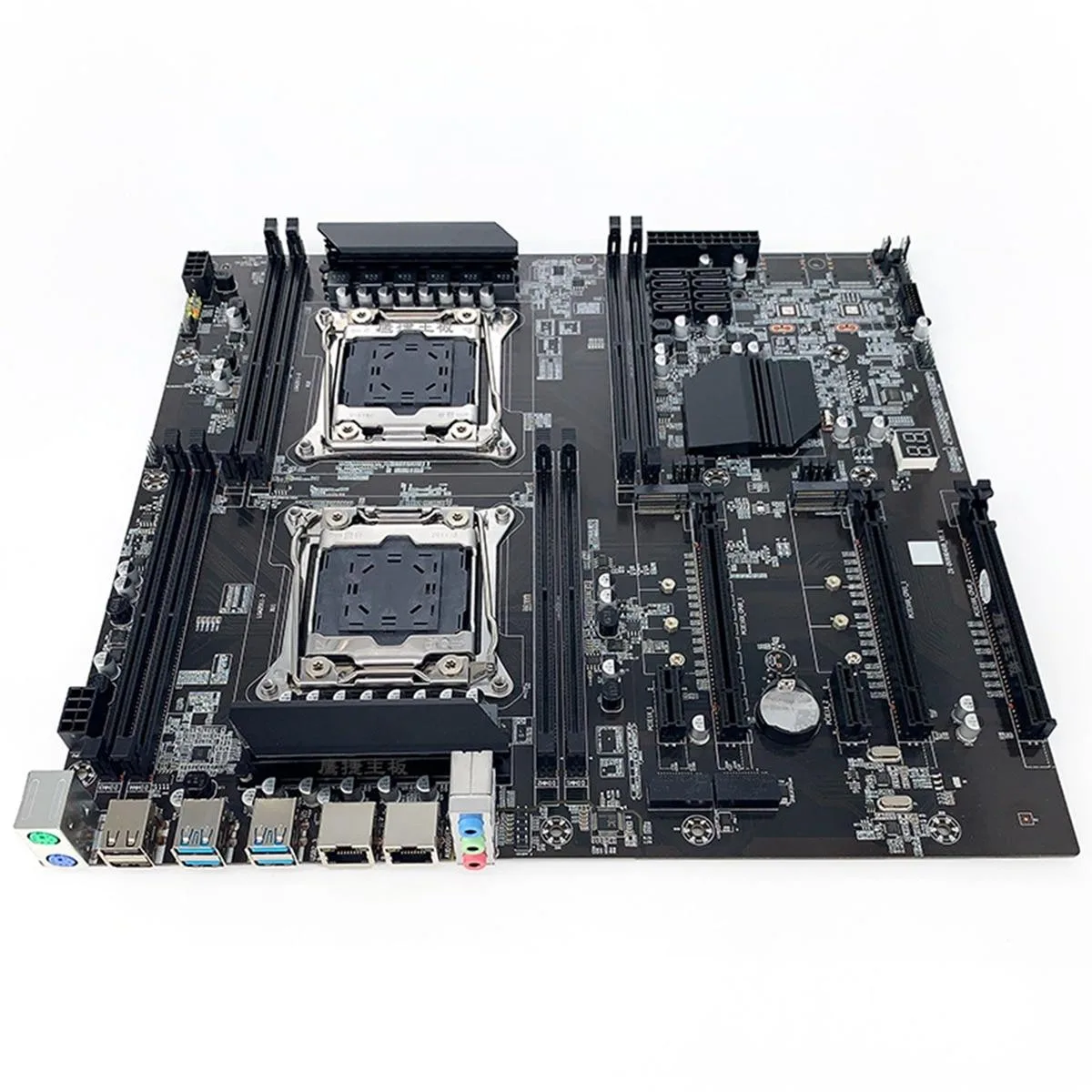

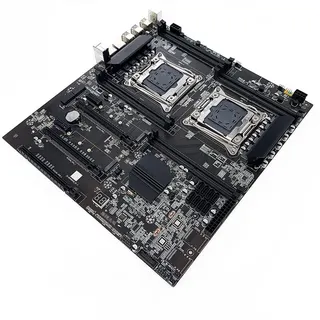

Black E-ATX server motherboard, dual LGA2011-3 sockets, eight DDR4 slots, eight SATA ports, two M.2 NVME, three PCIe x16, two PCIe x1

YINGHUA

YINGHUA X99 Dual-Socket Server Motherboard E5-2620 V4 8 DDR4 ECC Slots

SKU CH-N731-GBEDY

Dual-socket E-ATX board with two E5-2620 V4 CPUs, eight DDR4 ECC slots up to 256 GB, eight SATA 2.0 ports and dual M.2 NVME

  • CPU TypeIntel Atom
  • Dual-socket X99 board fits E-ATX 33 x 31cm cases
  • Two E5-2620 V4 CPUs included with thermal grease
  • Eight DDR4 ECC slots support 2133 2400 2800MHz up to 256GB
  • Dual M.2 NVME plus eight SATA 2.0 ports for storage
  • Twelve-phase power on eight-layer PCB with 24-pin and dual 8-pin connectors

X99 Dual-Socket Motherboard Kit

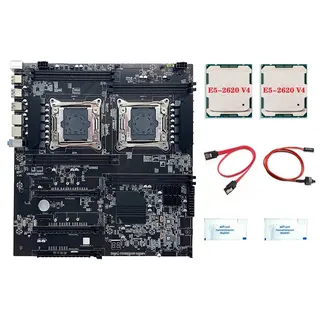

This YINGHUA X99 motherboard ships with two E5-2620 V4 CPUs, thermal grease, a switch cable and a SATA cable. The E-ATX board uses an 8-layer PCB with 12-phase power delivery and fits LGA2011-3 processors in a dual-socket layout.

Eight DDR4 ECC Slots Four-Channel Memory

Eight DDR4 slots run in four-channel mode at 2133, 2400 or 2800 MHz and support up to 256 GB using 32 GB modules. The platform accepts both standard desktop memory and ECC modules for error correction.

Dual M.2 NVME And Eight SATA 2.0 Ports

Storage connectivity provides two M.2 NVME interfaces and eight SATA 2.0 ports for drive arrays. Builders needing SATA 3.0 speeds or more than two NVME slots should consider other options.

Highlights

  • Dual-socket X99 board fits E-ATX 33 x 31cm cases
  • Two E5-2620 V4 CPUs included with thermal grease
  • Eight DDR4 ECC slots support 2133 2400 2800MHz up to 256GB
  • Dual M.2 NVME plus eight SATA 2.0 ports for storage
  • Twelve-phase power on eight-layer PCB with 24-pin and dual 8-pin connectors

Specifications

CPU TypeIntel Atom

Questions about this item

How can I confirm the dual E5-2620 V4 CPUs and eight DDR4 ECC modules are running correctly after assembly?

Enter the BIOS to verify both LGA2011-3 sockets show E5-2620 V4, all eight DDR4 slots report 2133/2400/2800MHz and total capacity up to 256GB, and the two M.2 NVME drives plus eight SATA 2.0 ports are detected.

What accessories are included and what must I source separately for a complete build?

The package supplies the X99 dual-socket board, two E5-2620 V4 processors, two thermal grease tubes, a switch cable and a SATA cable; you must add DDR4 ECC or non-ECC memory, M.2 NVME or SATA storage, a GPU for the PCI-E x16 slots, a 24-pin plus 8-pin PSU and a chassis.

Which memory configuration should I choose for the four-channel 256GB limit?

Populate all eight DDR4 slots with 32GB modules at 2133, 2400 or 2800MHz to reach the 256GB maximum; fewer or smaller DIMMs will work but reduce total capacity and four-channel bandwidth.
